Home > Security & Protection > Access Control System > Access Control Card Reader > RFID 13.56MHz Smart Card Read Module

RFID 13.56MHz Smart Card Read Module

Name: RFID 13.56MHz Smart Card Read Module
Brand: Pegasus, Pongee
SKU: 104852447

RFID 13.56MHz Smart Card Read Module thumbnail-1

RFID 13.56MHz Smart Card Read Module thumbnail-2

RFID 13.56MHz Smart Card Read Module photo-1

RFID 13.56MHz Smart Card Read Module photo-2

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Taiwan, China

Brand Name:

Pegasus, Pongee

Model Number:

PIMF-18SN / PIMF-18SN/U / PIMF-HSN

Contact Supplier Request Quote Chat Now

Pongee Industries Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Keelung Taiwan

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Taiwan, China

Brand Name Pegasus, Pongee

Model Number PIMF-18SN / PIMF-18SN/U / PIMF-HSN

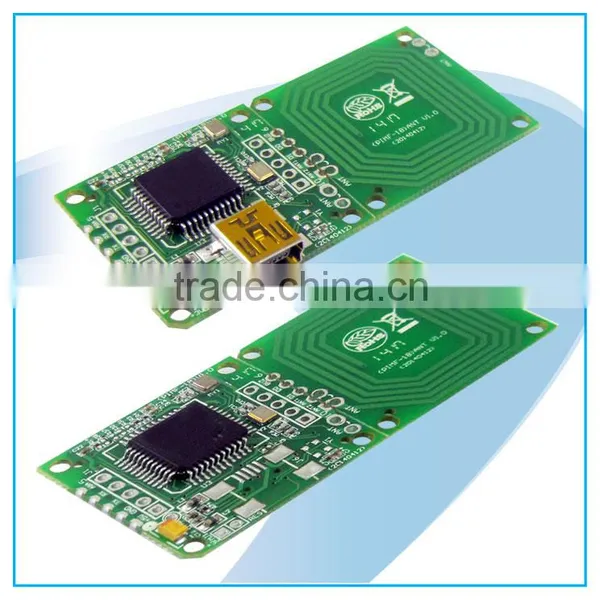

RFID 13.56MHz smart card read module

Introduction

PIMF-18 & PIMF-H (with ABS enclosure) is 13.56MHz UID reading moducle which supports Wiegand 26/34 bits, USB & UART output.Only requests DC4.5~5.4V input, USB type module is power supplied via USB cable.Compact design with mounting holes suitable for various integrations such as portable products.

We provide complete software/Hardware support and shorten schedule of RFID product development, OEM/ODM service is available.

Features

l Support ISO 14443A(UID)

l Support Wiegand 26/34 bits,USB,UART Output.

l Antenna can be replaced upon request

l Supply firmware modification accords to request of special function

l High speed data transfer and high integrity

l Comply with ROHS

l With fixed holes around the corner.

Specification

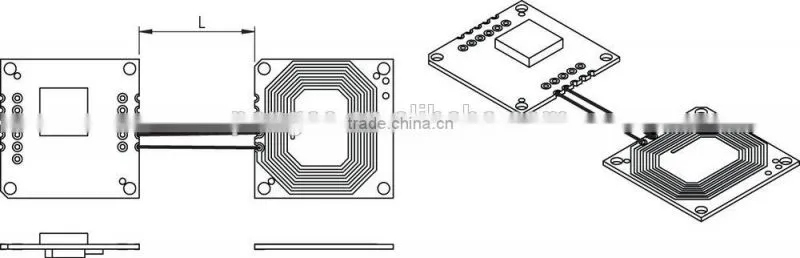

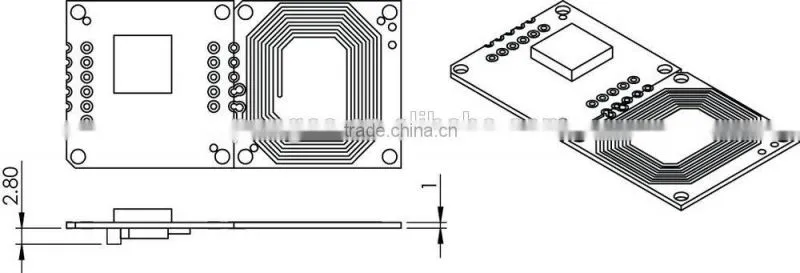

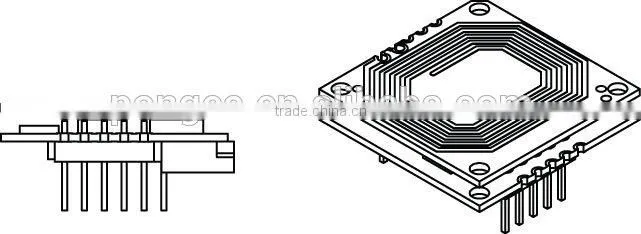

Appearance
Model No.		PIMF-18SN		PIMF-18SN/U	PIMF-HSN
RFID frequency		13.56MHz
Applicable cards		13.56MHz S50 / S70, Ultra Light or compatible
Readingrange	Card (T:0.8mm)	3 ±1 cm
	Tag	2 ±1 cm
Output format		Wiegand 26/34 bits, UART	USB		Wiegand 26/34 bits, UART
Power input		5V DC±10%	5V DC±10%		5V DC±10%
Transmission spec.		9,600 bps N, 8, 1
Standby / Working current		50mA±10% @5V DC / 46mA±10% @ 5V DC
Material		PCB only	PCB only		ABS

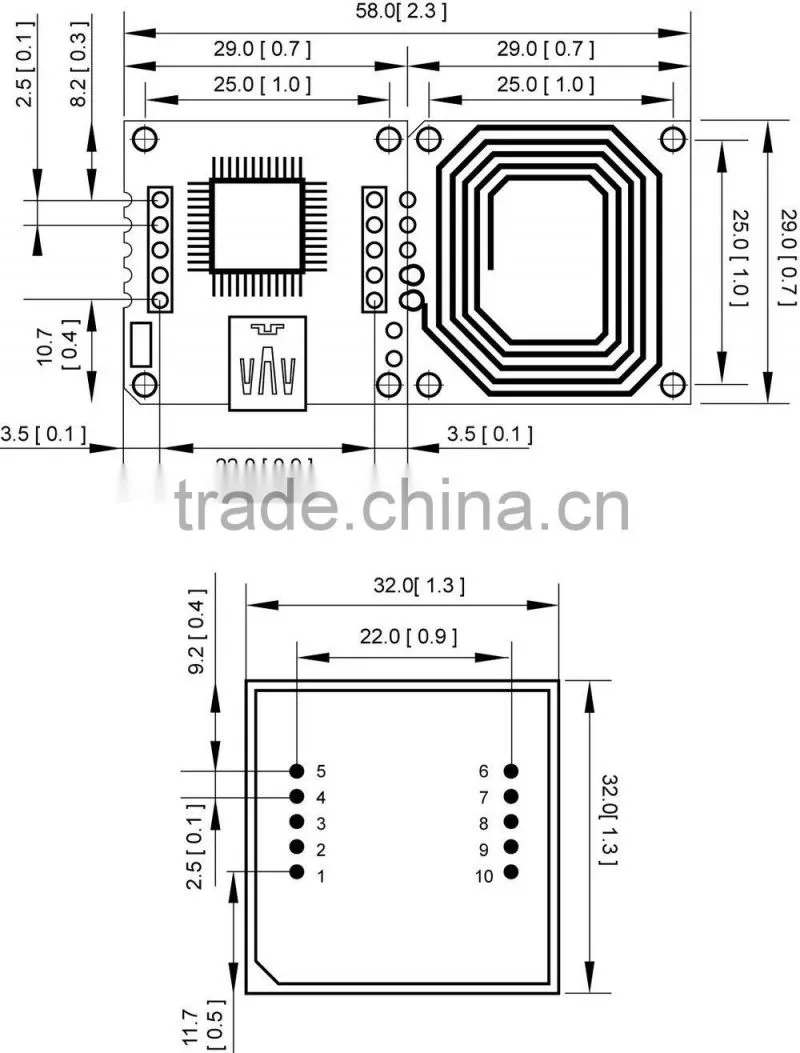

Dimensions(L)×(W) ×(H) mm/inch		58 x 29 / 2.3 x 0.7			32 x 32 x 8 / 1.3x1.3x0.3
Operating temperature		-10℃~70℃
Storage temperature		-20℃~85℃
