Reading Range Max. 6m Active RFID Long Range Reader

Reading Range Max. 6m Active RFID Long Range Reader photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
Pegasus, Pongee
Model Number:
PFH-9210-620
Payment & Shipping
Payment Methods:
Port of Shipment:
Keelung Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Taiwan, China
Brand Name Pegasus, Pongee
Model Number PFH-9210-620

Reading range Max. 6m active RFID long range reader

Product Description
•The Pegasus PFH-9210 is an advanced and Hi-technology reader for vehicle or personal access application. Especially for vehicle control, the RFID Hand free card can be stick to any where within the car even through windshields and clothes but not on the metal and to get access to the gate or any electrical door, just approach to the effective distance without getting off the car or opening the window.

Features
•Epoxy potted for environmental protection
•Weather resistant and water proof

Specifications
•Dimensions: 270(L) x 273(W) x 39(H)mm
•Weight: 2.0 kg ± 5%
•Operation temperature: -20°C ~ 60°C
•Humidity: 10%~90% RH, Non condensation
•Power supply: DC15V, 300 mA
•Mounting: Surface Mount, waterproof
•Card: PFH-620(S/N:620) hand free card in compact size with powerful battery for long life use (about 3 years)
•Reading range: Max. 6 meters
•Frequency of operation: 125KHz & 433.9 MHz(315MHz, 915MHz optional)
•Interface: RS-485, RS -232C , Wiegand
•Indicators: one red LED & one green LED.

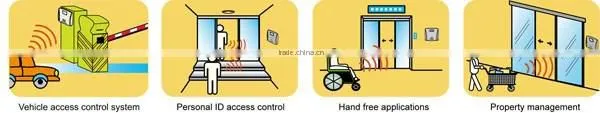

Applications
Reading range Max. 6m active RFID long range reader

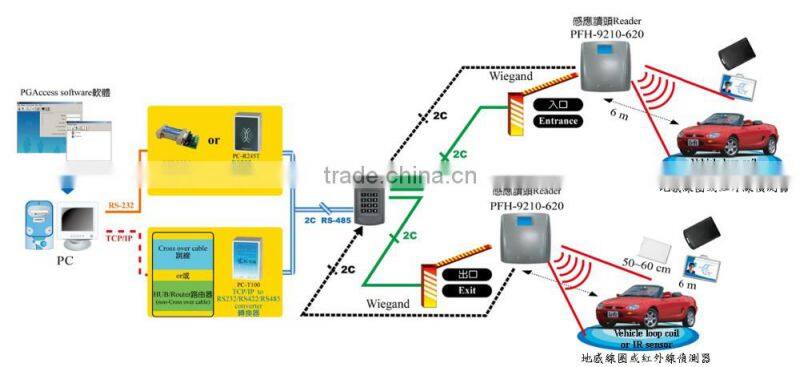

System configuration

 Reading range Max. 6m active RFID long range reader
Optional accessory
The bracket for PFH-9210 series: PGV-BRACKET/205N

Reading range Max. 6m active RFID long range reader


Vehicle loop detector: PK-PD-232
Reading range Max. 6m active RFID long range reader



IR sensor: LK-12HD
Reading range Max. 6m active RFID long range reader
We reserve the right to change the specification without prior notice or obligation!
