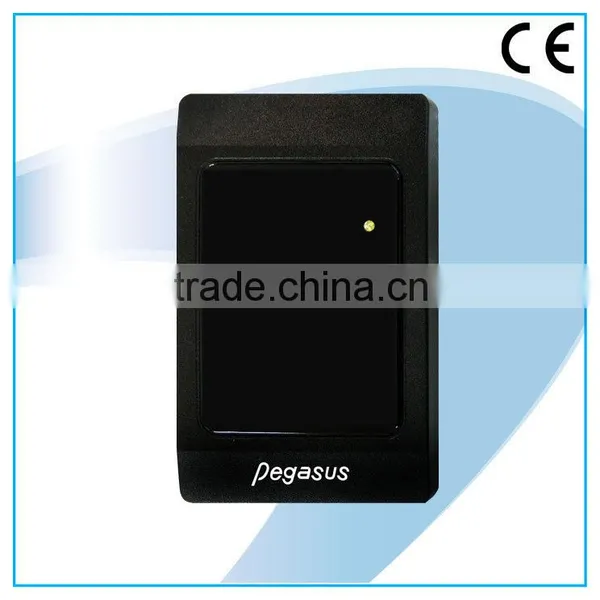

RFID Proximity 125KHz EM Card Reader

Name: RFID Proximity 125KHz EM Card Reader
Brand: Pegasus, Pongee
SKU: 104852191
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Taiwan, China

Brand Name:

Pegasus, Pongee

Model Number:

PUA-310V1

Pongee Industries Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Keelung Taiwan

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Taiwan, China

Brand Name Pegasus, Pongee

Model Number PUA-310V1

Proximity 125KHz EM Card Reader

Proximity Card Reader , Access control reader

Features

Proximity / RF / Remote reader to send out Wiegand / TTL / RS-485 / RS -232C/USB/ABA and other signal.
125KHz ASK type and various Wiegand format (26/34/44 bits) output.
Latest compact size
contactless/proximity reading technology provides an user friendly solution access controller-no swiping or contact required
Passive contactless card and keyfobs require no batteries
Weather resistant. "Epoxy Potted" construction ensures consistent performance in the most adverse environment
Easy to install, low profile and designed for indoor or outdoor application
With CPU watch-log function to prevent malfunction
The Pegasus proximity readers are compatible with proximity card and proximity keyfob ... etc

Specifications

Dimension	118 (L) x 75(W) x 17(H) mm
Weight	250g ±10%
Mounting	Surface mount, waterproof
Reading range	5~ 15 cm
Frequency of operation	125 KHz
Power supply	5VDC±10%, 12VDC±10%
Format	Wiegand( 26, 34, 44bits), ABA Track2, RS232, RS485, USB
Operating Temperature	-10°C ~ 75°C
Humidity	20%~90% RH, Non condensation
