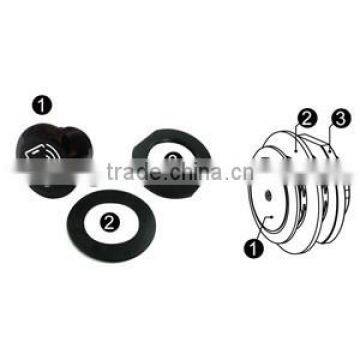

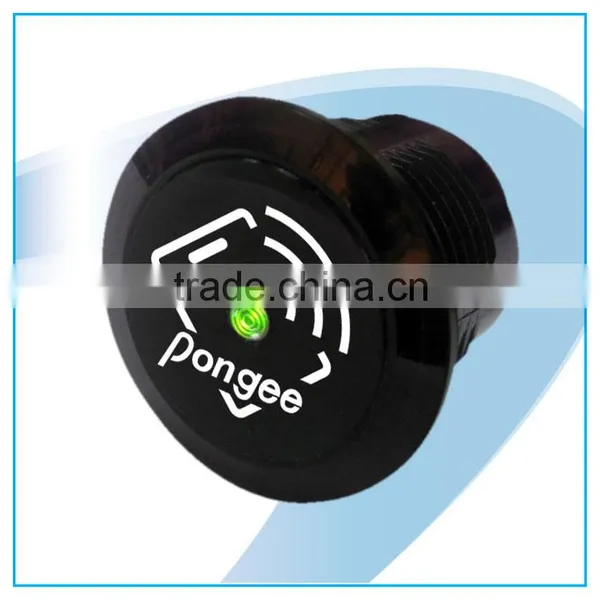

Pegasus standalone rfid door access controller
Product Character
PC-30 is very compact size, self contained access control module including the necessary antenna, relay and VR which could be served as a standalone, contactless access controller with the abilities of Add by learning maximum 1,000 cards as legal cards for access with variable door releasing time adjusted by rotational volume resistor. It can set some specific card as master card to Add, Delete single card as well as delete all cards by master card programming.
Features
1. Small size of 40mmdiameter with 30.2mm length for easy installation.
2. With 1,000 card capacity to be Added, Deleted and Cleared All by master card programming.
3. With inherent form A relay to offer dry contact output.
4. Adjustable releasing timer by VR ( rotation variable resistor) from 0.5~100 seconds.
5. No PC or other terminal is needed for parameters programming.
6. With 3 colours LED and buzzer for programming & access indications.
7. Water proof for flush mounting.
Specification
| RFID frequency | 125KHz ASK / FSK |
| Applicable cards |
EM 4001,EM 4102 or compatible /TEMIC 5557 HC or compatible |
| Readingrange | Card(1.8mm):3~4cm / Card(0.8mm):2~3cm |
| Power input | 12V DC±10% |
| Standby / Working current |
40mA / 50mA±10% @ 12 V DC |
| Material | Polycarbonate |
| Weatherproof/dustproof | IP 54 |
| Dimensions(mm/inch) | Diameter: 39.7/ 1.56 Length: 30.2/1.19 |
| Installation diameter | 31mm / 1.22inch |
| Operating temperature | -10℃~70℃ |
| Storage temperature | -20℃~85℃ |

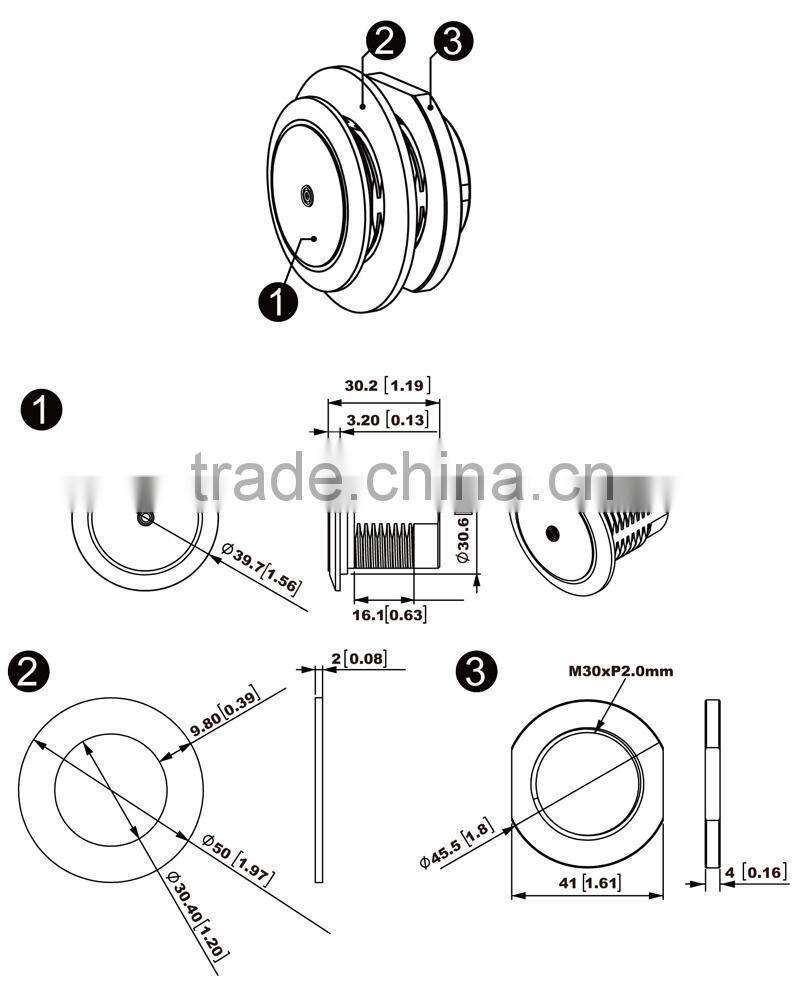

Dimension: Unit:mm[inch]
Application field
l Low cost and simple access controller for door, lift, cabinets, drawers, coffer, handle locks, intercom.
l For small area installation.
l Any access control application by EM / HC cards.
Specifications subject to change without notice for further modification.
