Home > Electrical & Electronics > Telecommunication & Broadcasting > Set Top Box > Full HD DVB-S2 DVBT2 Set Top Box Combo Android Box Quad Core 1G 8G

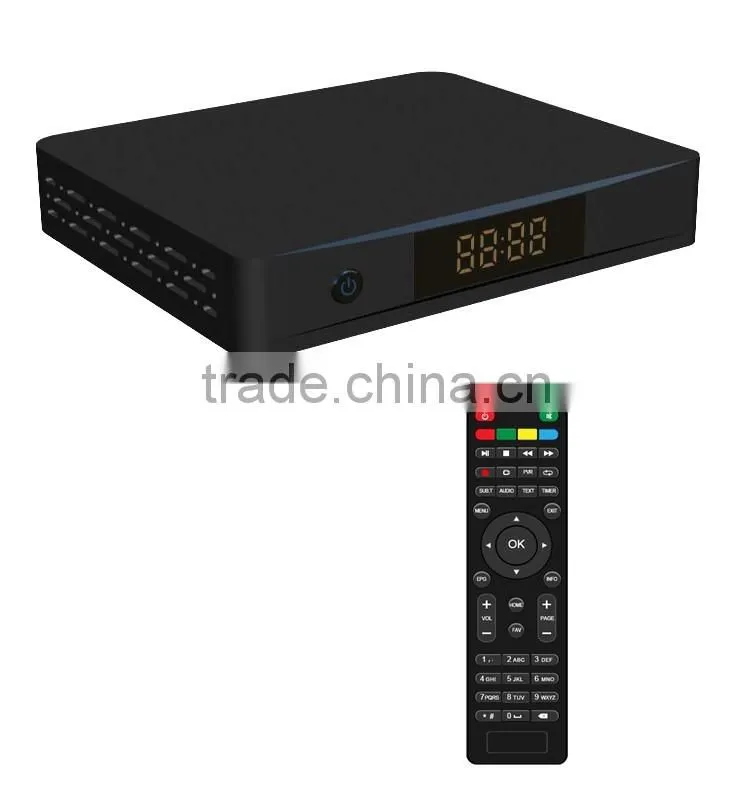

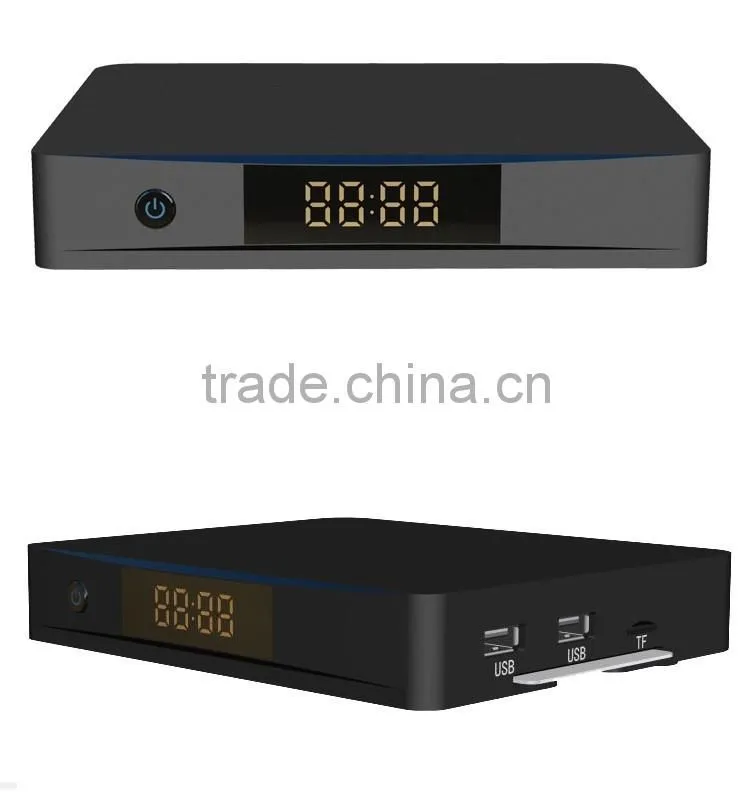

Full HD DVB-S2 DVBT2 Set Top Box Combo Android Box Quad Core 1G 8G
US$ 1 - 60
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Catsat
Model Number:
GKH3A-T2&S2
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wholesale Smart Android TV Box 2GB Ram Bluetooh Dual Wifi Full HD 4K SupportNegotiableMOQ: 1 Piece -
2016 New Android5.1 TV Box T95N Amlogic S905 Quad Core A53 Wifi XBMC SupportNegotiableMOQ: 1 Piece
-
2016 Cheapest 2G Android TV Box Mini M8Spro Quad Core 4K Smart TV BoxUS$ 25 - 35MOQ: 1 Piece
-
Newest 1G Smart TV Box With Led Display Quad Core Android 5.1 3D WifiUS$ 1 - 26MOQ: 1 Piece
-
Best Quad Core Android 5.1 TV Box Amolgic S905 2GB Ram 16GB Rom Support Wifi BluetoothUS$ 1 - 50MOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
Catsat
Model Number
GKH3A-T2&S2
Full HD DVB-S2 DVBT2 Set Top Box Combo Android Box Quad Core 1G 8G
Skype:cathy.cat12 or lyzlsz55
Whatsapp:+86 15960751854 or +86 13543050995
Highlight:
|
GKH3-T2&S2 is a quad core 4K Android combo Box surpporting T2&S2. Android 4.4.2 operating system H.264 1080p Video encoding H.264/H.265 decoding up to 4K×2K@30fps |
Product Description
| SYSTEM |
| CPU: ARM Quad Cortex-A7 up to 1.5GHz |
| GPU: Mali-450 |
| DRAM: DDR3 1GB (512MB Optional) |
| Flash: Nand Flash 8GB( Nand/EMMC 4GB,8GB,16GB,32GB Optional) |
| OS:Android4.4.2 |
| Network |
| RJ45 Interface 10M/100M adaptive |
| Build in Wi-Fi 2.4GHz/5GHz 802.11a/b/g/n(2.4GHz, 5GHz Optional ) |
| Bluetooth 4.0 ( Optional ) |
| Support most external 3G/4G USB dongle(Optional) |
| Tuner S2 |
| Tuner+DEMO: AV2012+AVL6211 |
| Frequency Range: 950~2150MHZ |
| Input Level: -65~-25dBm |
| Input impedance: 75Ω |
| Tuner T2 |
| Tuner+DEMO: MXL608+AVL6762 |
| Frequency Range: (VHF)174~230MHz, (UHF)474~858MHz |
| Input Level: -85dBm~-20dBm |
| Input impedance: 75Ω |
| Network : RJ45, Buildin Wi-Fi antenna |
| Peripheral Interface : USB2.0 x2, SD card slot, CA card slot |
| Power Interface : DC 12V |
| Other Interface : Front panel: IR receiver, LED indicator Rear panel: IR IN |
| Video |
| Decoder: H.265 decoding up to 4K×2K 30fps H.264 HP L5.1 up to 4K×2K 30fps SVC, MVC, VC-1/WMV, AVS, WebM, RMVB, MPEG1/2/4, MJPEG, H.263, DivX 3/4/5, Xvid, Real Video, VP6/8 |
| Format: MKV, TS, M2TS, MOV, MP4, RM, RMVB, AVI, MPG, MPEG, DAT, VOB, FLV etc. |
| Audio |
| Decoder: MPEG 1/2/2.5, Audio Layer 1/2/3, WMA Version 4/4.1/7/8/9, WMA Pro, LPCM, PCM, Vorbis, Flac, ALAC, APE, AAC-LC/HEAAC/HE-AAC v2, Real Audio(AC-3 Optional ) |
| Format: MP3, WMA, WAV, OGG, M4A, MP4, AAC, APE, FLAC, ALAC, MPEG, MP1, MP2, MPA etc. |
| Subtitle Format : SMI, SRT, SSA, ASS,SUB, SUB+IDX, ISO Navigation |
| Photo Format : HD JPEG/BMP/GIF/PNG/TIFF |
| Features |
| Digital TV : Fully compliant with HD DVB-S2/DVB-S, 7 days EPG, USB PVR, Timeshift, Program playback, Timing playing |
| CAS : Conax CA (Optional), Patch, BISS, CCCAM, NEWCAM, GSCAM, MGCAM |
| 4K: H.264/H.265 decoding up to 4Kx2K@30fps, Support 4Kx2K max resolution output |
| Network Streaming : HTML5, RTSP, HLS, Smooth streaming |
| Multi-screen interactive : Miracast, DLNA and Airplay |
| System Upgrading : Upgrading via USB disk or SD card, internet |
| Local Media Playback : Video/Audio/Picture |
| External Storage : USB storage, SD card max to 32GB (FAT32/NTFS) |
| Games : Android 2D/3D games |
| APP : XBMC,KODI,Facebook, YouTube, Skype, Google play etc. |
| Input Voltage : DC IN 12V/1.5A |
| Power Consumption : 8W Max |
| Operation Temperature : 0~40℃, Humidity<95% |
| Proposed Accessory : Remote control and Battery, User manual, Power adapter, AV cable, HDMI cable |
