Help CenterForged Brass Swing Check Valve
Negotiable
MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Butterfly
Pressure:
High Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Qinigdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Accessories of Water MeterUS$ 7.99 - 100MOQ: 1000 Pieces -
Brass One Way Check ValveNegotiableMOQ: 500 Pieces
-
Connecting Fitting Water Meter Connector Brass Water MeterUS$ 7.99 - 100MOQ: 1000 Pieces
-
Water Meter Connector Brass Water MeterUS$ 7.99 - 100MOQ: 1000 Pieces
-
Hot Flow Meter Single Jet Dry DialNegotiableMOQ: 100 Pieces
Standard or Nonstandard
Standard
Structure
Butterfly
Pressure
High Pressure
Power
Hydraulic
Material
Other, Brass, brass
Temperature of Media
High Temperature
Media
Water
Port Size
1/2''-2'' inch
Place of Origin
China
Model Number
GX-Meter S
Brand Name
Gaoxiang
Specifications

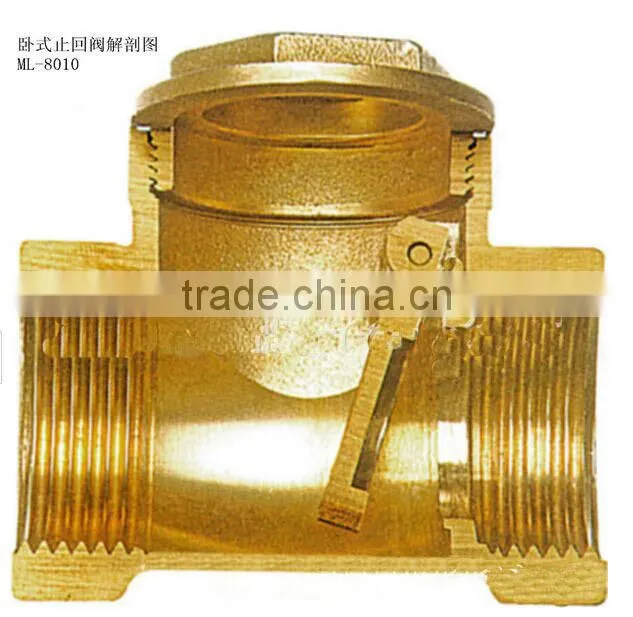

forged brass swing check valve ,The valve is used for connecting or cutting off the medium in pipelines.It is easy to be installWhat is the details for forged brass swing check valve ?
Forged brass swing check valve , has been widely applied in pipe system of HVAC industry. It can be installed in both vertical and horizontal direction, and the suitble media can be water, oil and gas, with the fetures of light weight, reliable seal function and good looking, it has been the first choice for more and more engineers.
brass check valve :
1.Nominal Pressure:1.6MPa
2.Working Medium:Water,Non-corrosive liquid
3.Working Temperature:-20<=t<=150
4.Pipe thread to ISO228(DN15-DN50)/ISO 7
| Material List | |||
| Part | Material | ASTM | BS |
| Body | Brass | B124 C38800 | 2874 CZ122 |
| Cap | Brass | B124 C38800 | 1400 LG2 |
| Disc | Brass | B124 C38800 | 2874 CZ122 |
| Spring | Stainless Steel | A313 304 | 3111 304S31 |
| Seat | NBR | ||
| Valve Standard | Comply with MSS SP-80 | |
| Threaded to BS 21(ISO7)/ASME B1.20.1 | ||
| Size Range | 15mm (1/2") ~ 50 mm(2") | |
| Working pressure | 300psi (20.7 bar)WOG Non-Shock | |
| 150psi (10.3 bar)Saturated Steam | ||
| Testing Pressure | Shell: 450 psi(31 bar)Hydrostatic | |
| Seat: 330psi (22.7 bar) Hydrostatic | ||
| 80 psi (5.5 bar) Air | ||
| Suitable Media | Water, Oil, Gas | |
What is the Details specification for forged brass swing check valve ?
| Question and Answer | |
| Samples: | |
| (1) we can make the samples according to customer’s samples or designs. | |
| (2)Our designer team can finish the samples timely, the exact sample delivery time | |
| depends on thesample’s style, usually in 10 working days. | |
| (3) For New design samples, the buyers have to pay for the relative model fee. | |
| (When you order reach a certain amount, we will return back the model fee to you) | |
| Price Terms: | |
| FOB, CFR,CIF.etc. | |
| Payment Terms: | |
| (1) T/T, 30% T/T deposit before production, pay the balance before shipment. | |
| (2) L/C at sight (for large quantity order) | |
| (3) 100% T/T in advance | |
| Order and Mass Production: | |
| (1) We will send PROFORMA INVOICE to you when the order is confirmed. | |
| (2) We will start to have mass production when confirm our sample and | |
| 30% T/T deposit received. | |
| (3) Quality is under the control and supervision during the production. | |
| (4) Packing information will be confirmed before the production finished, | |
| If no special requirment, using our normal package. | |
| Quality control and inspection: | |
| (1) Will be check by QC when Material & accessories inspection up arrival | |
| (2) In line control on Each Step | |
| (3) Every one valve will be comprehensive review before packing | |
| (4) Sales will be spot check before shipping | |
| (5) Third Party inspection Such as CE, UL and so on | |
| (6) Original authorization through ISO9001:2000 |
