Brass Non Return Check Valve

Brass Non Return Check Valve thumbnail-1
Brass Non Return Check Valve thumbnail-2
Brass Non Return Check Valve thumbnail-3
Brass Non Return Check Valve thumbnail-4
Brass Non Return Check Valve thumbnail-5
Brass Non Return Check Valve thumbnail-6
Brass Non Return Check Valve photo-1
Brass Non Return Check Valve photo-2

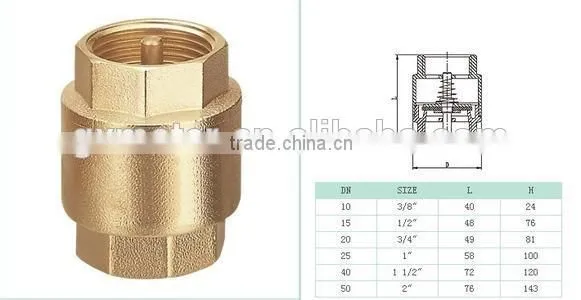

Brass Non Return Check Valve photo-3
Brass Non Return Check Valve photo-4
Brass Non Return Check Valve photo-5
Brass Non Return Check Valve photo-6
Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Butterfly
Pressure:
High Pressure
Contact Supplier Request Quote Chat Now
Gaoxiang Water Meter Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qinigdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Butterfly
Pressure High Pressure
Power Hydraulic
Material Other, Brass, brass
Temperature of Media High Temperature
Media Water
Port Size 1/2''-2'' inch
Place of Origin China
Model Number GX-Meter S
Brand Name Gaoxiang

Specifications

brass non return check valve ,The valve is used for connecting or cutting off the medium in pipelines.It is easy to be installed

What is the details for brass non return check valve ?



Mini screw type high pressure brass non return one way check valve, has been widely applied in pipe system of HVAC industry. It can be installed in both vertical and horizontal direction, and the suitble media can be water, oil and gas, with the fetures of light weight, reliable seal function and good looking, it has been the first choice for more and more engineers.





brass check valve :

1.Nominal Pressure:1.6MPa

2.Working Medium:Water,Non-corrosive liquid

3.Working Temperature:-20<=t<=150

4.Pipe thread to ISO228(DN15-DN50)/ISO 7



Material List
Part  Material ASTM BS
Body Brass B124 C38800 2874 CZ122
Cap Brass B124 C38800 1400 LG2
Disc Brass B124 C38800 2874 CZ122
Spring Stainless Steel A313 304 3111 304S31
Seat NBR



Valve Standard Comply with MSS SP-80
Threaded to BS 21(ISO7)/ASME B1.20.1
Size Range 15mm (1/2") ~ 50 mm(2")
Working pressure 300psi (20.7 bar)WOG Non-Shock
150psi (10.3 bar)Saturated Steam
Testing Pressure Shell: 450 psi(31 bar)Hydrostatic
Seat: 330psi (22.7 bar) Hydrostatic
           80 psi (5.5 bar) Air
Suitable Media Water, Oil, Gas





What is the Details specification for   brass non return check valve ?

brass non return check valvebrass non return check valve



brass non return check valve




Question and Answer

Samples:
(1)  we can make the samples according to customer’s samples or designs.
(2)Our designer team can finish the samples timely, the exact sample delivery time
depends on thesample’s style, usually in 10 working days.
(3) For New design samples, the buyers have to pay for the relative model fee.
(When you order reach a certain amount, we will return back the model fee to you)

Price Terms:
FOB, CFR,CIF.etc.

Payment Terms:
(1) T/T, 30% T/T deposit before production, pay the balance before shipment.
(2) L/C at sight (for large quantity order)
(3) 100% T/T in advance

Order and Mass Production:
(1) We will send PROFORMA INVOICE to you when the order is confirmed.
(2)  We will start to have mass production when confirm our sample and
30% T/T deposit received.
(3)  Quality is under the control and supervision during the production.
(4)  Packing information will be confirmed before the production finished,
If no special requirment, using our normal package.

Quality control and inspection:
(1)  Will be check by QC when Material & accessories inspection up arrival
(2)  In line control on Each Step
(3)  Every one valve will be comprehensive review before packing
(4) Sales will be spot check before shipping
(5)  Third Party inspection Such as CE, UL and so on
(6)  Original authorization through ISO9001:2000
