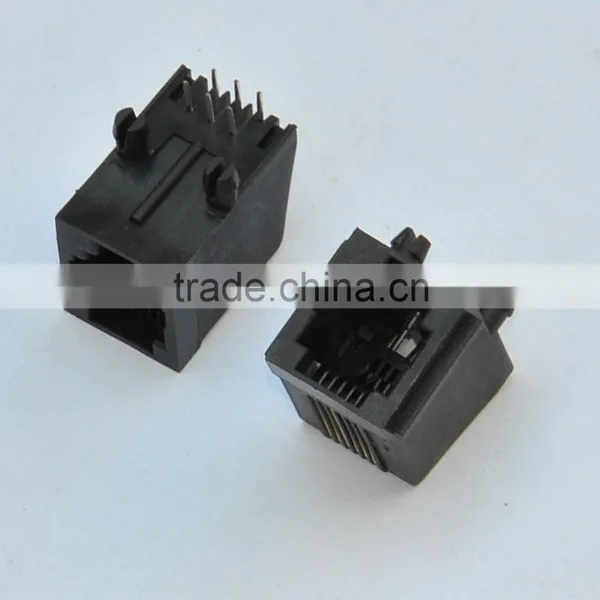

Side Entry RJ11 6p Modular PCB Jack/connector
US$ 0.1 - 2
MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CSCE
Model Number:
SC704-5721-6P-E
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Side Entry RJ11 6p Telephone Socket/jackUS$ 0.1 - 2MOQ: 5000 Pieces -
Side Entry RJ11 Telephone Connector/socketUS$ 0.1 - 2MOQ: 5000 Pieces
-
Side Entry RJ11 PCB Modular Socket/JackUS$ 0.1 - 2MOQ: 5000 Pieces
-
RJ11 Side Entry Network Socket/ConnectorUS$ 0.0354 - 0.6274MOQ: 1500 Pieces
-
Side Entry RJ11 4p Modular PCB Jack/socketUS$ 0.1 - 2MOQ: 5000 Pieces
Place of Origin
Zhejiang, China
Brand Name
CSCE
Model Number
SC704-5721-6P-E
Type
Other, rj11
Application
PCB
Gender
Female
Specifications
1.Side Entry RJ12 connector/Telephone Socket/Modular PCB Jack with 0.35 mm phosphor bronze contact wire2.UL,RoHS,ISO9001-2000
Description:
Side entry RJ11 telephone socket with stamp pin(Flat pin)
Number of ports: 1
Number of position: 6
Number of contacts: 2,4,6
Electrical:
Rated current: 1.5A
Rated voltage: 125VAC
Insulation resistance: 500MΩmin
Contact resistance: 30MΩmax
Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min
Mechanical:
Insertion force: 2.2kgf max
Retention strength: 7.7kgf min between jack and plug
Durability: 600 mating cycles minimum
Materials:
1. Housing: ABS resin (UL94V-0), PBT (UL94V-0), PA66 (UL94V-0), and PA46 (UL94V-0)
2. Contact Wire: 0.35mm thickness phosphor bronze alloy selective gold plating over Nickel
3. Gold Plating: Fu inch, 3u inch, 6u inch, 15u inch, 30u inch, 50u inch
