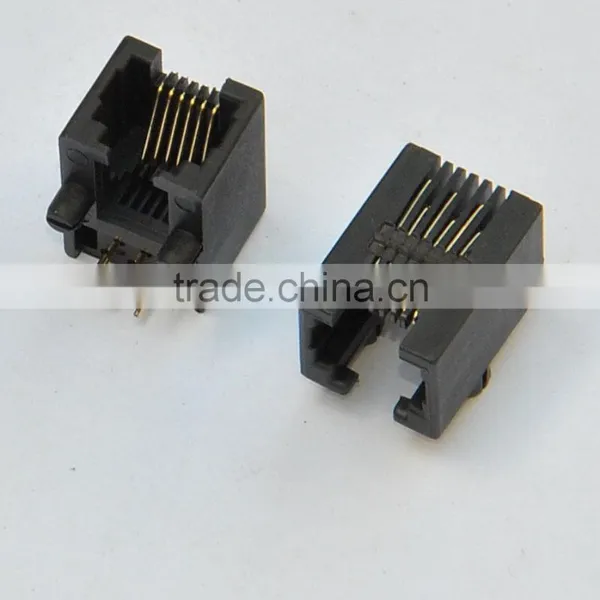

RJ11 Side Entry network Socket/Connector

Specifications

1.Side Entry RJ11 telephone Modular PCB Jack/socket/connector with 0.45mm phosphor bronze contact wire
2.UL,RoHS,ISO9001-2000

Description:
Side entry RJ11 telephone modular PCB jack
Without shielding, round pin
Number of ports: 1
Number of position: 6
Number of contacts: 2,4 or 6





Electrical:
Rated current: 1.5A
Rated voltage: 125VAC
Insulation resistance: 500MΩmin
Contact resistance:  30MΩmax

Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min

Mechanical:
Insertion force: 2.2kgf max

Retention strength: 7.7kgf min between jack and plug
Durability: 600 mating cycles minimum



Materials:

1.Housing: ABS resin (UL94V-0), PBT (UL94V-0), PA66 (UL94V-0), and PA46 (UL94V-0)
2. Contact Wire: Diameter 0.45mm phosphor bronze gold plating over Nickel
3. Shield: 0.20~0.25mm thickness brass with tin plated
4. Gold Plating: Fu",+3u",6u",15u",30u",50u"
