Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > Top Entry RJ11 6p Modular PCB Socket

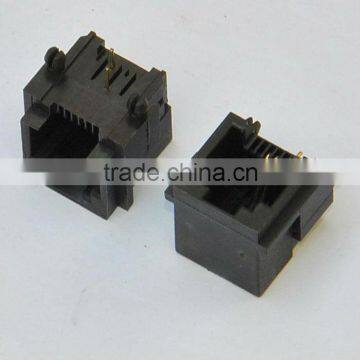

Top Entry RJ11 6p Modular PCB Socket
US$ 0.027 - 0.39
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CSCE
Model Number:
SC517-5522 6P2C
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Top Entry Flat Pin RJ11 PCB Telephone ConnectorUS$ 0.1 - 2MOQ: 5000 Pieces -
RJ11 6p Telephone Pcb Jack/SocketUS$ 0.1 - 2MOQ: 5000 Pieces
-
Top Entry RJ11 1*3 Port Telephone Modular PCB JackUS$ 0.1 - 2MOQ: 5000 Pieces
-
RJ45 Modular PCB 8p Jack/ConnectorUS$ 0.07 - 0.2MOQ: 1500 Pieces
-
Top Entry RJ11 Pcb 90degree Socket Female JackUS$ 0.062 - 0.4MOQ: 1500 Pieces
Place of Origin
Zhejiang, China
Brand Name
CSCE
Model Number
SC517-5522 6P2C
Type
Other, RJ11
Application
PCB
Gender
Female
Specifications
1.Top entry RJ11 Modular PCB Jack/ socket2.UL,RoHS,ISO9001-2000
Description:
Top entry RJ11 telephone socket with 0.46mm round pin
Without shielding.
Electrical:
Rated current: 1.5A
Rated voltage: 125VAC
Insulation resistance: 500MΩmin
Contact resistance: 30MΩmax
Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min
Mechanical:
Insertion force: 2.2kgf max
Retention strength: 7.7kgf min between jack and plug
Durability: 600 mating cycles minimum
Materials:
Housing: PBT (UL94V-0), PA66 (UL94V-0), and PA46 (UL94V-0)
2. Contact Wire: Diameter 0.46mm phosphor bronze gold plating over Nickel
3. Gold Plating: Fu inch, 3u inch, 6u inch, 15u inch, 30u inch, 50u inch
| RJ45/RJ11 Connector specifications: | |
| Application - LAN | ETHERNET |
| Gender | Jack |
| No. of Ports | 1X2,1X4 |
| Number of position | 10 |
| Number of contacts | 2,4, 6,8 or 10 |
| Housing | PBT(UL94-V0),PA66(UL94-V0),PA46 (UL94-V0) |
| Contact Material | 0.45mm phosphor bronze gold plating over nickel |
| Shielding housing | 0.20-025mm thickness brass with nickel plated |
| Shield EMI Tabs | Option |
| LED | Option |
| Gold Plating | Gold Flash,3u",6u",15u",30u" or 50u" |
| PCB Mount Angle | Side entry |
| Insertion Force | 2.2KG.F max |
| Retention Strength | 7.7KG.F min between jack and plug |
| Durability | 750 mating cycles min |
| Working Temperature | -40°C~+70°C |
| Storage Temperature | -10°C~+40°C Relative Humidity |
| RoHS Compliant | Yes |
| Electrical: | |
| Current Rating | 1.5 Amps |
| Voltage Rating | 125VAC |
| Insulation Resistance | 500 MΩmin |
| Contact Resistance | 30 mΩmax |
| Withstanding Voltage | AC 1000V RMS 50Hz or 60Hz 1 min |
| RJ45 connector Application: | |
| Laptop | Telephone |
| Hub | Router |
| Printer | Broadband Switche |
| Server | Fitness Equipment |
| LCD and TV panel | Point of Sales Terminal |
| Set Top Box | Vending Machines |
| Surge protector | Television |
| Telecom box ATM Machine | Home Security |
| Security System | Copier |
| Video DVD product | |
