Help CenterSide Entry RJ45 Multi-port Modular PCB Jack
Related Products
-
Side Entry 1*3port RJ45 PCB/telephone JackUS$ 0.1 - 2MOQ: 5000 Pieces -
Unshield CAT5 Stamp Pin RJ45 Side Entry PCB JackUS$ 0.1 - 2MOQ: 5000 Pieces
-
Side Entry RJ45 ConnectorUS$ 0.1 - 2MOQ: 5000 Pieces
-
Cat5 RJ45 ConnectorUS$ 0.1 - 2MOQ: 5000 Pieces
-
RJ45 8P8C Network Socket /connector JackUS$ 0.1 - 2MOQ: 5000 Pieces
Specifications

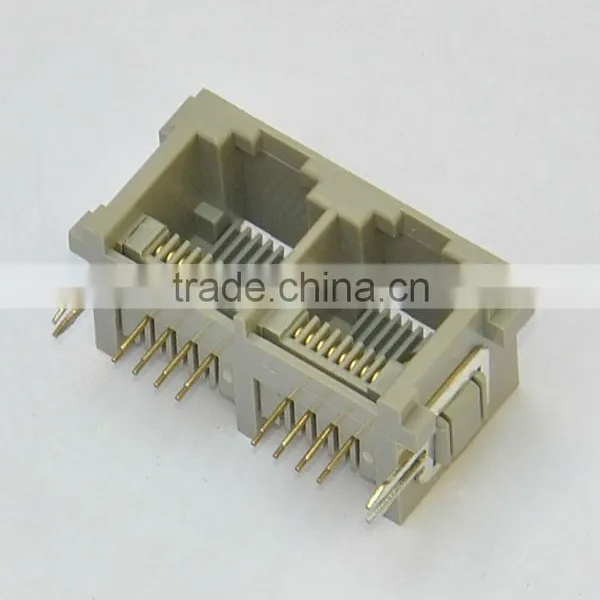

1.RJ45 Side Entry Telephone Modular PCB Connector/Socket with Round Pin Modular PCB Jack2.UL,RoHS,ISO9001-2000
Product Name: Network Connector/RJ45 Modular PCB Jack
Item No.: SC237-5225-8P-1*2-90
Description:
Side Entry modular pcb jack without Shield, 8p2c, 8p4c 8p6c or 8p8c(number of 8 passing through the golden needles, amount of 2, 4, 6 or 8 needles)
No.of Ports:1*2 Port
Angle:90 Degree
Specification
Electrical
1. Current Rating: 1.5 amps
2. Voltage Rating: 125vac
3. Insulation Resistance: 500mΩmin
4. Contact Resistance: 30mΩmax
5. Withstanding Voltage: AC 1000V RMS 50Hz or 60Hz 1 min
Mechanical
1. Insertion Force: 2.2KG. F max
2. Retention Strength: 7.7KG. F min between jack and plug
3. Durability: 600 mating cycles min
Material
1. Housing: ABS RESIN(UL94V-0)
PBT(UL94V-0)(Common type)
PA66(UL94V-0)
PA46(UL94V-0)
2. Contact Wire:Diameter 0.45mm phosphor bronze gold plating over
Nickel
3. Shield: 0.20~0.25mm thickness brass with tin plated
4. Gold Plating: Fu", +3u",6u",15u",30u" or 50u"
