Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > 1*1 Port RJ45 Modular Jack With LED

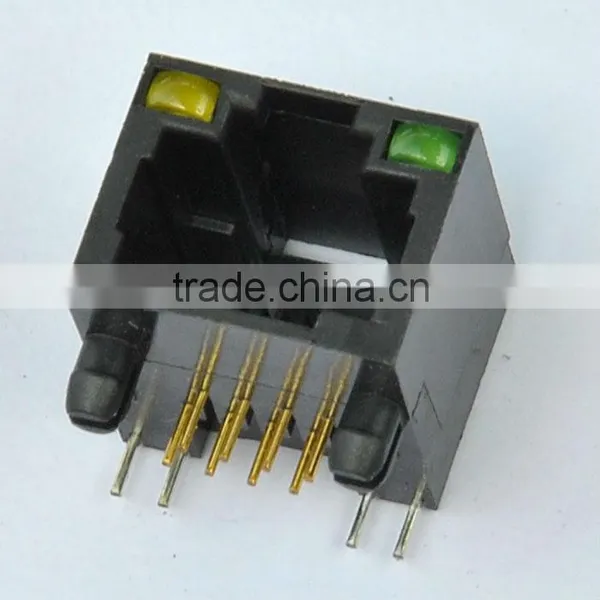

1*1 Port RJ45 Modular Jack With LED
US$ 0.1 - 2
MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Brand Name:
CSCE
Model Number:
SC601-56-LED 1X1
Type:
RJ45
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RJ45 PCB 8pin With LED ConnctorUS$ 0.173 - 0.31MOQ: 1500 Pieces -
Top Entry RJ45 PCB LED Jack Shielded/unshielded Female Network SocketUS$ 0.1 - 0.8MOQ: 1000 Pieces
-
Top Entry RJ45 Modular PCB Jack With LED RJ45 Female Connector Network Socket With ShieldUS$ 0.18 - 0.85MOQ: 1000 Pieces
-
Top Entry RJ45 Modular LED PCB JackUS$ 0.18 - 0.85MOQ: 1000 Pieces
-
RJ45 Top Entry PCB JACK With LEDNegotiableMOQ: 1
Brand Name
CSCE
Model Number
SC601-56-LED 1X1
Type
RJ45
Specifications
1.RJ45 Modular Jack with LED2.UL,RoHS,ISO9001-2000
Description:
RJ45 connector with 0.46mm round pin
Electrical:
Rated current: 1.5A
Rated voltage: 125VAC
Insulation resistance: 500MΩmin
Contact resistance: 30MΩmax
Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min
Mechanical:
Insertion force: 2.2kgf max
Retention strength: 7.7kgf min between jack and plug
Durability: 600 mating cycles minimum
Materials:
Housing: PBT (UL94V-0), PA66 (UL94V-0), and PA46 (UL94V-0)
2. Contact Wire: Diameter 0.46mm phosphor bronze gold plating over Nickel
3.Gold Plating: Fu inch, 3u inch, 6u inch, 15u inch, 30u inch, 50u inch
