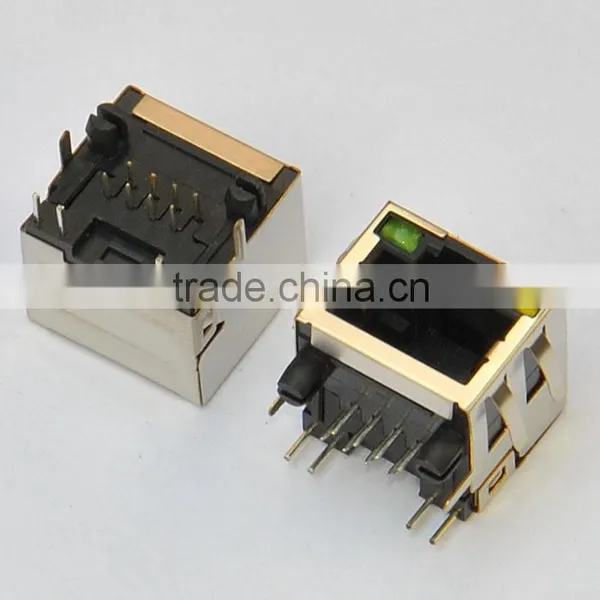

RJ45 PCB 8pin with LED Connctor

Specifications

1.RJ45 PCB Jack
2.UL,RoHS,ISO9001
3.Samples types foe choice
4.Long-term supply
5.fastest delivery

Description:
RJ45  PCB Jack
Number of position: 8

Number of contacts: 2,4,6,8 or 10



Electrical:
Rated current: 1.5A
Rated voltage: 125VAC
Insulation resistance: 500MΩmin
Contact resistance:  30MΩmax

Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min



Mechanical:
Insertion force: 2.2kgf max

Retention strength: 7.7kgf min between jack and plug
Durability: 600 mating cycles minimum



Materials:

1.Housing: PBT (UL94V-0), PA66 (UL94V-0), and PA46 (UL94V-0)
2. Contact Wire: 0.3mm thickness phosphor bronze alloy selective  gold plating over Nickel
3. Shield: 0.2-0.25mm thickness brass with tin plated
4. Gold Plating: Fu",+3u",6u",15u",30u",50u
