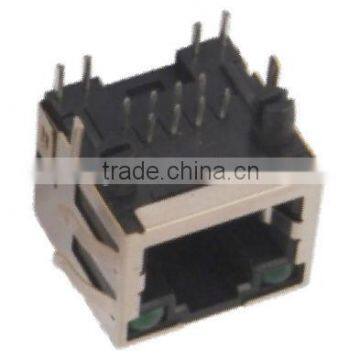

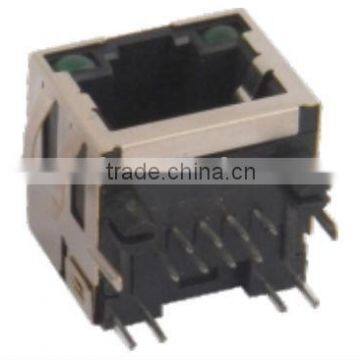

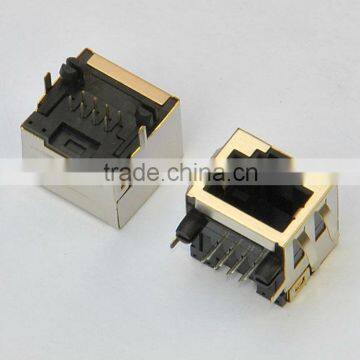

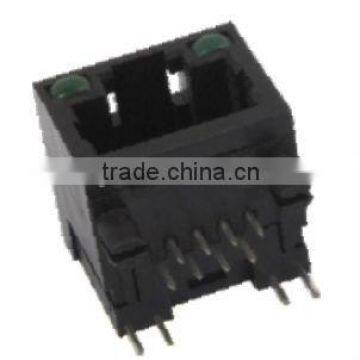

LED RJ45 Modular Shield/unshield socket

RJ45 PCB Jack  with 0.46mm round pin LED.

Number of ports: 1

Number of position: 8

Number of contacts: 2,4 or 6

Rated current: 1.5A

Rated voltage: 125VAC

Insulation resistance: 500MΩmin

Contact resistance: 30MΩmax

Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min

Insertion force: 2.2kgf max

Retention strength: 7.7kgf min between jack and plug

Durability: 600 mating cycles minimum

1.Housing: PBT (UL94V-0), PA66 (UL94V-0), and PA46 (UL94V-0)

2. Contact Wire: Diameter 0.46mm phosphor bronze gold plating over Nickel

3. Shield: 0.20~0.25mm thickness brass with Nickel  plated

4. Gold Plating: Fu inch, 3u inch, 6u inch, 15u inch, 30u inch, 50u inch

5.with LED
