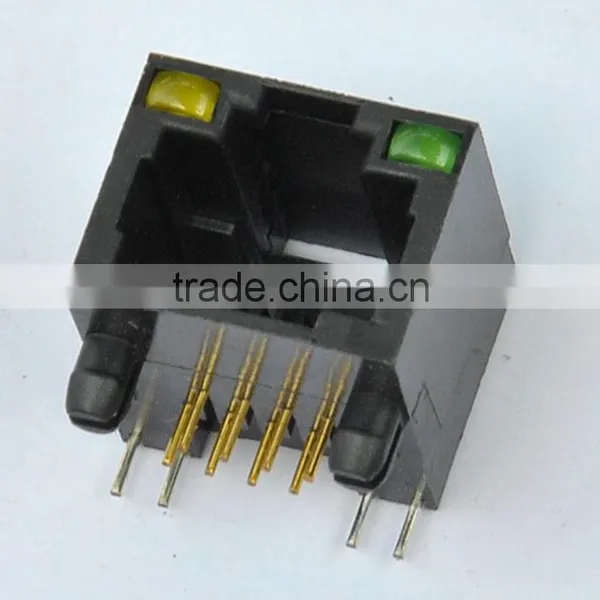

RJ45 PCB Connector /socket With LED
US$ 0.1 - 2
MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
XCSCE
Model Number:
SC601-56S-LED-1*1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Side Entry 8P Vertical RJ45 Jack Single Port Female RJ45 LED ConnectorUS$ 0.11 - 0.12MOQ: 5000 Pieces -
Side Entry Multi-ports RJ45 LED ConnectorUS$ 0.16 - 0.9MOQ: 1000 Pieces
-
LED RJ45 Modular Shield/unshield SocketUS$ 0.15 - 0.3MOQ: 1500 Pieces
-
Shield Double Row 2*2 Port RJ45 With LED JackUS$ 0.6 - 4.6MOQ: 1500 Pieces
-
Double Level 2*4 Port RJ45 Modular Jack With LEDUS$ 0.1 - 2MOQ: 5000 Pieces
Place of Origin
Zhejiang, China
Brand Name
XCSCE
Model Number
SC601-56S-LED-1*1
Type
RJ45
Application
PCB
Gender
Other
Description:
RJ45 PCB connector /socket with LED
Number of ports: 1*1
Number of position: 8
Electrical:
Rated current: 1.5A
Rated voltage: 125VAC
Insulation resistance: 500MΩmin
Contact resistance: 30MΩmax
Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min
Mechanical:
Insertion force: 2.2kgf max
Retention strength: 7.7kgf min between jack and plug
Durability: 600 mating cycles minimum
Materials:
1.Housing: PBT (UL94V-0), PA66 (UL94V-0), and PA46 (UL94V-0)
2. Contact Wire: Diameter 0.46mm phosphor bronze gold plating over Nickel
3.Gold Plating: Fu",+3u",6u",15u",30u",50u
