Help CenterDN 50-300mm Large Caliber Water Meter Woltman Dry Dial Type Water Meter
Related Products
-
Large Caliber Woltman Water Meter ISO 4064 Class B ManufactureUS$ 40 - 150MOQ: 10 Pieces -
Woltman Water Meter Cast Iron Material With Factory PriceUS$ 40 - 150MOQ: 10 Pieces
-
Cast Iron Large Caliber Woltman Water Meter Dry Dial TypeUS$ 40 - 150MOQ: 10 Pieces
-
DN 50mm Woltman Water Meter Mechanical Water MeterUS$ 40 - 150MOQ: 10 Pieces
-
Horizontal Type Dry Dial Industrial Water Flow Meter LXLC50-300US$ 40.5 - 1,030MOQ: 1 Piece
Specification:
Dry dial flange water meter is an inferential,multtistream,dry dial,straight reading type meter for cold water,suitable for domestic use.Brass body and adopt all antiseptic material,no leak,mechanical transmission not effected by external magnetic fields or ferrous particles in water.Accuracy is in accordance with ISO40064,Class B standard.
langed Woltmann Water Meter Types

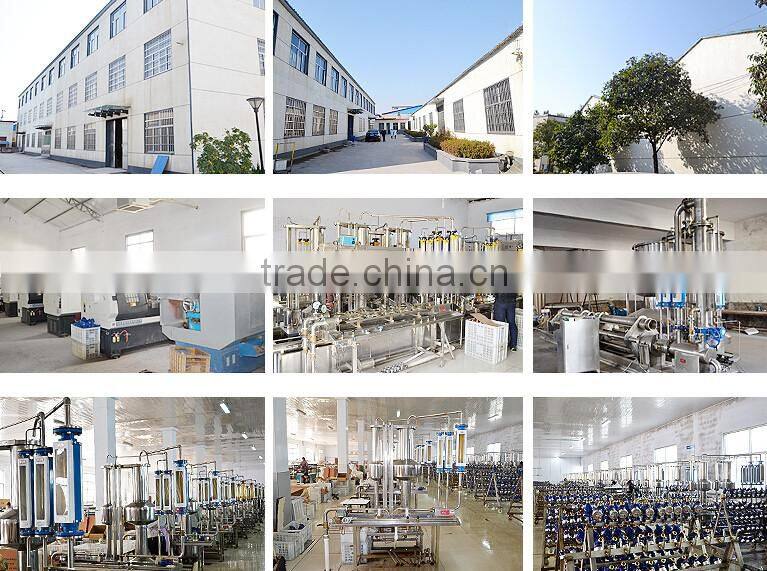

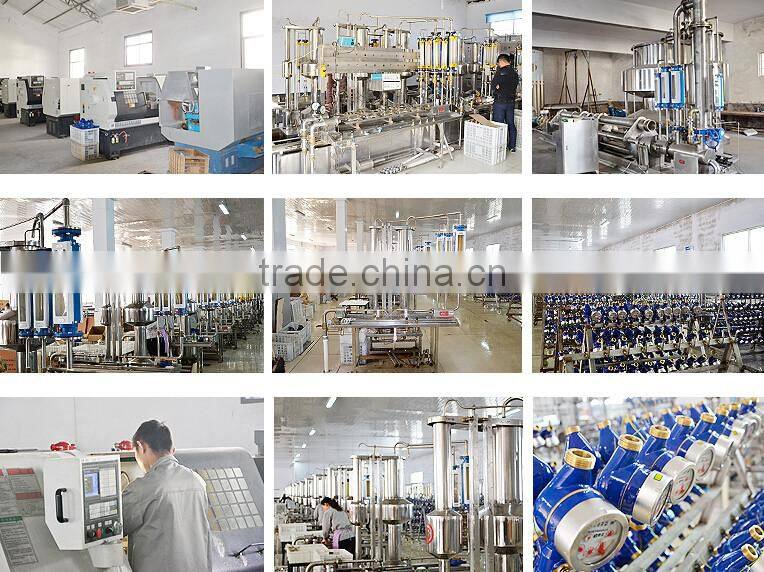

We (Gaoxiang Water Metert )are professional water meter manufacture for 10 years and we can supply high quality Flanged water meter Woltmann water meterr DN50-300mm with reasonable price ,any comments or needed ,pls feel free to comtact me:
Details for Flanged water meter Woltmann water meterr DN50-300mm
SPECIFICATION
Model LXLGC- meter is a full helix type,magnetic drive,dry dial water meter with an interchangeable measuring unit.It has the advantages of small resistance,negligible head loss,big capacity,excellent accuracy,high measuring capacity,and longlife if service.The measuring unit with sealed indicator offers the meters with very clear reading condition.This series can be equipped with a kind of remote transmission device.The generating volume is 0.3m³/Pulse and 1m³/Pulse.
Features;
1.the material is Environment Friendly
2..warranty: 2 years
3.Supply ability:100000 pcs per month
4.Free sample one piece is avaible ( but you need pay to us the sample fee and freight charge first to show the sincerity to coopertae with each other and we will return back the sample fee to you when we order to us
Application:
--Measuring the volume of cold (hot) water passing through the pipeline.
Feature:
--Removable element structure, easy installation and maintenance, register for universal use within this range detachable
without Removing the meter from the pipeline;
--Dry-dial, Magnetic drive sensitive action, small pressure loss;
--Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a long term service;
--Selected high quality materials for steady & reliable characteristic;
--Technical data conform to international standard ISO 4064.
WORKING ENVIRONMENT:
Water temperature: 0.1°C~40°C (( 0.1°C~90°C forhot water meter)
Water pressure: ≤1Mpa(1.6MPa forspecial requirement)
MAIN TECHNICAL DATA:
| Type | Size(mm) | Class | Qs overload flow | Qp permanent flow | Qt transition flow | Qmin min flow | Mini reading | Max reading |
| m3/h | m3 | |||||||
| LXLC-50 | 50 | A | 30 | 15 | 4.5 | 1.2 | 0.002 | 999,999 |
| B | 3.0 | 0.45 | 0.002 | 999,999 | ||||
| LXLC-80 | 80 | A | 80 | 40 | 12.0 | 3.2 | 0.002 | 999,999 |
| B | 8.0 | 1.2 | 0.002 | 999,999 | ||||
| LXLC-100 | 100 | A | 120 | 60 | 18.0 | 3.8 | 0.002 | 999,999 |
| B | 12.0 | 1.8 | 0.002 | 999,999 | ||||
| LXLC-150 | 150 | A | 300 | 150 | 45.0 | 12.0 | 0.002 | 999,999 |
| B | 30.0 | 4.5 | 0.002 | 999,999 | ||||
| LXLC-200 | 200 | A | 500 | 250 | 75.0 | 20.0 | 0.002 | 999,999 |
| B | 50.0 | 7.5 | 0.002 | 999,999 | ||||
| LXLC-250 | 250 | A | 800 | 400 | 120.0 | 32.0 | 0.002 | 999,999 |
| B | 80.0 | 12.0 | 0.002 | 999,999 | ||||
| LXLC-300 | 300 | A | 1200 | 600 | 180.0 | 48.0 | 0.002 | 999,999 |
| B | 120.0 | 18.0 | 0.02 | 9,9 |
||||
