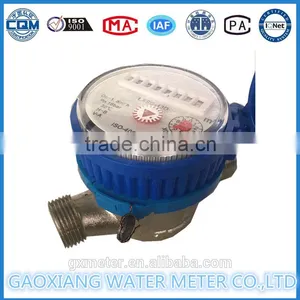

High Quality Single Jet Water Meter Ardal Material Meter
US$ 8 - 15
MOQ: 600 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
gaoxiang
Model Number:
LXSG
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DN15mm 20mm Single Jet Brass Body Material China SupplierNegotiableMOQ: 1 -
Single Jet Dry Dial Type Water Meter Brass BodyUS$ 8 - 15MOQ: 600 Pieces
-
Single Jet Water Meter Cold (hot) Water Meter With Connecters Supplier's ChoiceUS$ 7.3 - 12.3MOQ: 600 Pieces
-
Single Jet Dry Dial Class B Domestic Water MeterUS$ 4.1 - 7.5MOQ: 100 Pieces
-
Single Jet Dry Type Domestic Water Flow Meter DN15-DN25US$ 4.1 - 7.5MOQ: 100 Pieces
Place of Origin
Shandong, China
Brand Name
gaoxiang
Model Number
LXSG
Application:
Measuring the volume of cold potable water passing through the pipeline
Quality:
•Magnetic drive, able to keep clear reading for a long time, 360 degrees free rotating register
counting.Available in hot water meter, The main technical data refer to cold water meter.
•Technical data conform to International Standard ISO4064 class B
Working condition:
temperature:≤90℃ for hot water meter
Pressure:≤1.6Mpa
Maximum Permissible Error:
Qmin→Qt(ex Qt)=±5%;
Qt→Qs(both included)=±2% or ±3%(hot water)
Qmin=Min Flow, Qt=Transition Flow, Qs= Max Flow.
Main technical date
Dimensions and weight
| Tpye | Meter Size | class | Maxflow | Nominal Flow |
Transitional Flow |
Min Flow | Min Reading |
Max Reading |
|---|---|---|---|---|---|---|---|---|
| mm | m3/h | L/h | m3 | |||||
| LXSC-13D | 13 | B | 3 | 1.5 | 120 | 30 | 0.0001 | 99999 |
| LXSC-20D | 20 | B | 7 | 2.5 | 200 | 50 | 0.0001 | 99999 |
| LXSC-25D | 25 | B | 5 | 3.5 | 280 | 70 | 0.0001 | 99999 |
| LXSC-32D | 32 | B | 12 | 6.0 | 480 | 120 | 0.0001 | 99999 |
| LXSC-40D | 40 | B | 20 | 10 | 800 | 200 | 0.0001 | 99999 |
| Type | Size | Length | Heigh | Width | Connecting Thread | Weight | ||
|---|---|---|---|---|---|---|---|---|
| DN | L | L1 | H | W | Connectors | Body | ||
| mm | kg | |||||||
| LXSC13D | 13 | 174/204 | 80/110 | 88 | 80 | R 1/2 | G 3/4B | 0.70 |
| LXSC-20D | 20 | 234 | 130 | 88 | 80 | R 3/4 | G 1B | 0.85 |
| LXSC-25D | 25 | 280 | 160 | 96 | 80 | R 1 | G 1 1/4B | 1.47 |
| LXSC-32D | 32 | 284 | 160 | 123 | 110 | R 1/4 | G1 1/2B | 2.56 |
| LXSC-40D | 40 | 331 | 200 | 123 | 110 | R1 1/2 | G 2B | 2.9 |
