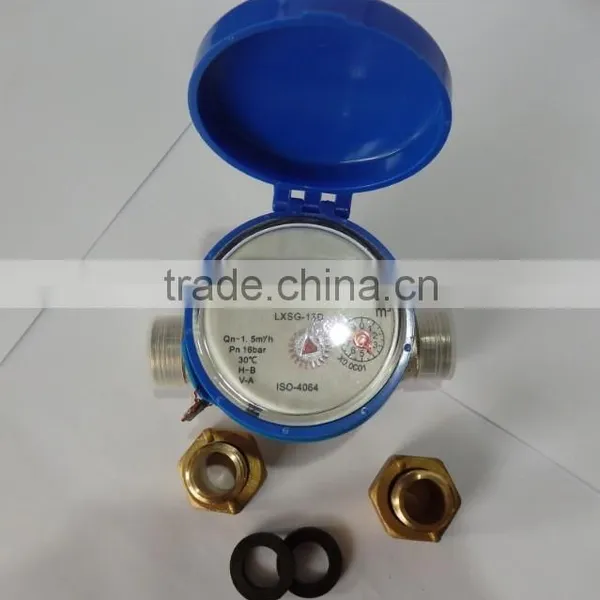

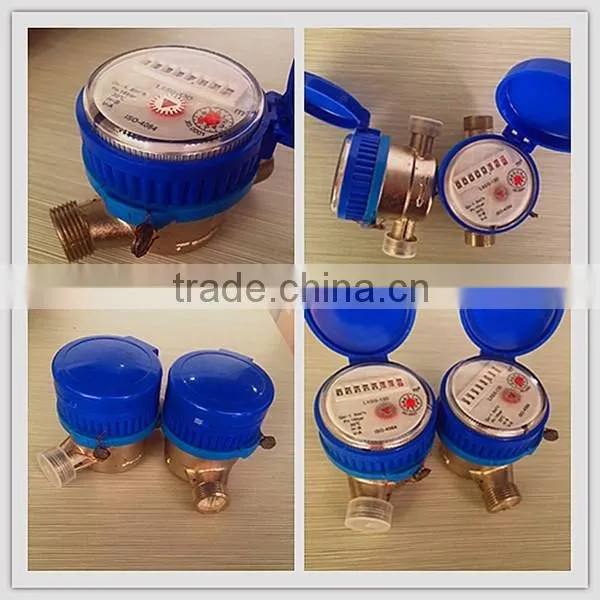

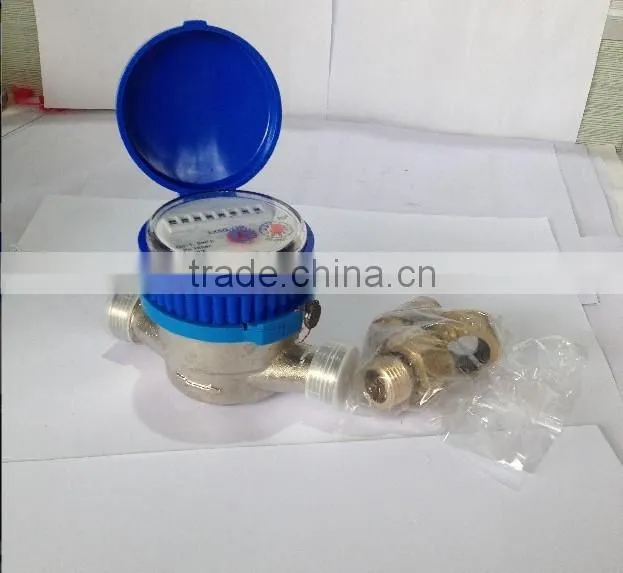

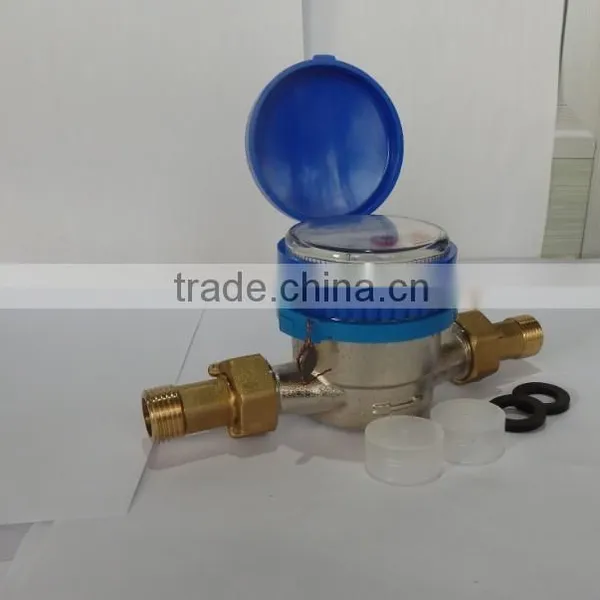

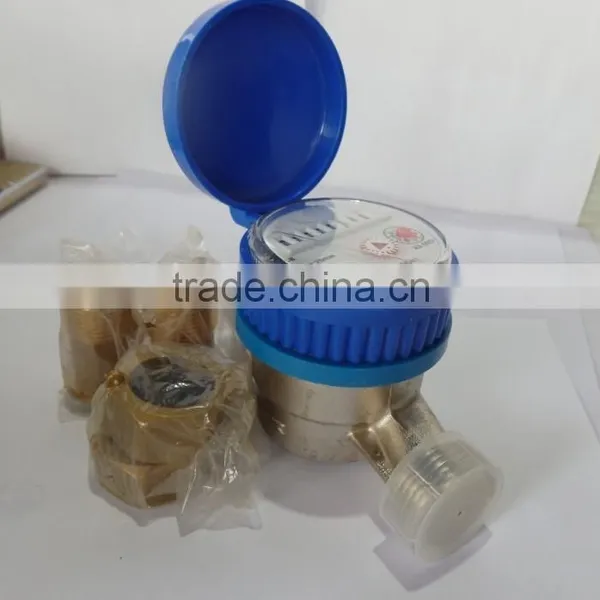

Mini Water Meters In Dry Dial Brass Material
Mini Water Meters In Dry Dial Brass Material
What is the details for Metal body water meters single jet cold hot water ?
Quick Details Place of
Origin: Shandong, China (Mainland)
Brand Name:Gaoxiang
Model Number: LXSG 13D Structure:
brass Body ; Plastic Cap Usage:
Water Standard or Nonstandard: ISO 4064 Class B
Product Name: LXSG 13D single jet dry water meter Water meter with copper shiel

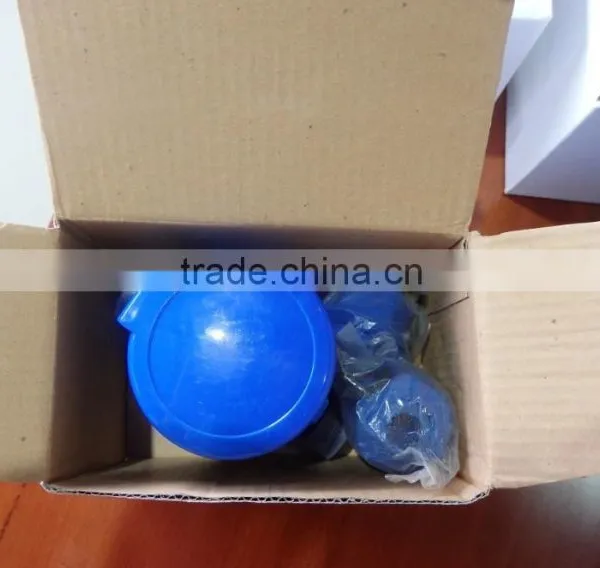

Packaging & Delivery :
Packaging Detail: Packing in export carton Delivery Detail: 3-15 days,depend on quantity.
Features: 1. Dry dial ,magmatic drive , resistance to the exterior magnet interference 2. water meter single jet 3. Selected the high quality materials for steady and reliable characteristic 4. Vacuum seald register ,ensure the dial keep free from fog and keep reading clear for longterm service. 5.Measuring accuracy can conform to ISO 4064 Class B standard 6.inner and outer adjusting for option 7. Small in size ,light in weight Working Condition Water temperature:≤50°c for cold water meter Water temperature:≥90°c for hot water meter Working pressure: ≤ 1.6Mpa Indication Error At low zone is±5% from minimum flow rate(qmin)to transitional flow rate(qt)exclusive boundary At high zone is±2% from transitional flow rate(qt) to overload flow rate(qs)
Details Technical Data for Water Meter Single Jet
| MAIN TECHNICAL DATA | |||||||
| Meter sizeDia DN (mm) | Class | Qs Overload Flow | Qp Nominal Flow | Qt Transitional Flow | Qmin Min Flow | Min Reading Lectura | Max Reading Lectura |
| m3/h | 1/h | m3 | |||||
| 13 | A | 3 | 1.5 | 150 | 60 | 0.0001 | 99999 |
| B | 120 | 30 | |||||
| 20 | A | 5 | 2.5 | 250 | 100 | 0.0001 | 99999 |
| B | 200 | 50 | |||||
| 25 | A | 7 | 3.5 | 350 | 140 | 0.0001 | 99999 |
| B | 280 | ||||||
| DIMENSIONS AND WEIGHT | |||||||
| Meter size DiaDN(mm) | Llength | BWidth | HHeight | Connecting ThreadD | Weight/kg | ||
| mm | |||||||
| 13 | 110 | 80 | 80 | G3/4"B | 0.7 | ||
| 20 | 130 | 80 | 80 | G1"B | 0.95 | ||
| 25 | 160 | 80 | 93 | G13/4"B | 1.4 | ||
Why you choose us - Gaoxiang Water Meter Co.,LTD ?
MOQ: We could accept your trial order,then you can take this opportunity to check the quality of our products & service of our company Logo: Buyer's logo imprint accepted Sample Policy: We can supply you sample for checking quality,if you pay for the sample & sample freight. we will deliverto you in 1-3 days after we got your payment. Lead time: The normal Lead time is 15-30 days , which depends on your quantity. Payment terms: L/C, T/T, Western Union, MoneyGram, Paypal. Shipping: We can arrange the shipping by Courier ( DHL, UPS, Fedex , TNT etc. ), by air or by sea for you. Please tell us which shipping way that you want and your detailed address, your nearest airport or seaport. List Of Competitive Advantage: We are factory, can provide you high quality, best price Professional employee and effective management Professional trading service Prompt delivery Good service & reputation Large production line
