AMR Automatic Meter Reading For Remote Reading Water Meter
- 100000 Piece / Pieces per Month
- qingdao
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Shandong, China | Brand Name: | gaoxiang | Model Number: | LXLG-15-25mm |
Product Description
What is the details for Remote Reading Water Meter?
Product Description--Water meter remote reading type
Product Features |
No power supply,and accurate meter reading |
--adopting photoelectric direct reading technology,can read the meter window directly. |
Accurate measuring without pulse cumulative erro. |
--No power supply within the meter calculator,no direct contact between electrical part |
direct reading device only working when reading |
Convenient meter reading,improve efficiency and reduce cost |
--The efficiency is 8 times more than the traditional meter reading |
Easy installation and maintenance |
--M-BUS date bus standard,tree structure,convenient installation and maintenance. |
Common two-core wire connecting,indiscriminating the positive and negative polarity,finish data |
transportation and meter calculator power supply at the same time. |
--No need to initialize,free set the meter calculator address,small workload to maintain meter reading |
system. |
--Multi-meter reading methods to be chosen by users. |
Prepaid water charges ,ladder billing |
--preset water price level,charging by split hase |
Full range wide application |
--photoelectrical direct reading function could be adopted to all kinds of meters |
Performance parameter |
optical flow performance parameter table |

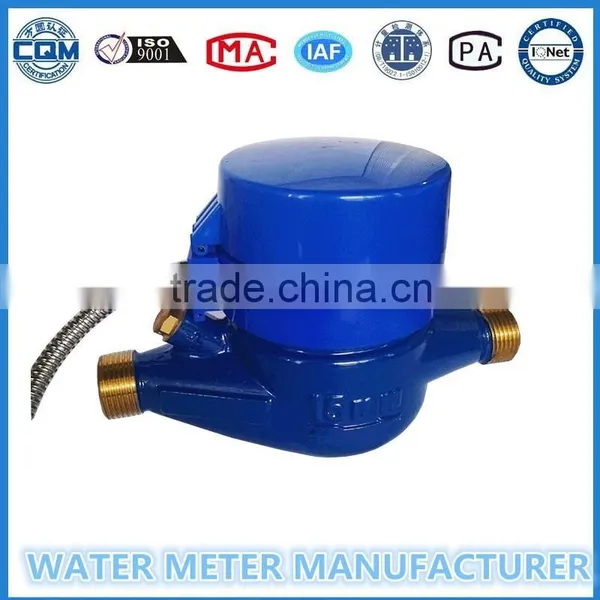

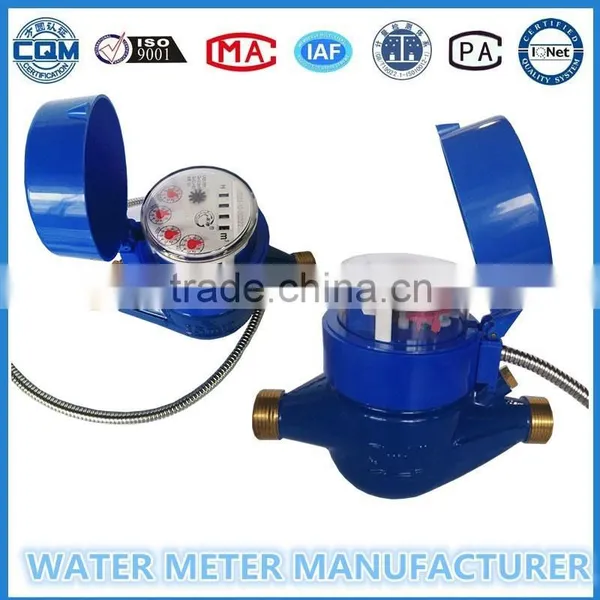

Our Product Image
DN mm | Accuracy Grade | Qmax 1/h | Qn 1/h | Qt 1/h | Qmin 1/h |
15 | 2 | 3125 | 2500 | 40 | 25 |
20 | 2 | 5000 | 4000 | 64 | 40 |
25 | 2 | 7875 | 6300 | 100 | 63 |
32 | 2 | 12500 | 10000 | 160 | 100 |
40 | 2 | 20000 | 16000 | 256 | 160 |
50 | 2 | 31250 | 25000 | 400 | 250 |
Q3/Q1=100 Q2/Q1=1.6 Q4/Q3=1.25
5. Working pressure: 1.0 Mpa
6. Loss of pressure: ≤0.1 Mpa
7. Indicating error:
at low zone of Qmin to Qt (not including) is ±5%
at high zone of Qt to Qmax is ±2%
8. Dimension and Weight for Remote Reading Water Meter
Item No. | Unit | LXSY-15 | LXSY-20 | LXSY-25 | LXSY-32 | LXSY-40 |
DN | mm | 15 | 20 | 25 | 32 | 40 |
Total Length | mm | 260 | 300 | 345 | 365 | 373 |
Length | mm | 165 | 195 | 225 | 230 | 245 |
Width | mm | 95.5 | 95.5 | 100 | 104 | 120 |
Heigth | mm | 105.5 | 107.5 | 116.5 | 117 | 151 |
connecting screw | inch | G3/4″ | G1′ | G1′1/4 | G1′1/2 | G2′ |
Weight | kg | 1.46 | 1.75 | 2.51 | 3.6 | 4.61 |
Comparison of 2 type Remote reading water meter
Comparison | Pulse Output Water meter | Photoelectric Direct Reading Water Meter |
Electromagnetic interference | Pulse signal susceptible to external electromagnetic interference during transmission | Materials not magnetic sensor, meter reading data instantly, without outside electromagnetic interference |
Power | Must maintain uninterrupted power supply, the loss of power will cause the system to data errors | Systems usually do not work, no electricity, no power ,when reading the meter ,the power will supply ,after reading it will stop supply power |
Meter reverse | when water supply is cut off ,the meter will possible reversal and couse secondary pulse signal, resulting in measurement error | Directly read the pointer value or the figure show on the meter face plate, without water meter reverse impact |
Demagnetization phenomenon | With the extension of the use of small magnets,it will appear demagnetization ,can not send out the output pulse normally, resulting in an error | Direct-reading meter, the sensor is not magnetic material, there is no demagnetization phenomenon |
Accuracy | Due to the above reasons, resulting in inconsistencies of the reading data between the meter and the computer shows | Direct-reading meter reading similar way as the human eye, so between the meter shows the number of data and computer keep the same. |
Price | Cheap | expensive |
MOQ:
We could accept your trial order,then you can take this opportunity to check the quality of our products & service of our company
Logo:
Buyer's logo imprint accepted
Sample Policy:
We can supply you sample for checking quality,if you pay for the sample & sample freight. we will deliverto you in 1-3 days after we got your payment.
Lead time:
The normal Lead time is 15-30 days , which depends on your quantity.
Payment terms:
L/C, T/T, Western Union, MoneyGram, Paypal.
Shipping:
We can arrange the shipping by Courier ( DHL, UPS, Fedex , TNT etc. ), by air or by sea for you.
Please tell us which shipping way that you want and your detailed address, your nearest airport or seaport.
List Of Competitive Advantage:
We are factory, can provide you high quality, best price
Professional employee and effective management
Professional trading service
Prompt delivery
Good service & reputation
Large production line
Welcome to visite our factory
