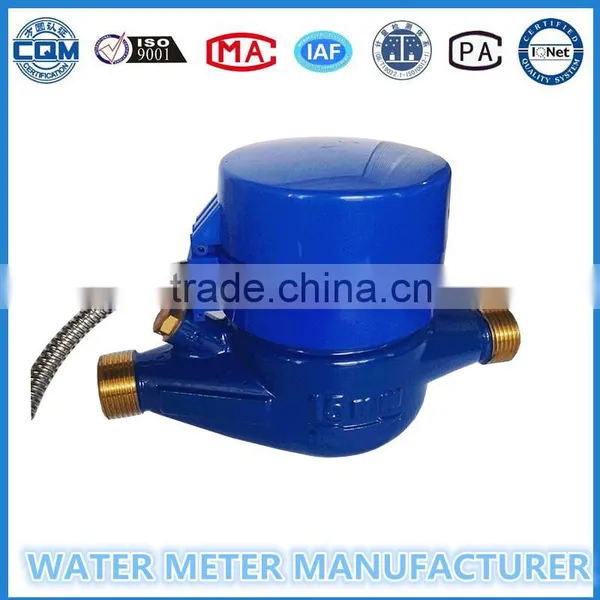

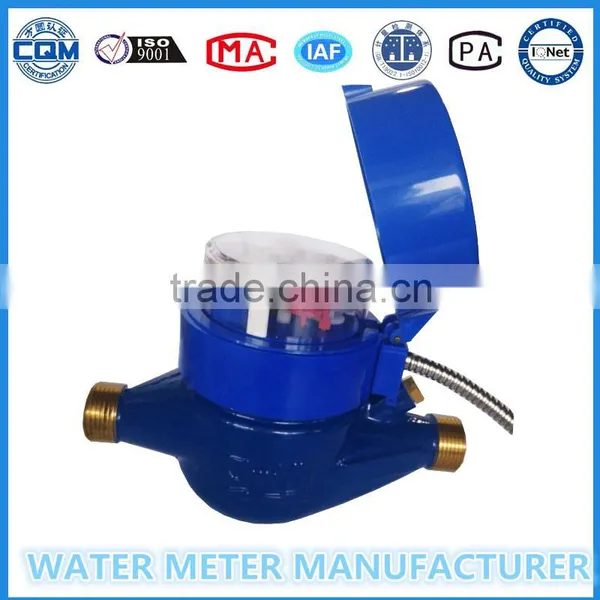

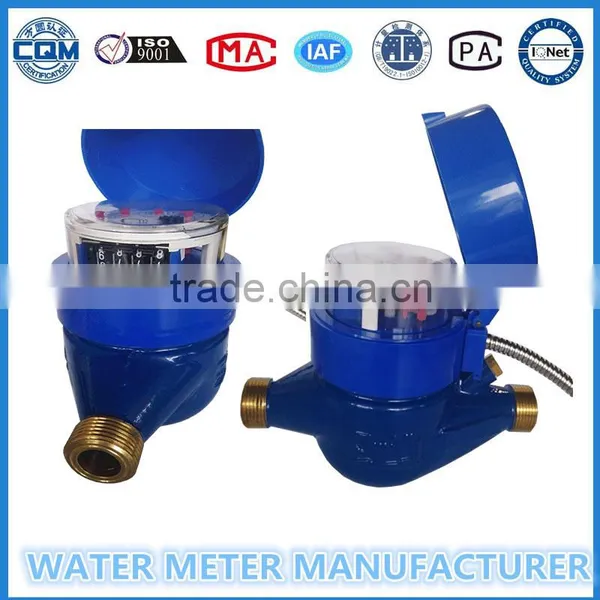

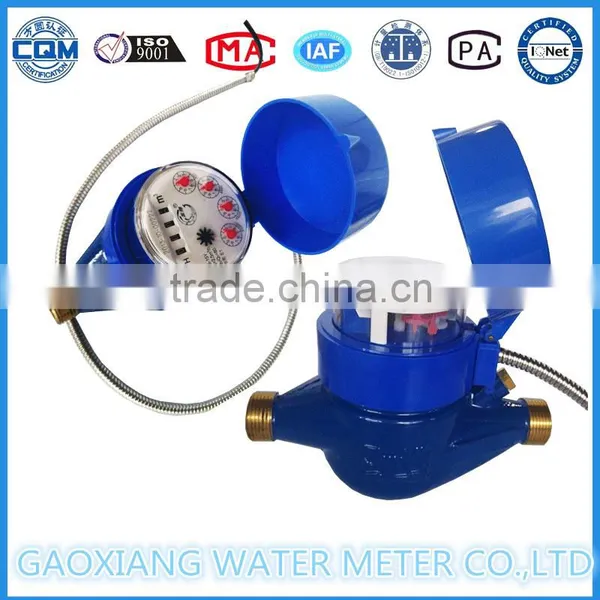

Help CenterDN15MM High Accurate Wired Remote Water Meter
Related Products
-
Cold Water Meter Wet Type Remote Reading Water MeterUS$ 31.5 - 35.5MOQ: 1000 Pieces -
Remote Reading Water Meter and English SystemUS$ 31.5 - 35.5MOQ: 1000 Pieces
-
ARM Meter Reading Remote Reading Water MeterUS$ 47.5 - 98MOQ: 1000 Pieces
-
Photoelectric Direct Remote Reading Water Meter With Motor ValveUS$ 20 - 80MOQ: 1000 Pieces
-
M-BUS,RS485 AMR Remote Reading Water MeterUS$ 20 - 80MOQ: 1000 Pieces
M-bus water meter, mbus water meter, RS-485 remote water meter !!
Automatic Message Recording (AMR) water meter
Direct remote reading water meter
Remote reading water meter with motor valve
AMR prepaid water meter
Product details:
1. Material: All brass, wet dial
2. working condition: Temperature no more than 50c for cold water meter
3. Measured by cubic meter
4. Quantity of flow:
|
DN mm |
Grade |
Qmax m3/h |
Qn M3/h |
Qt m3/h |
Qmin m3/h |
| 15 | Class B | 3.125 | 2.5 | 0.050 | 0.032 |
| 20 | Class B | 5 | 4 | 0.080 | 0.050 |
| 25 | Class B | 7.875 | 6.3 | 0.126 | 0.079 |
Q3/Q1=80, Q2/Q1=1.6, Q4/Q3=1.25
5. Working pressure: 1.0 Mpa
6. Loss of pressure under Q3≤0.063 Mpa
7. Indicating error: at low zone of Qmin to Qt (not including) is±5%, at high zone of Qt to Qmax is±2%
8. Dimension and Weight:
| Item No. | Unit | LXSY-15 | LXSY-20 | LXSY-25 |
| DN | mm | 15 | 20 | 25 |
| Total length | mm | 260 | 300 | 345 |
| Length | mm | 165 | 195 | 225 |
| Width | mm | 95.5 | 95.5 | 100 |
| Height | mm | 105.5 | 107.5 | 116.5 |
| connecting screw | inch | G3/4'' | G1'' | G1'1/4 |
| Weight | kg | 1.46 | 1.75 | 2.51 |
Product Features:
1. Photoelectric direct reading technology, reading the data from the screen directly and no accumulative error.
2. No power supply device inserted, get power only at the instant of reading, accurate meter reading.
3. The part of electricity is separated from the measuring part, it is assure the high stable measuring and antimagnetic interference.
4. Have remote control function, which can take two type management models for users: prepaid or after-use paid.
5. M-bus type, normal two core cable connection, wiring tree structure, easy maintain.
6. Prepaid water charges, ladder billing.
7. Full range,wide application.
8. Can solve the now market issues: difficult meter reading and water stealing, monitor the water using all the time as request.
9. Can close or open the valve through the management system, so to realize "prepaid"
Performance Parameter:
1. Type of data gathering: use the opposed photoelectric sensing technology which makes more accurate collected data.
2. Data display type: mechanical accumulative display, network remote display.
3. Data upload type: handy concentrator or PC or telephone communication or GPRS
4. Interface type: M-BUS or RS-485
5. Power on waiting time: <3S
6. Single reading time: 280ms
7. Working pressure: 1.0MPa.
8. Ambient temperature: ≤93 %RH

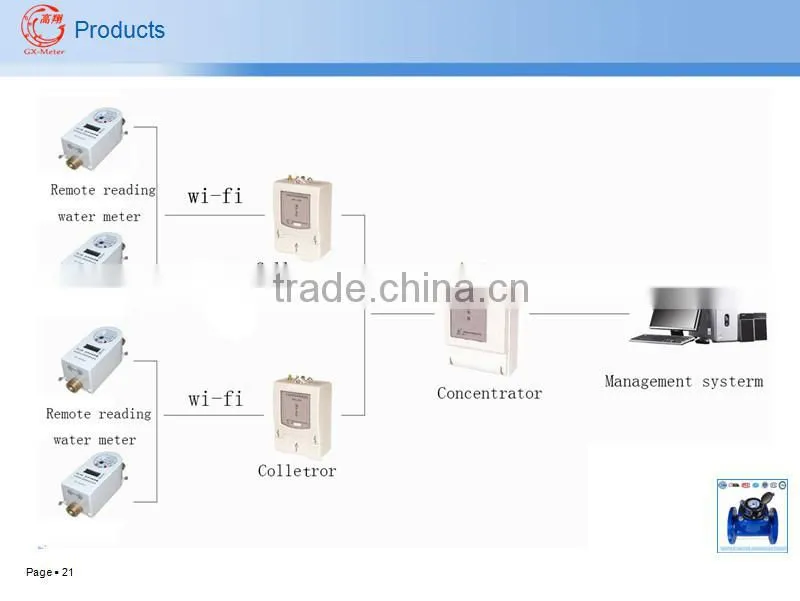

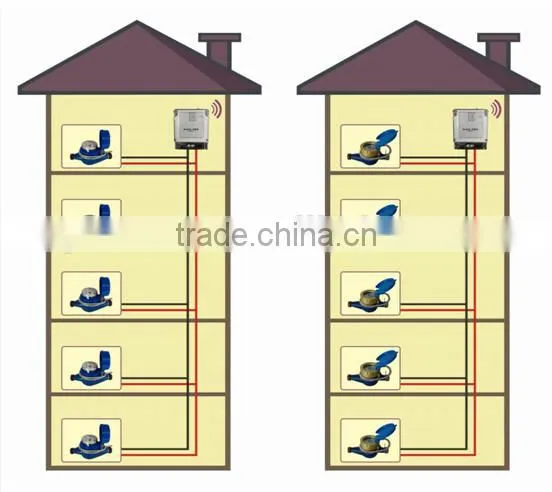

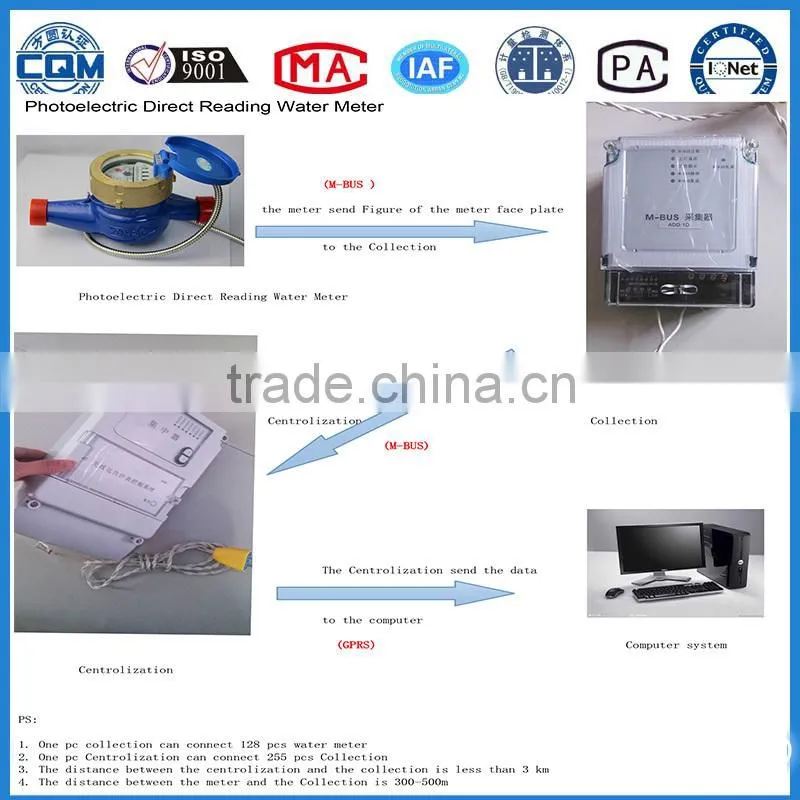

System network structure is as follows:
About us:

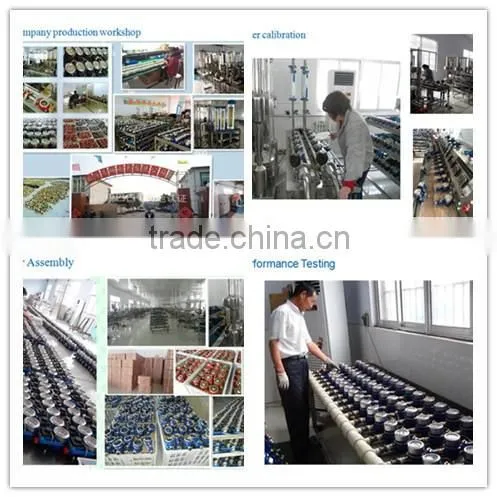

We Linyi Gaoxiang Water Meter Co.,Ltd was founded in 2005, and we are a professional manufacturer of intelligent water meters and heat meters, with the capacity of product development, casting, CNC machines, testing and assembling. The company locates in high quality water meter base, the town of Baishabu, Lanshan district, Linyi city, Shandong Province. The factory covers 30 thousand square meter with 300 efficient staff. Our advanced production equipment of more than 70 CNC machine and more than one hundred testing machines for DN15-25, DN32-40, DN50-200 water meter and heat meter. All we have can satisfied with the demand of kinds of types of water meters and heat meters with the daily output of 5000 pieces. Under our constant effort on researching, till now we applied successfully for 16 skill patent on products.
