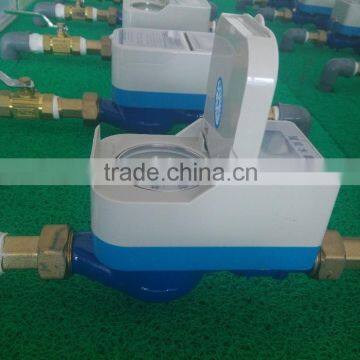

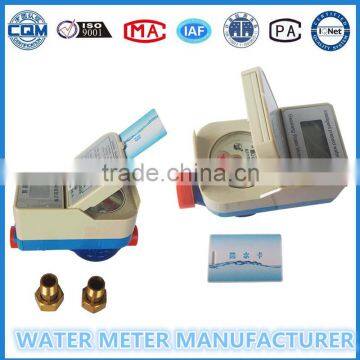

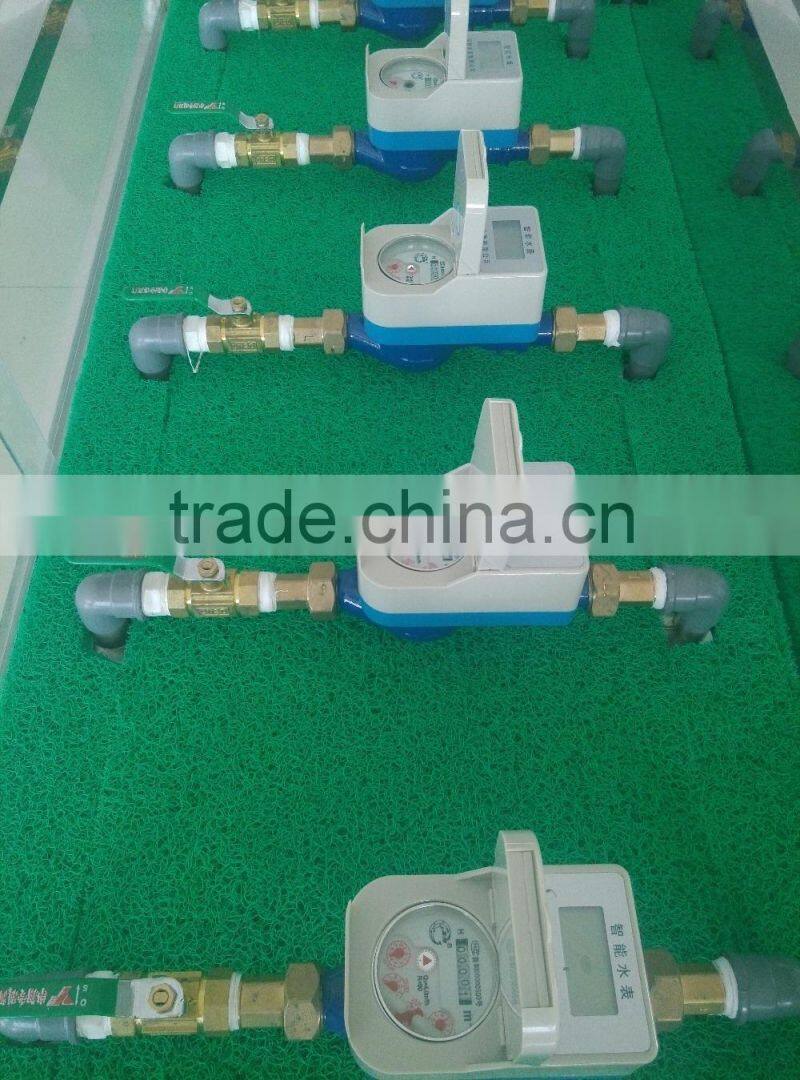

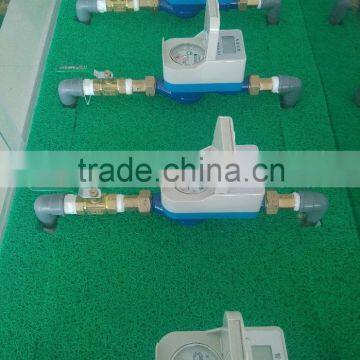

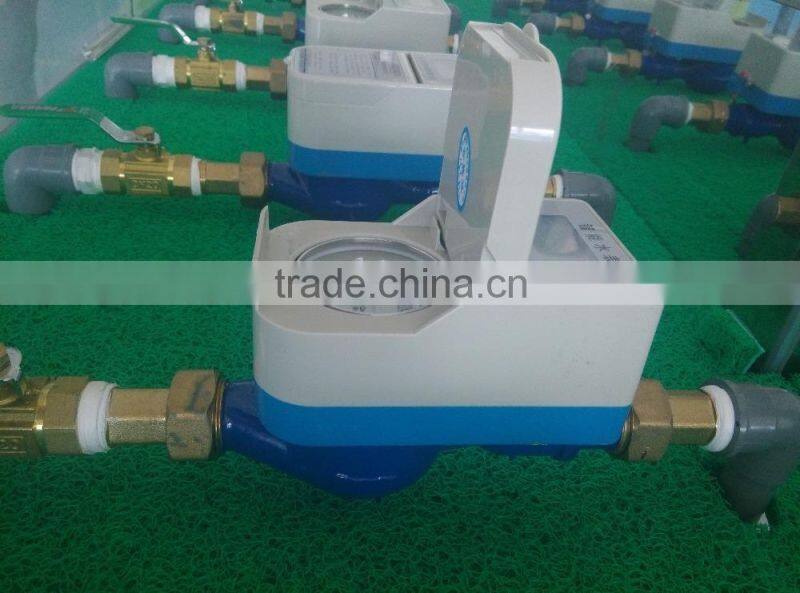

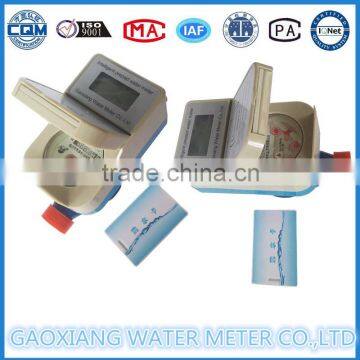

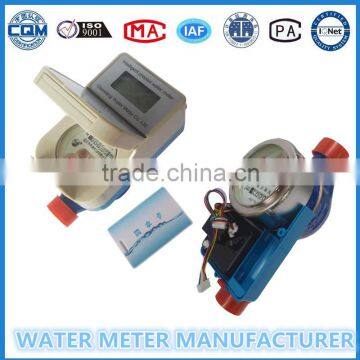

Help CenterISO4067-2005 Prepaid Water Meter,IC Card Smart Water Meter
Related Products
-
IC Card Prepaid Pure Water Meter Size:DN15mm--25mmUS$ 29.99 - 49.99MOQ: 100 Pieces -
GB/T 778.1-2007 Smart Water Meter For Vietnam MarketUS$ 29.99 - 49.99MOQ: 100 Pieces
-
Brass Prepaid Domestic Water MeterUS$ 29.99 - 49.99MOQ: 100 Pieces
-
Size DN20mm Digital Prepaid Smart Water MetersUS$ 29.99 - 49.99MOQ: 100 Pieces
-
Household Water Meter,prepaid Water Meter,ic ic Card Water MeterUS$ 29.99 - 49.99MOQ: 100 Pieces
SPECIFICATION
Multi jet, wet dial; Brass body, electronic meter;
Battery life is more than 6 years based on low power consumption design, low battery alarm,;
Accurate measure due to anti-jamming and magnetic features based on non-magnetic sample patents technology;
|
Item |
Functions |
|
|
Display |
LCD screen |
Display status of input water volume, surplus water volume, total volume, payment, closed, open, error, low battery, under attack |
|
Digital show |
maximum total water volume9999.9m3 |
|
|
Water supply control |
Auto closes the valve when water volume is little, and open when inserting new prepaid card. |
|
|
Auto control |
Low battery alarm |
Auto closes the valve when battery is low, prompt to change the battery. |
|
Hardware security |
Auto closes the valve when the pulse line is cut off, and alarm under attack, which must repaired by administrator. |
|
|
Anti magnetic attack |
Auto closes the valve when strong magnetic close to the meter, need inserting card to reopen the meter. |
|
|
Power off detection |
Detecting the circuit after power up to check normal or not. |
|
|
Waterproof |
Reading card as normal even the meter part is in water. |
|
|
Auto maintenance |
Automatic switch valve for discharge once a month. |
|
|
Water quota |
You can set a limit to use water. Unable to input water volume more than limit. |
|
|
Zero-crossing solution |
User information would feedback to the superior software for processing when the valve failure to close in zero-crossing. Extra water volume will be record. |
|
|
Working features |
Moisture-proof pulse line |
The pulse output is not affected by moisture, data will record as normal. |
|
Multi-application card |

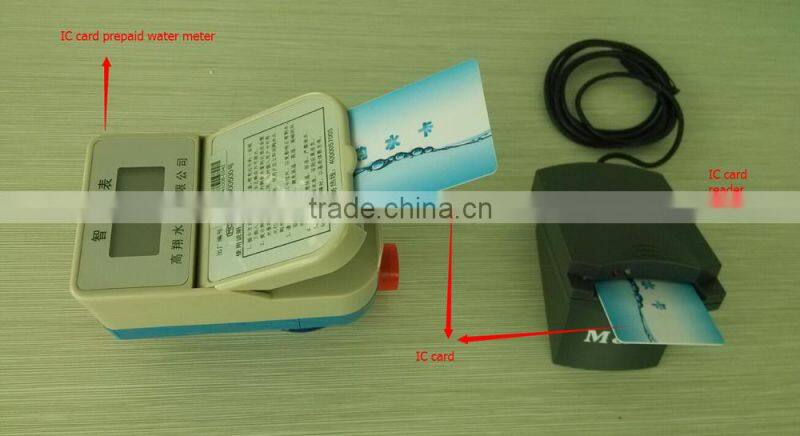

The first inserting of card in a new water meter will write in Card No. User ID, Water Volume. A card would serve in a total of 4 set of cold water meter, hot water meter, heat meter and pure-water meter at the same time. |
|
|
Data Recovery |
When the meter is damaged, please insert the read-in card to collect user data and transfer data by inserting to a new meter. |
|
|
Initialization |
Remove all information in the meter by inserting Initialization card, and set the starting line of water meter. |
|
|
Control card |
When the meter break down, please insert control card to detect fault or to force the valve open. |
|
|
Card Reissue |
You can register a new card with original data if lost the user card. |
Technical Data:
|
Model (DN) |
15D |
20D |
25D |
|
Overload Flow Qmax(m3/h) |
3 |
5 |
7 |
|
Normal Flow Qn(m3/h) |
1.5 |
2.5 |
3.5 |
|
Transitional Flow Qt(m3/h) |
0.12 |
0.2 |
0.28 |
|
Min.Flow Qmin(m3/h) |
0.03 |
0.05 |
0.07 |
|
Technical Standards |
ISO4064, GB/T778, JB/T8802, JJG686, CJ/T133 |
||
|
Valve Life |
≥5,000 times |
||
|
IC Card Life |
≥100,000 times |
||
|
Min.Reading |
0.0001 m3 |
||
|
Max.Reading |
99999 m3 |
||
|
Power Supply |
3.6V lithium battery, life≥6 years |
||
|
Security |
Unique Card/Meter |
||
|
IC Card Life |
≥ 100000 times |
||
|
Static Working Current(uA) |
≤6 |
||
|
Error Qmin to Qt |
≤±5% |
||
|
Error Qt to Qmax |
≤±2% |
||
|
Working Condition |
Indoor using, relative humidity ≤93%, Cold water Meter ≤40ºC,Hot water meter≤90ºC, Water quality conforms to the National tap water standard |
||
Card mouth open, vulnerable to outside attack, anti-interference ability, easy to damp, has been found to have more than 10 kinds of ways to mount an attack on the meter damage. Subsequent management more trouble.
MOQ:
We will accept your trial order or sample order.
Logo:
Customers could customize their logo or lable on the water meter.
Sample Policy:
We will send samples to you( by TNT or DHL or EMS) for your confirmation within 2-7 days after we come to an agreement.
Delivery time:
Start shipping within 20-45 days after signing the contract.
Payment terms:
L/C, T/T, Western Union, MoneyGram, Paypal.
Shipping:
We can arrange the shipping by Courier ( DHL, UPS, Fedex , TNT etc. ), by air or by sea for you.
List Of Competitive Advantage:
•We are factory, can provide you high quality, best price
•Professional employee and effective management
•Professional trading service
•Prompt delivery
•Good service & reputation
•Large production line
After Service:
We will make compensate for you if the accident made by us.
