Home > Instruments & Meters > Meter for Liquid & Gas > Water Meter > High Sensitivity Multi Jet Dry Dial Residential Dorm Drinking Water Meter

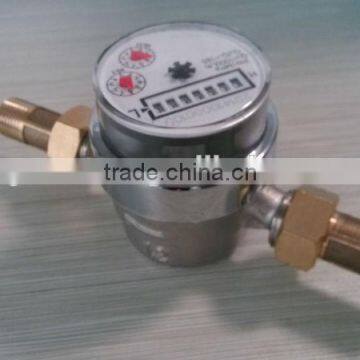

High Sensitivity Multi Jet Dry Dial Residential Dorm Drinking Water Meter
US$ 9.5 - 49.5
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
gangxing, Gaoxiang Meter
Model Number:
LXD-DN15-40-37
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DN15mm Outer Spiral Pattern Volumetric Water MeterUS$ 9.5 - 49.5MOQ: 1000 Pieces -
Volumetric Water Meter Price Made in ChinaUS$ 9.5 - 49.5MOQ: 1000 Pieces
-
Piston Water Meter Price Made in ChinaUS$ 9.5 - 49.5MOQ: 1000 Pieces
-
Plastic Material Volumetric Water Meter PriceUS$ 9.5 - 49.5MOQ: 1000 Pieces
-
Brass Material Piston Water Meter From Water Flow MeterUS$ 9.5 - 49.5MOQ: 1000 Pieces
Place of Origin
Shandong, China
Brand Name
gangxing, Gaoxiang Meter
Model Number
LXD-DN15-40-37
Features:
1.Rotary piston system, long service life;
2.Dry-dial or liquid sealed register, keeps clear reading for long time;
3.High measuring accuracy, the starting flow of the meter is 2 l/h or less;
4.LXH-15-20 can be installed in any position;
5.Brass body or engineering plastic body, optional;
6.m3 or gal, optional ;
7.Remote transmission device can be added upon request;
8.Many kinds of sensors, such as Reed Switch, Hall and Weagand can be supplied upon request
Pulse output may be 1l/pulse ,10l/pulse ;
9.The meters conform to ISO4064 standard Class C or Class D.
2.Dry-dial or liquid sealed register, keeps clear reading for long time;
3.High measuring accuracy, the starting flow of the meter is 2 l/h or less;
4.LXH-15-20 can be installed in any position;
5.Brass body or engineering plastic body, optional;
6.m3 or gal, optional ;
7.Remote transmission device can be added upon request;
8.Many kinds of sensors, such as Reed Switch, Hall and Weagand can be supplied upon request
Pulse output may be 1l/pulse ,10l/pulse ;
9.The meters conform to ISO4064 standard Class C or Class D.
Operation:
A volumetric meter is the device fitted into a closed conduit, which consists of chambers of known volume and a mechanism driven by the flow, whereby these chambers are successively filled with water and then emptied. The water to be measured enters the inlet of the body and its pressure sets the piston into rotation. Every rotational cycle of the piston discharge a fixed volume of water to the meter of body. The number of rotation of the piston is totalized through a reduction gear, to totalize in the register, when the total volume of water is registered.
Working condition:
Water temperature≤45.C
Water pressure≤1MPa
(PN: 1.6MPa/16bar)
pressure loss≤0.1MPa
Accuracy:
From minimum flow-rate (qmin) inclusive, to transitional flow-rate (qt), exclusive:±5%
From transitional flow-rate (qt) inclusive, to overload flow-rate (qs), exclusive:±2%
