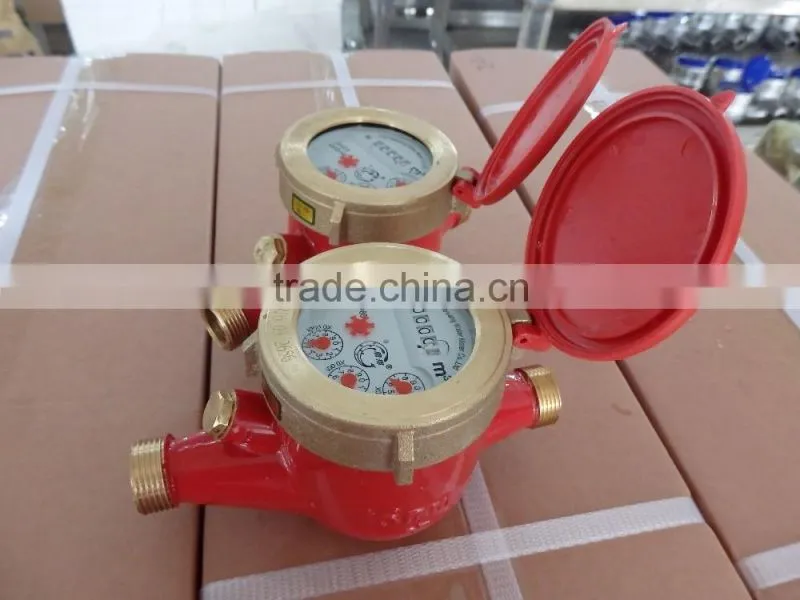

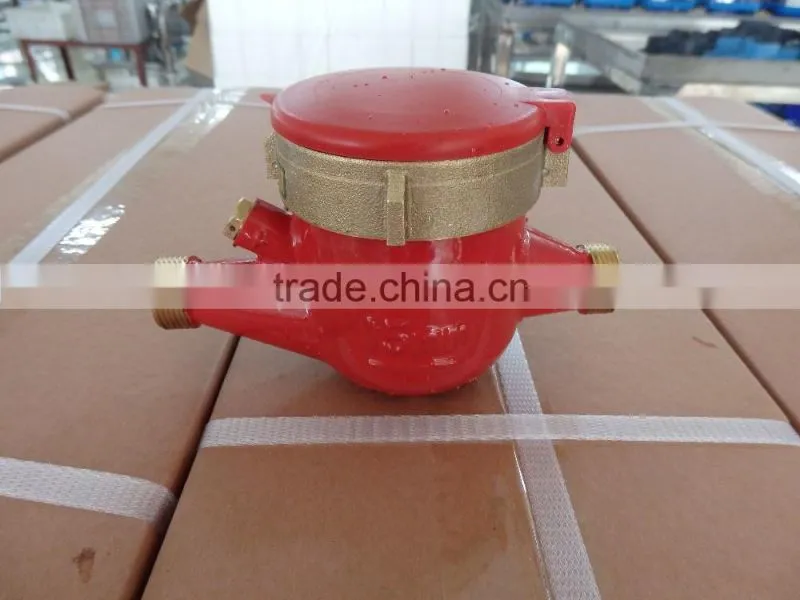

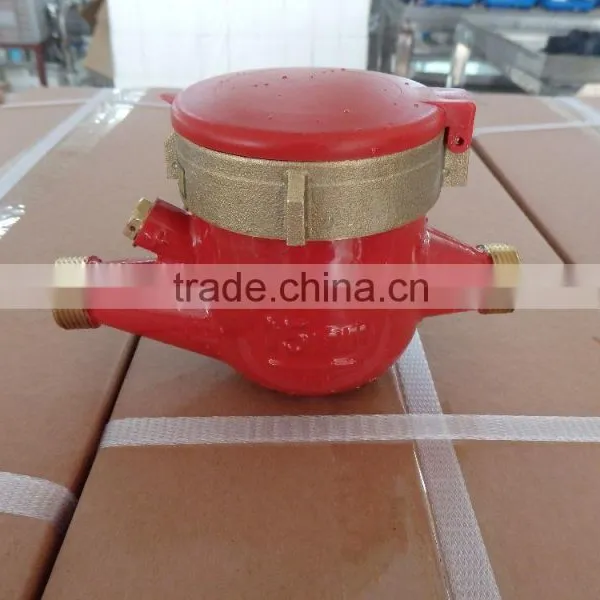

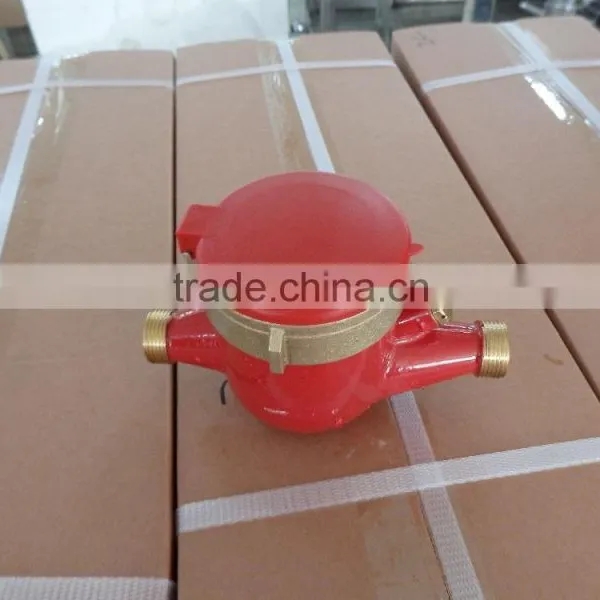

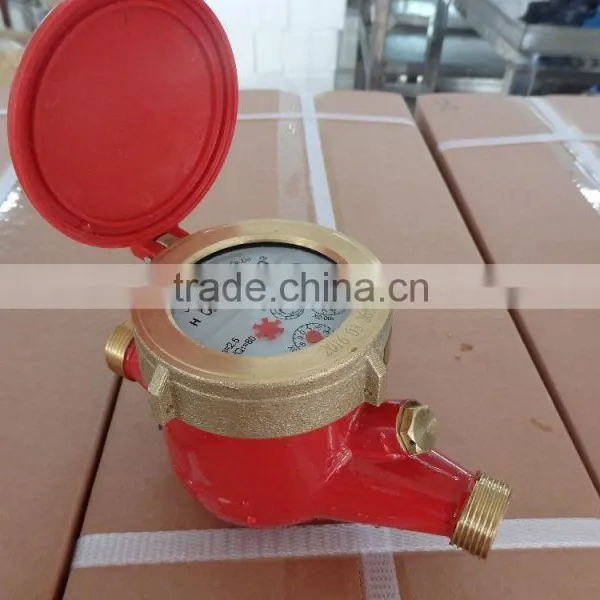

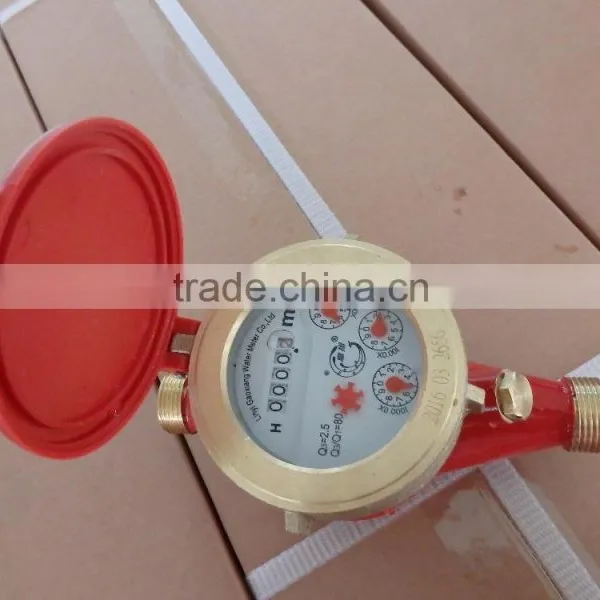

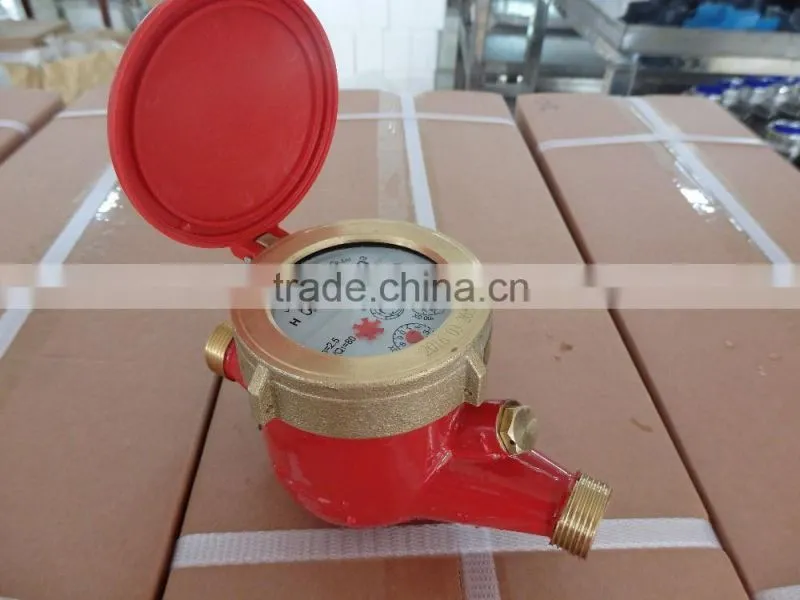

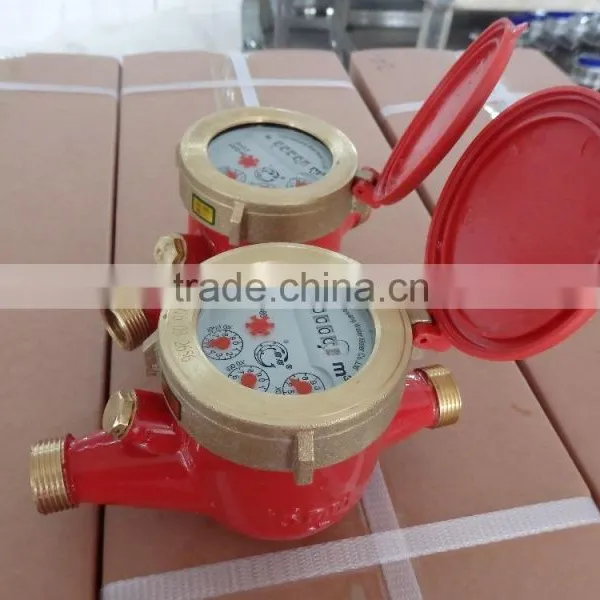

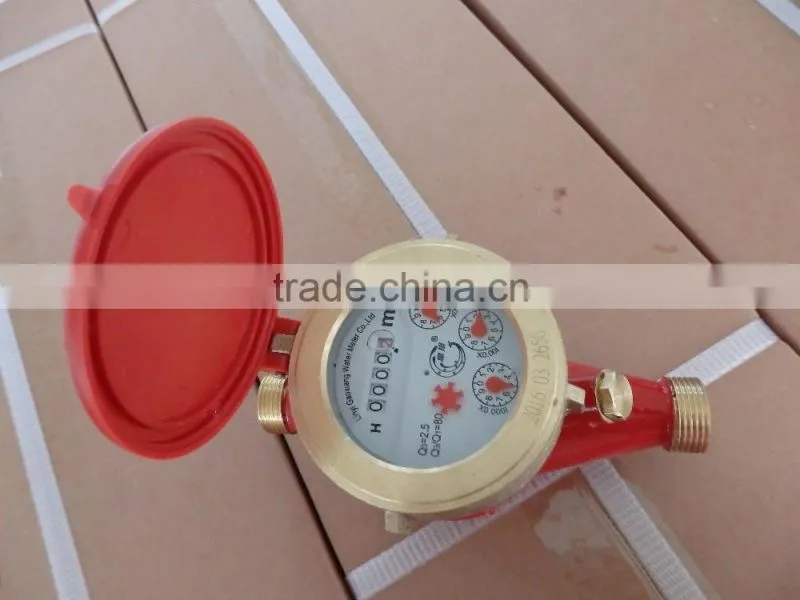

Multi jet vane wheel hot water meter with red body !!
Application:
Used for measuring the total volume of water flow passing through the running water pipeline.
Features:
1. Dry dial or wet dial
2. Multi-jet, magnetic drive, Resistance to exterior magnet interference.
3. Steady, reliable function, long life use and nice appearance, universal used.
4. Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service.
5. Measuring accuracy conform to GB/T778.1∼3-1996 and ISO 4064 Class B standard.
6.outer device
7. Body/fittings/covers: can be iron material or brass material as your request.
Working Conditions:
Water temperature: 0∼40 for cold potable water 0∼90 for hot water (can be 120 if you request)
Water pressure: ≤ 1MPa (1.6MPa on request)
Technical data:
Diameter (DN) |
Class |
Q4 (m³/h) (Overload Flow) |
Q3(m³/h) (Normal Flow) |
Q2(m³/h) (Transitional Flow)
|
Q1 (m³/h) (Min Flow) |
Q3/Q1 |
15 |
B |
3 |
1.5 |
0.12 |
0.030 |
80 |
20 |
B |
5 |
2.5 |
0.2 |
0.050 |
80 |
25 |
B |
7 |
3.5 |
0.28 |
0.070 |
80 |
32 |
B |
12 |
6.0 |
0.48 |
0.120 |
80 |
40 |
B |
20 |
10 |
0.8 |
0.20 |
80 |
Dimension and Weight:
Item No |
Unit |
15E |
20E |
25E |
32E |
40E |
DN |
mm |
15 |
20 |
25 |
32 |
40 |
Total Length |
mm |
260 |
300 |
345 |
365 |
373 |
Length |
mm |
165 |
195 |
225 |
230 |
245 |
Width |
mm |
95.5 |
95.5 |
100 |
104 |
120 |
Heigth |
mm |
105.5 |
107.5 |
116.5 |
117 |
151 |
Connecting Screw |
inch |
G3/4’’ |
G1’ |
G1’1/4 |
G1’1/2 |
G2’ |
Weight |
kg |
1.46 |
1.75 |
2.51 |
3.6 |
4.61 |
Admissible Error Limits:
a) In the lower zone from qmin inclusive up to but excluding qt is± 5%.
b) In the upper zone from qt inclusive up to and including qs is±2% for cold potable water meter (± 3% for hot water meter).
WE HAVE STOCKS NOW SO SAMPLES ARE AVAILABLE NOW !
About Us:
We Linyi Gaoxiang Water Meter Co.,Ltd was founded in 2005, and we are a professional manufacturer of intelligent water meters and heat meters, with the capacity of product development, casting, CNC machines, testing and assembling. The company locates in high quality water meter base, the town of Baishabu, Lanshan district, Linyi city, Shandong Province. The factory covers 30 thousand square meter with 300 efficient staff. Our advanced production equipment of more than 70 CNC machine and more than one hundred testing machines for DN15-25, DN32-40, DN50-200 water meter and heat meter. All we have can satisfied with the demand of kinds of types of water meters and heat meters with the daily output of 5000 pieces. Under our constant effort on researching, till now we applied successfully for 16 skill patent on products.
