Home > Products > Heating Meter > Gaoxiang best heat meters

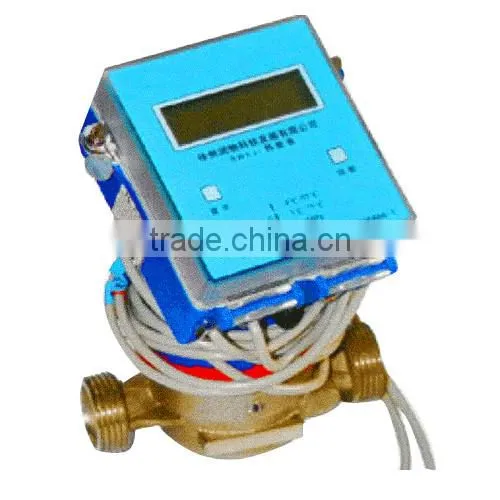

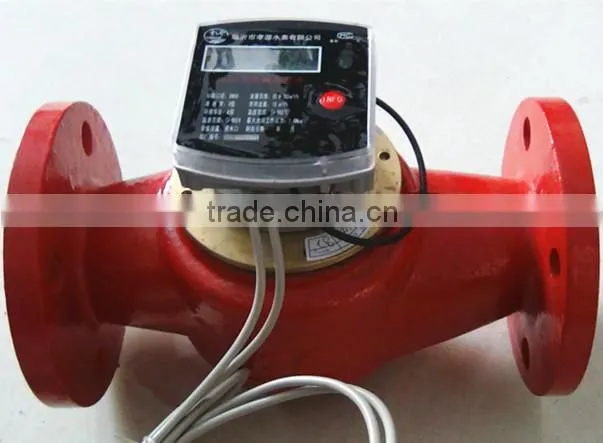

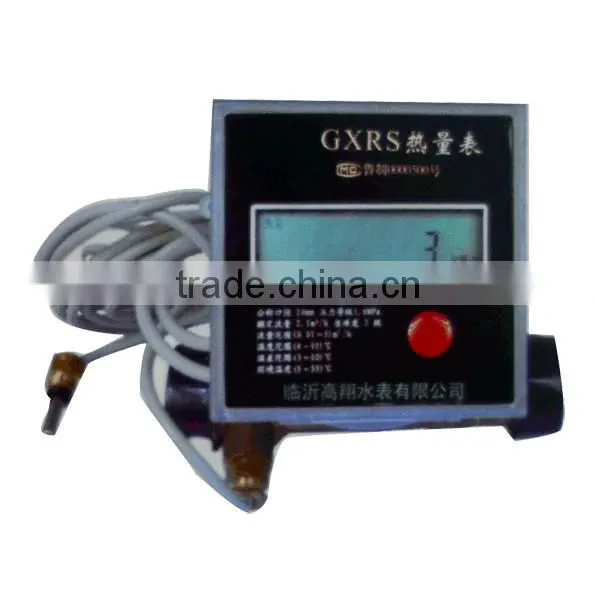

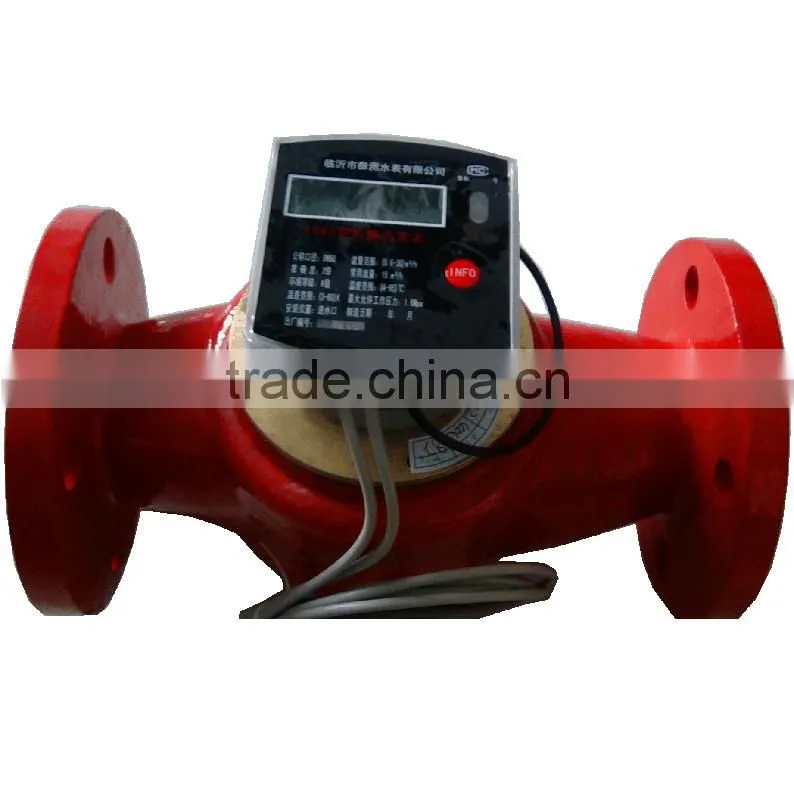

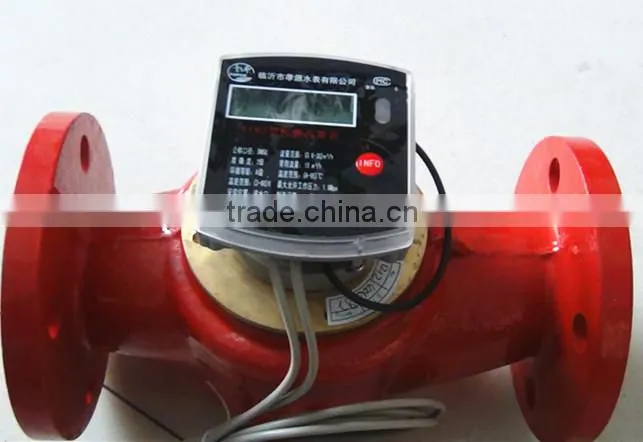

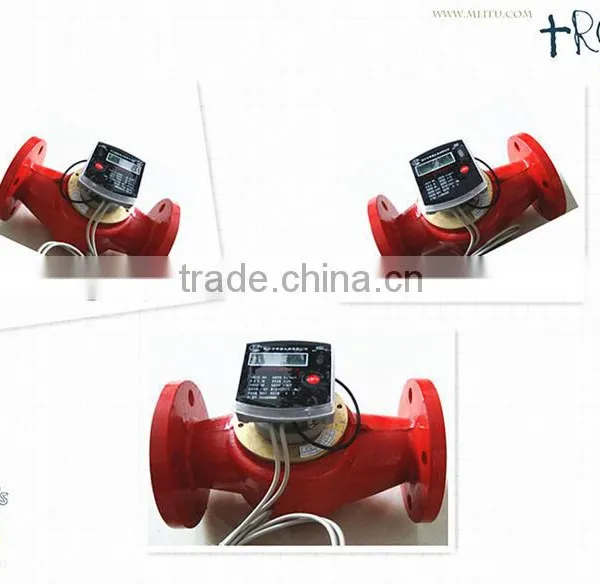

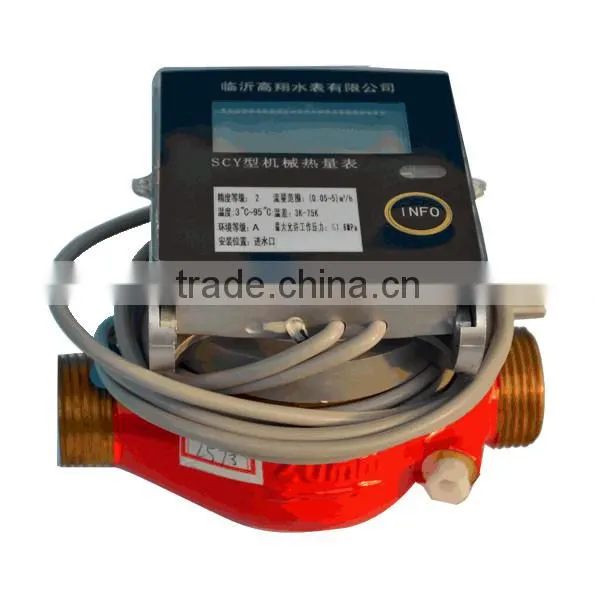

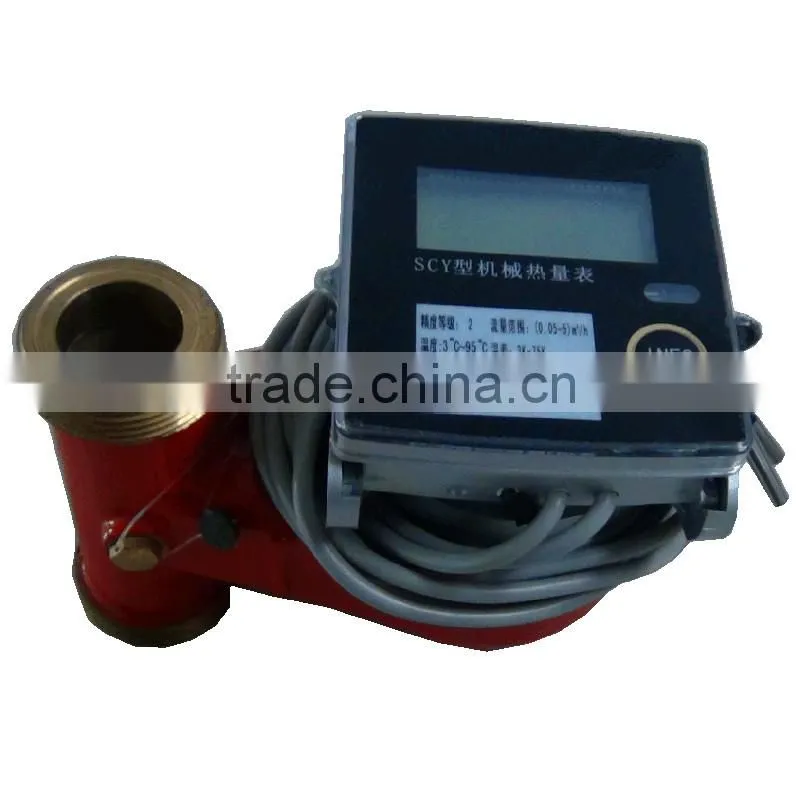

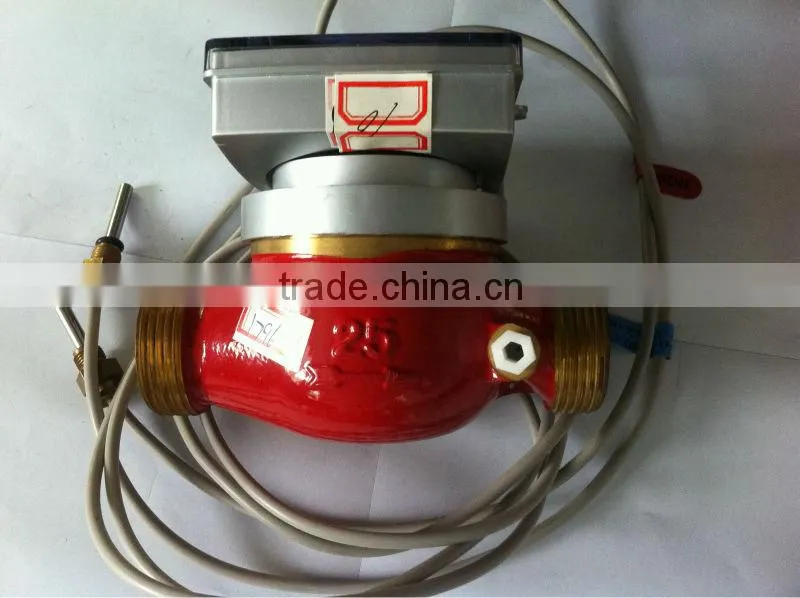

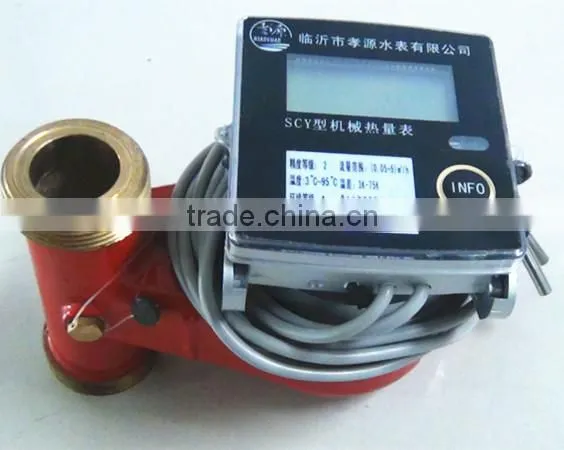

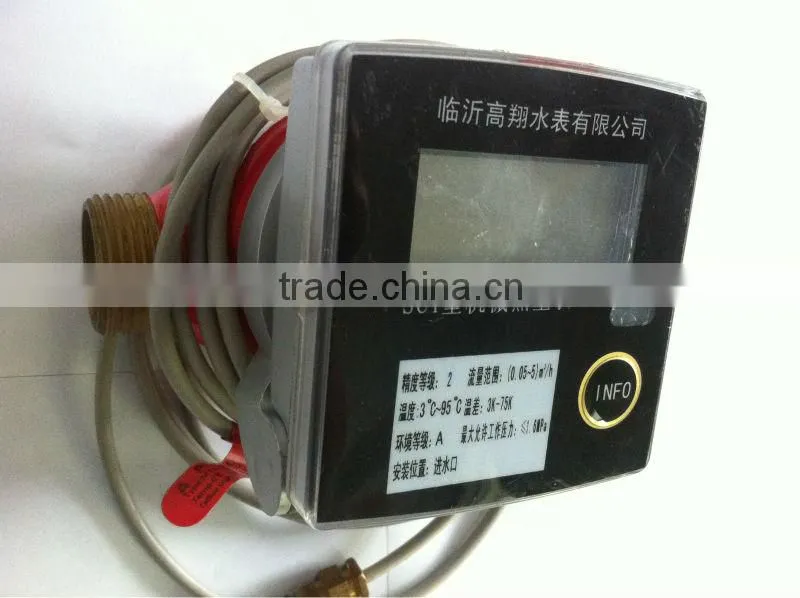

Gaoxiang best heat meters
- 5000 Piece / Pieces per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Shandong, China | Brand Name: | Gaoxiang water meter | Model Number: | DN -50 |
Product Description
Specifications
Working pressure: 1.0 Mpa6. Loss of pressure: aa0.1 Mpa
7. Indicating error:
at low zone of Qmin to Qt (not including) is
Mechanical Series Semi-liquid Sealing Rotary Vane Cold/Hot Water Meter
1. Materials: brass/iron body, ABS inner core, brass sealing ring
2. Working Temperature:
Cold Water Meter ≤30°C,
Hot Water Meter ≤90°C
3. Measured by Cubic Meter
4. Quantity of Flow:
DN mm | Accuracy Grade | Qmax 1/h | Qn 1/h | Qt 1/h | Qmin 1/h |
15 | 2 | 3125 | 2500 | 40 | 25 |
20 | 2 | 5000 | 4000 | 64 | 40 |
25 | 2 | 7875 | 6300 | 100 | 63 |
32 | 2 | 12500 | 10000 | 160 | 100 |
40 | 2 | 20000 | 16000 | 256 | 160 |
50 | 2 | 31250 | 25000 | 400 | 250 |
Q3/Q1=100 Q2/Q1=1.6 Q4/Q3=1.25
5. Working pressure: 1.0 Mpa
6. Loss of pressure: ≤0.1 Mpa
7. Indicating error:
at low zone of Qmin to Qt (not including) is ±5%
at high zone of Qt to Qmax is ±2%
8. Dimension and Weight:
Item No. | Unit | LXSY-15 | LXSY-20 | LXSY-25 | LXSY-32 | LXSY-40 |
DN | mm | 15 | 20 | 25 | 32 | 40 |
Total Length | mm | 260 | 300 | 345 | 365 | 373 |
Length | mm | 165 | 195 | 225 | 230 | 245 |
Width | mm | 95.5 | 95.5 | 100 | 104 | 120 |
Heigth | mm | 105.5 | 107.5 | 116.5 | 117 | 151 |
connecting screw | inch | G3/4″ | G1′ | G1′1/4 | G1′1/2 | G2′ |
Weight | kg | 1.46 | 1.75 | 2.51 | 3.6 | 4.61 |
