Help CenterElectromagnetic Flowmeter
Related Products
- Industry-specific design: suitable for all applications.
- Widest flow range, highest accuracy: diameters from 15mm to 2600mm (0.5 to 102 in.)
- Multifrequency signal processing Option: provides stable readings.
- Submersible sensor: suitable for flooded chambers and pits
- Buriable sensor: eliminates chambers and ensures fast, lowcost installation
- Built-in earthing (grounding) electrode: eliminates the need for earthing (grounding) flanges
- 1-year warranty as standard: high-quality product guarantees reliable maintenance-free operation
- CalMaster compatible: in situ verification of flow meter calibration
- Three internal totalizers : forward, reverse, net; forward & reverse flow rates and comprehensive range of outputs; current, pluse, data & HART: single package satisfying all user display requirements

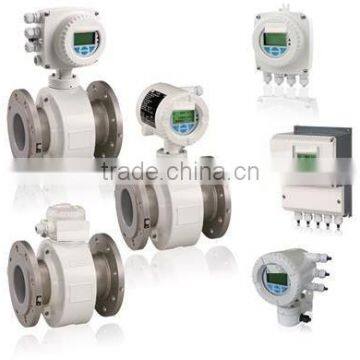

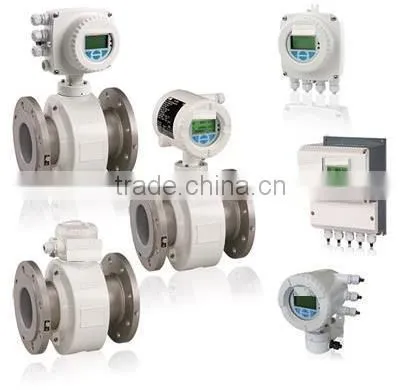

Electromagnetic flowmeter
ProcessMaster FEP300
The modular design of the ProcessMaster FEP300 standard version offers the industry´s widest range of liners electrodes and sizes to meet the needs of even the most demanding process applications in sectors as diverse as chemical, power, oil & gas, pulp & paper and metals & mining.
Available as integral mount design or remote mount design system.
Overview
The powerful transmitter is easy to use and provides the output signal that meets the needs.
ProcessMaster FEP300 is a versatile, reasonably priced, most accurate flow meter tailored for all process industry applications. A flowmeter with base functionality, short delivery and a simple and clearly understandable documentation.
- Versatile and simple configuration
– Through glass configuration eliminating the need to remove the cover and reducing commissioning time
– Soft key based functionality
– "Easy Set-up" function - State-of-the-art memory technology
– Data storage enables transmitter exchange without the need for reconfiguration - Diagnostics for real-life-situations
– Simplified plant trouble shooting
– Status messages in accordance with NAMUR
– Help texts in LCD display - ScanMaster in situ verification software option
– Allows the customer to perform in situ verification of the flowmeter and the plant
Data
General specifications:
- Measuring value error
– Standard 0.4 % of rate, optional 0.2 % of rate - Nominal diameter
– DN 3 to 2000 (1/10 to 80 in.) - Process connection
– Flange in accordance with DIN 2501 / EN 1092-1, ASME B16.5 / B16.47, JIS, AS2129 - Nominal pressure
– PN 10 to 100,
– ASME CL 150, 300, 600, 900, 1500, 2500 - Lining
– Hard rubber, soft rubber, PTFE, PFA, ETFE, Linatex - Communication
– HART, PROFIBUS PA, FOUNDATION Fieldbus - Explosion protection approvals
– ATEX, IECEx, FM, cFM, NEPSI, GOST
Special features:
- Process diagnosis
– Empty pipe and partially filling detection
Software and documentation:
- HART
– Software: DTM*, EDD
– Driver description: Supplementary information - PROFIBUS
– Software: DTM*, GSD,
– Driver description: Supplementary information - FOUNDATION fieldbus
– Software: EDD/CF
*) DSV401 Rx (SMART VISION) is not released with the latest DTM500 Bundle. Please use any latest frame application (e.g. Stand-Alone-Tool ABB DAT200 Asset Vision Basic).
