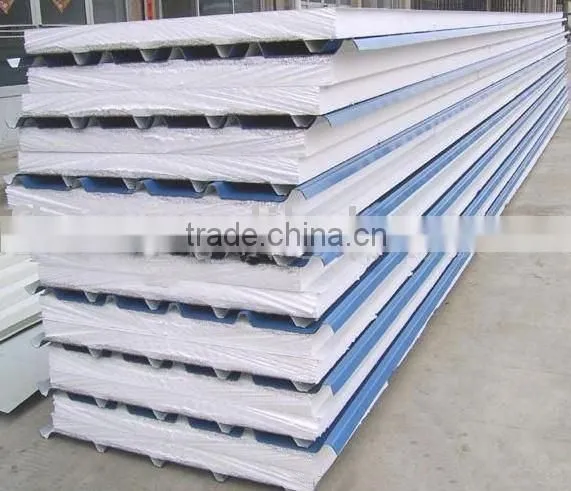

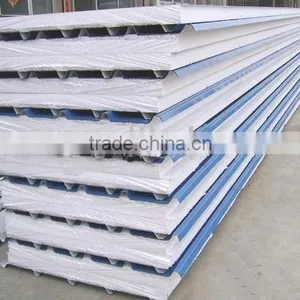

EPS composite plate/sheet/panel

Specifications

Best price and high quality
Light weight, high strength, fast construction and other advantages.

Features:



Polystyrene composite plates fully adopts flame retardancy polystyrene, high unit weight, good flatness, two sides or single side edge banding with steel strip. Light weight, high strength, fast construction and other advantages.



Product Characteristics and Application:

1.Sandwich Panel is composed by three layers;
2.The upper and bottom sheets of this panel are zinc-plated & color-coated steel sheets, with specific core material. The panels are formed by laminating and pressing with 2 components PU glue through forming machinery;
3.The sandwich panel has been a new type of multi-purpose construction material. It is featured with temperature keeping, hot & sound insulation, water-proof and fire-resistant functions as well as light weight and decorative application. It is widely used as the wall or roof for industrial or residential buildings, such as cold storages, industrial workshops, prefabricated houses, etc.



Core Materials Options:
Polystyrene (EPS), Polyurethane (PU), and Rockwool

Type One: Polystyrene Sandwich panel (also called EPS Sandwich Panel)

Connection Types:
1.Wall Panel: Connection with H Bar; Self-insert Connection
2.Roof Panel: Overlap Connection; Bolt-hidden Connection; Self-locked Connection

Type Two: Polyuthane Sandwich panel (also called PU Sandwich Panel)



PS: Polyurethane is the best for temperature keeping and sound insulation among three types of core materials. It is most widely used as the wall or roof for cold storages.



Connection Types:
1. Wall Panel: Connection with H Bar; Self-insert Connection
2. Roof Panel: Overlap Connection; Bolt-hidden Connection; Self-locked Connection



Type Three: Rockwool Sandwich panel

PS: Rockwool is featured with full best fire-resistance among three types of core materials, and with more heating & sound insulation than EPS. It is widely used as industrial workshops and warehouses for inflammable products, etc.



Connection Types:
1 Wall Panel: Self-insert Connection
2.Roof Panel: Corrugated Bolt-hidden Connection



Density	14-18lg/m3
Thermal conductivity	0.041w/m*k
Oxygen index	OL>34.0
Dimension	Meet GB10801-89 standard
Combustibility	B2 class



Pls send us your specification and size requirements, to quote our best price offer.
