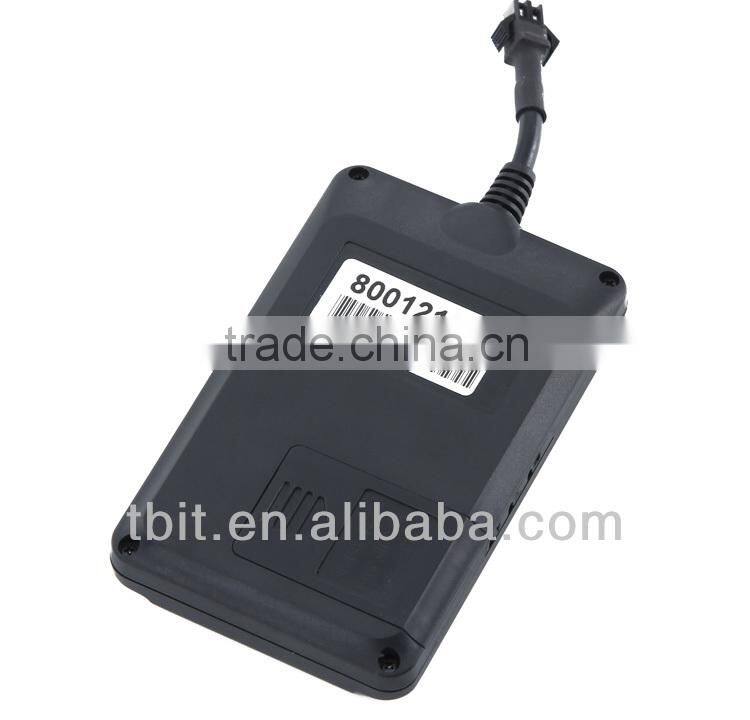

Help CenterChina Direct Easy Installation U-traveller Auto Car Key Gps Tracker
Related Products
-
GPSGPRS VehicleTracker, GPS Tracker, GPS Car Tracker, Offer Free Online Tracking SoftwareUS$ 32 - 49MOQ: 20 Pieces -
Hot Realtime Auto Vehicle Gsm&gps Attenna Gps Tracker for WholesalesUS$ 1 - 45MOQ: 20 Pieces
-
New Car Gps Tracker Smallest Size and Oil Cut off Tracker 2016US$ 1 - 32MOQ: 10 Pieces
-
New Car Gps TrackerUS$ 1 - 56MOQ: 50 Pieces
-
Gsm and Gps Cheap Gps Car Tracker T1/T2US$ 1 - 45MOQ: 20 Pieces
Specifications
1.Built-in high Ublox sensitive GPS chipset2.Watchdog function,auto reboot
3. Acceleration sensor
4.Real-time tracking
1,GPS tracker Features
Chipset |
UBLOX UBX-G7020 |
Receiver |
L1(1575.42MHz),C/A(1.023MHz) |
Receiver type |
56-channel u-blox 7 engine GPS & QZSS L1 C/A, GLONASS L1OF SBAS: WAAS, EGNOS, MSAS Navigation update rate up to 10 Hz |
Accuracy |
GPS 2.5 m CEP, SBAS 2.0 m CEP |
Sensitivity |
Tracking -162 dBm, Cold starts -148 dBm, |
Speed Accuracy |
0.3m/s |
2,GSM Features
Frequency |
GSM 850/900/1800/1900MHz |
Maximum transmission power |
1W |
3,Main Features
Items |
Specifications |
Dimension |
85mm×52mm×14mm |
Weight |
55g,175g(include accessories) |
Input Voltage |
9-36V |
Standard Operating Current |
<15mA |
Operating Temperature |
-20°C~65°C |
Humidity |
10%~95% |
LED |
3 LED lights to show power, GPS, GSM and other status |
Microphone |
Internal microphone |
Sensor |
Accelerometer |
4,Product Interface Specifications
Power Cable(2 lines)
Red:Positive pole, Connects car 12V/24V
Black:Negative pole, connects earth wire or bonding
Function Cable(2 line)----- only apply to Model T2
White:ACC detection
Purple:Oil cut and power off

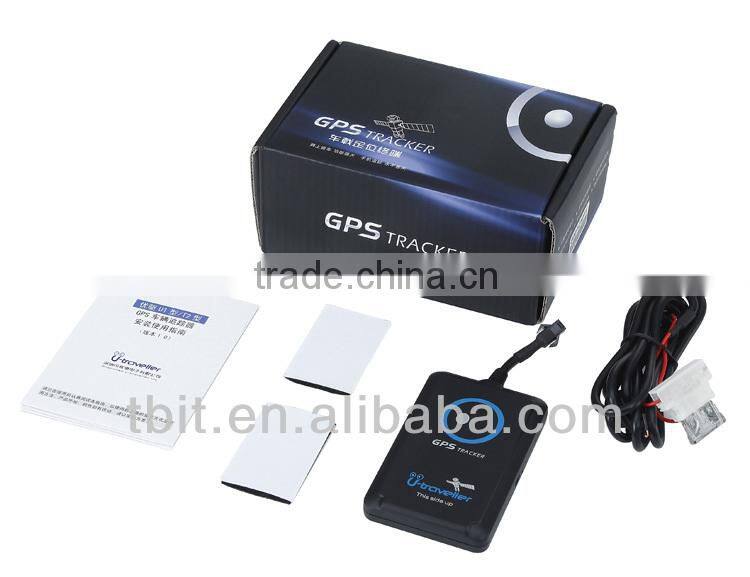

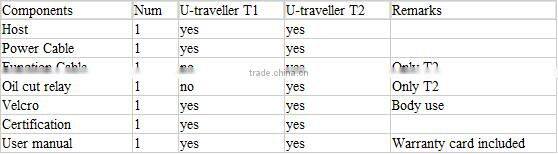

Components

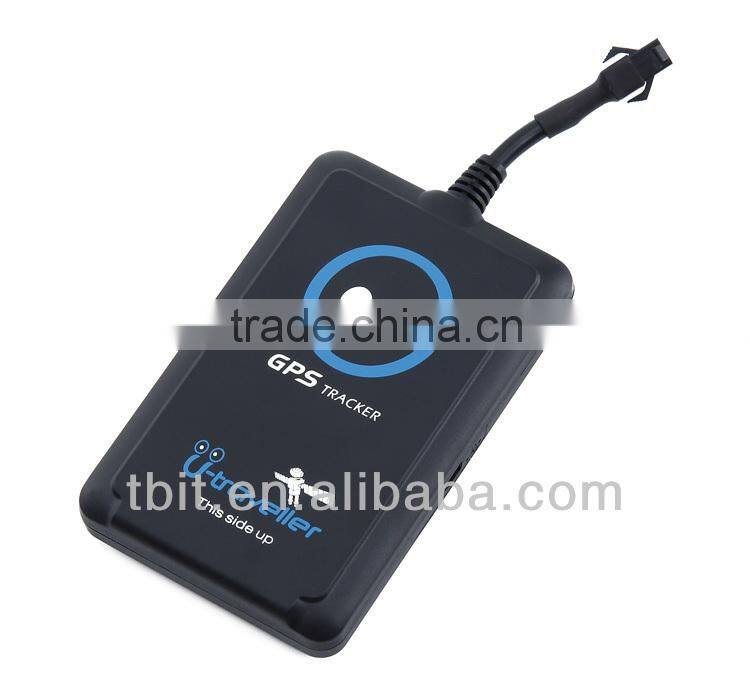

U-traveller Model T1 GPS Tracker Show

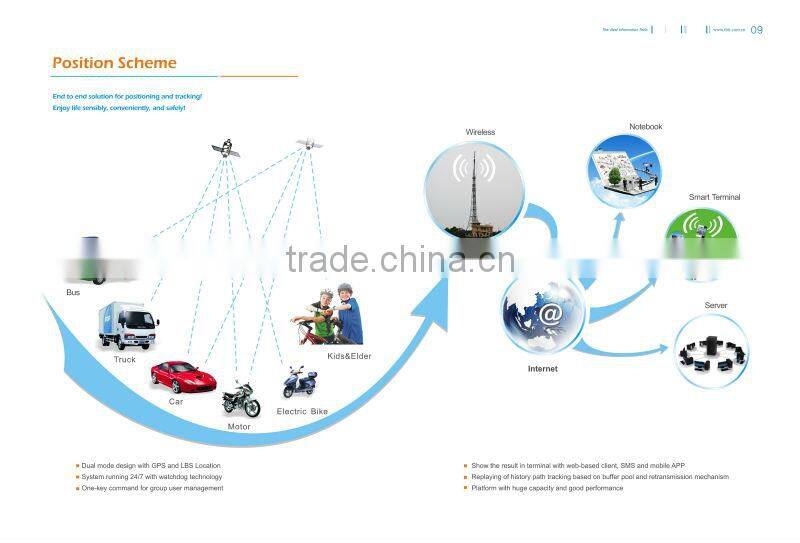

How it works?
Function introduction
1,SMS checking:Through the cell phone to locate,tracking,query status,query parameters,set parameters almost all of operations. The Position description in Chinese will send to the owners.
2,Vibration alarm:In arm status, if somebody shakes the motorbike, the device will send the SMS to the owner.
3,Geo-fence alarm:In arm status, the car removed to surpass certain
distance will report the alarm. And the alarm will send to the platform and the
owners.
4,Online Checking: Check where your car/motorcycle is online through google maps.
5,Web alarm:Speeding alert,zone alert,web pop-up alert.
6,Data statistics:Speeding statistics,Mileage statistics,the number of alarm statistics.

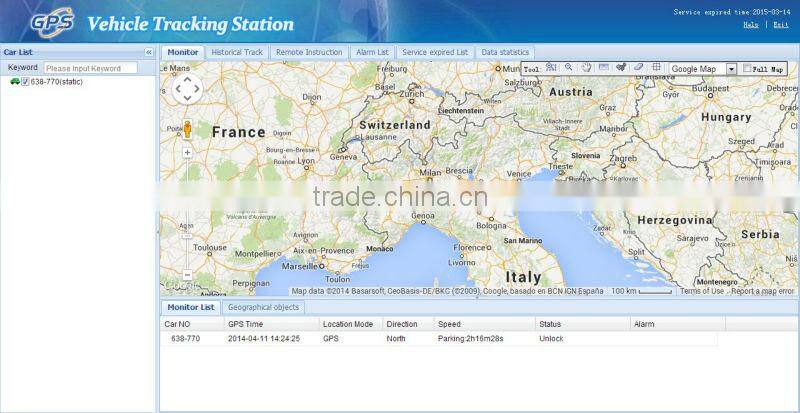

GPS tracking system
Cell-ID Location
Status Dynamic Display
Polygon Geo-fence
Group Command-sending
Route Deviation Alarm
Team and operator management
Map: Google
Android APP and IOS APP for Smart Phone
Android and IOS APP
Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
Delivery
1. Sample and mini order will be delivered within 2-3 working days after the receipt of payment.
2. For order over 1000pcs or customized order, lead time will be 1-2weeks after the receipt of payment. Please contact our sales to make sure the current inventory.
TBIT is the first business who proposes the application of GPS to motorcycles and electric bicycles. The problem of vehicle theft and safety can be solved completely after advanced wireless communication technology and locating technology are applied to motorcycles and electric bicycles, which is why the proposal is welcomed among vehicles owners. The GPS locator manufactured by TBIT has been used as a prior assembled part forming the complete product by many electric bicycle manufacturers and serves as an important means to improve the technological content and brand image of electric bicycle products. TBIT has also had extensive cooperation with the globally biggest communication operator – China Mobile and is the biggest partner of China Mobile in its car guard business.
Moreover, TBIT has developed vehicle dedicated GPS locators. With good cost performance, the products have been well recognized among customers and the Company has also become the vehicle GPS locator manufacture whose sales rank first in China. TBIT provides vehicle GPS locators of various models, including base station locator, GPS locator, locators with oil and power cut-off function, and GPS locators needless to install large magnets.
TBIT has launched the dedicated GPS locator with real-time temperature reporting for the cold chain transportation industry to help the industry solve the blind and difficult point problems in managing the transportation process.
All these terminal products need a management platform with stable operation. The background management platform independently developed by TBIT is a typical “cloud” platform. TBIT’s terminal management platform is designed and developed in response to telecommunication-level structure and supports million-level terminal access. The platform provides various forms of query software and means, including short message, WEB, PC customer end program, Android APP, Apple APP and Micros to facilitate users to the greatest extent.
Under the leadership of Ministry of Public Security and Ministry of Industry and Information, TBIT is actively participating in the formulation of the standard on locating technology for resident’s electric bicycles (national standard).
