Home > Packaging & Printing > Packing Machinery > Sealing Machine > Automatic Big Bag Packing Machine FBJ-130DC

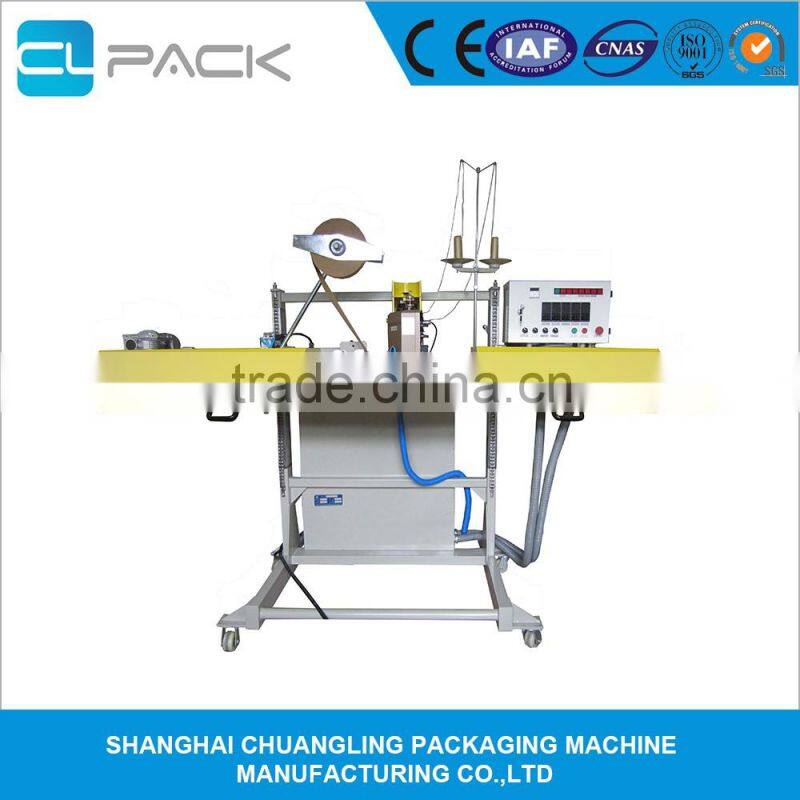

Automatic Big Bag Packing Machine FBJ-130DC
US$ 20000.00 - 20000.00
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Machinery & Hardware
Packaging Type:
Cartons
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Continuous Sealing MachineFR-880W Plastic Film Sealing MachineUS$ 350.00 - 350.00MOQ: 1 Set -
Continuous Sealing MachineFRM-1100 Series Coding Continuous SealerUS$ 1500.00 - 1500.00MOQ: 1 Set
-
Continuous Sealing Machine FRS-1100 Series Color Ribbon Printing Continuous Sealing MachineUS$ 1500.00 - 1500.00MOQ: 1 Set
-
Big Bag Sealing Machine QF600LUS$ 1300.00 - 1300.00MOQ: 1 Set
-
Foil Induction Sealing MachineL BF-1500 Desktop Continuous Induction Sealing Machine Quality ChoiceUS$ 500.00 - 500.00MOQ: 1 Set
Condition
New
Application
Other, Machinery & Hardware
Packaging Type
Cartons
Packaging Material
Wood
Automatic Grade
Automatic
Driven Type
Electric
Voltage
Phase (3PH) AC380/50
Power
4.5KW
Place of Origin
Shanghai, China
Brand Name
CLPACK
Model Number
FBJ-130DC
Dimension(L*W*H)
2600*950*1800
Weight
500kg
Certification
CE GS ISO
After-sales Service Provided
Engineers available to service machinery overseas
FBJ-130DC series sealing stitching automatic packaging machine is the company's own research and development, have complete independent intellectual property rights. Suitable for packaging weight 25 ~ 50kg heavy sacks ; suitable for packaging kraft paper bags, multi kraft bags, paper and plastic (PE) composite woven bag or paper bag and other large bags packaging ; production capacity could reach 600 to 800 bags / hour the high efficiency. The machine can automatically complete the dust bag ( optional institutions ) , sewing, trim, package tape , paper cutting tape, sealing, lamination processes. The packaged bag sealing sealing, fastness, dirt, moisture , pollution prevention, to make the packaging are properly protected.
1.1.2 Features

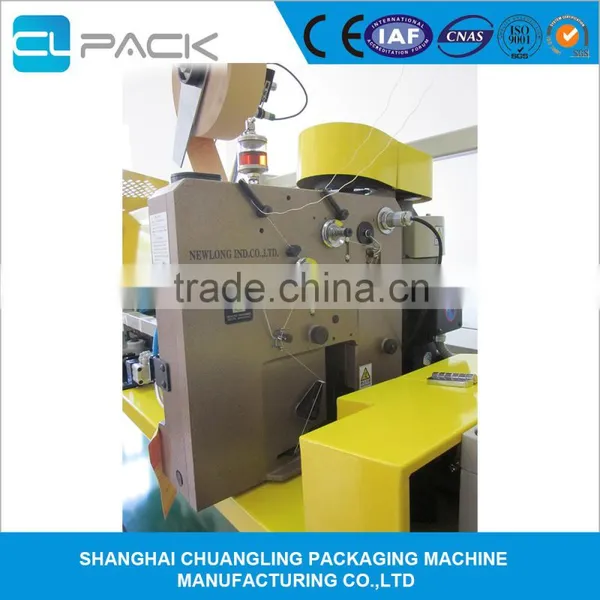

l The machine uses a special continuous input of sewing machines, sewing and conveying to achieve synchronous operation . With automatic cut braided line disconnection warning agencies and institutions .
l Optional pocket dust removing machine to suck the bag of powder.
l using electromagnetic clutch and brake control of the sewing machine operation , accurate positioning and to avoid damage to the motor .
l using pneumatic mechanism to achieve traction tape and cut, stable and reliable operation .
l using a thermostat controlled heating mechanism , lined bags and adhesive tape to achieve a combined heat and make the bag sealed.
l transmission mechanism using a special clamp chain, to achieve bags input and synchronous operation .
l machine by PLC programmable auto-complete package by the whole process .
l The machine can be used with conveyors production line , and with the automatic measurement , automatic filling , palletizing , strapping and winding through Arrow composition processes automatic packaging production line.
1.1.2 Features
l The machine uses a special continuous input of sewing machines, sewing and conveying to achieve synchronous operation . With automatic cut braided line disconnection warning agencies and institutions .
l Optional pocket dust removing machine to suck the bag of powder.
l using electromagnetic clutch and brake control of the sewing machine operation , accurate positioning and to avoid damage to the motor .
l using pneumatic mechanism to achieve traction tape and cut, stable and reliable operation .
l using a thermostat controlled heating mechanism , lined bags and adhesive tape to achieve a combined heat and make the bag sealed.
l transmission mechanism using a special clamp chain, to achieve bags input and synchronous operation .
l machine by PLC programmable auto-complete package by the whole process .
l The machine can be used with conveyors production line , and with the automatic measurement , automatic filling , palletizing , strapping and winding through Arrow composition processes automatic packaging production line.
Model |
FBJ-13C |
FBJ-13DC |
FBJ-14C |
FBJ-14DC |
FBJ-130DC |
Power supply voltage(V/HZ) |
Phase (3PH) AC380/50 |
||||
Total power (KW) |
4 |
4.5 |
5.5 |
6 |
6.5 |
Drive power (KW) |
0.37 |
0.75 |
|||
Sewing machine drivepower (KW) |
0.37 |
||||
Heating power (KW) |
0.5×6 |
0.5×8 |
0.5×10 |
||
Dust Power (KW) |
- |
0.6 |
- |
0.6 |
- |
Sealing speed(m/min) |
8.5(Can be customized 5~11m/min) |
||||
Sealing center to ground height
|
750~1450mmAdjustable
|
||||
Material to a minimum height
|
170mm |
||||
Temperature range(℃) |
0~400 |
||||
Pack hot melt adhesivetape
|
There are
|
||||
Dust removal device |
- |
There
|
- |
There
|
- |
