Home > Packaging & Printing > Packing Machinery > Sealing Machine > Continuous Sealing Machine FRS-1100 Series Color Ribbon Printing Continuous Sealing Machine

Continuous Sealing Machine FRS-1100 Series Color Ribbon Printing Continuous Sealing Machine

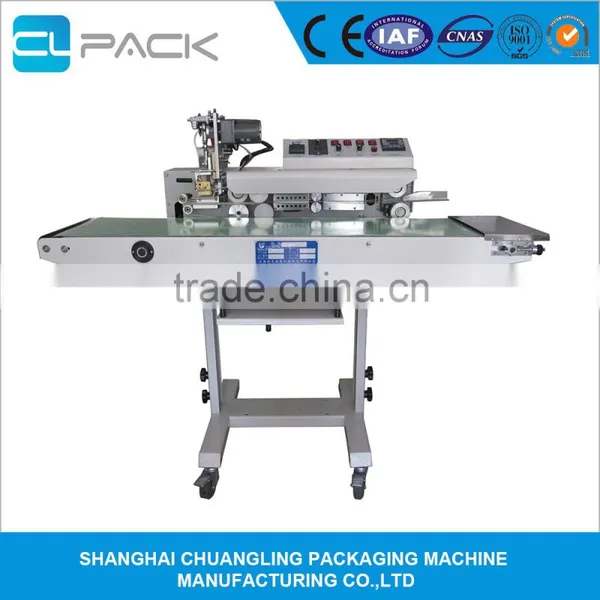

Continuous Sealing Machine FRS-1100 Series Color Ribbon Printing Continuous Sealing Machine photo-1
US$ 1500.00 - 1500.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Machinery & Hardware
Packaging Type:
Cartons
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Other, Machinery & Hardware
Packaging Type Cartons
Packaging Material Wood
Automatic Grade Semi-Automatic
Driven Type Electric
Voltage 220V50Hz
Power 760W
Place of Origin Shanghai, China
Brand Name CLPACK
Model Number FRS-1100
Dimension(L*W*H) 1260*630*1150mm
Weight 135KG
Certification CE SGS ISO
After-sales Service Provided Engineers available to service machinery overseas
Brief introduction:


FRS-1100 is suitable for plastic film sealing , bag , widely used in food, pharmaceutical, chemical , household , seeds and other industries. It is a factory, shop bulk packaging is the best sealing equipment. The machine adopts electronic constant temperature control mechanism and stepless speed transmission can be made of different materials sealed plastic bag , with a variety of packaging lines supporting the use of sealing length unrestricted ; with continuous high sealing effect , sealing reliable quality , reasonable structure, convenient operation .

Product parameters:

Model
FRS-1100WQ
FRSC-1100W
FRS-1100W
FR-1100W
Thermal power
300W*2
300W*2
300W*2
300W*2
Driving motor power
60W/220V
60W/220V
60W/220V
60W/220V
The printing electric power
100W
100W
100W
——
Pump power
1200W
——
——
——
Charge pump power
180W
——
——
Ribbon coding machine
Ribbon coding machine part: with the word set (0-2) 5, (3-9) 4 particles, (B, C, A) each 1, 5 blank thickness, blank sheet 10, playing the machine temperature can be adjusted, the date is clear and neat

Sealing speed
0-16m/min
Sealing width
Sealing width: 17mm, width: 20mm, sealing tape sealing texture: horizontal stripes (the customize)
SealiContinuous sealing machine FRS-1100 series color ribbon printing continuous sealing machineng temperature
0-300℃
Sealing center to the height of the conveying table
10-40mm
Frame material
Carbon baking
Single weight of conveying table
1.5KG
Total weight of conveying platform
3KG
Conveying table size(L*W)
1200*310mm
Conveyor belt size(L*W)
2380*285mm
Equipment size(L*W*H)
1260*630*1150mm
Size of packing box(L*W*H)
1300*700*1250mm
Net weight
115KG
123KG
110KG
103KG
Gross weight
135KG
143KG
130KG
123KG
