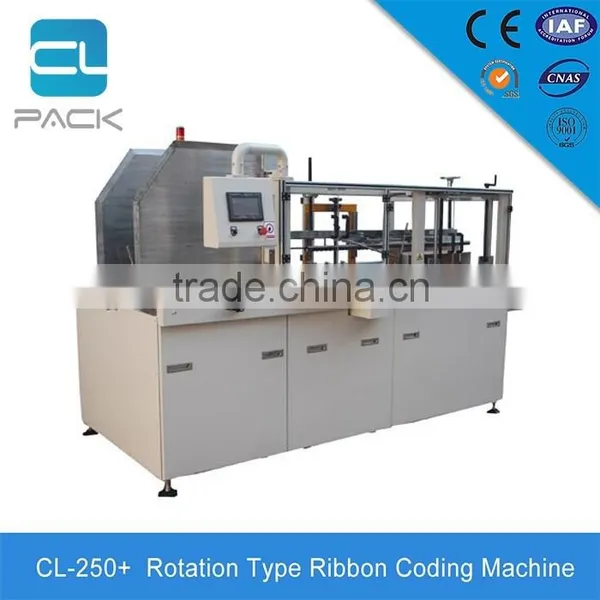

CL-250+ Rotation Type Ribbon Coding Machine Date Coding MachineUS$ 1250.00 - 1360.00MOQ: 1 Set
-
HP-241B Customizing Type Ribbon Coding Machine Date Coding PrinterUS$ 160.00 - 190.00MOQ: 1 Set
-
MY-300 Series Automatic Plastic Film Embossing Printing Coding MachineUS$ 600.00 - 660.00MOQ: 1 Set
Top Level Most Popular Corrugated Carton Forming Machine For Galvanized Steel
Brief introduction:
Using horizontal type to stored carton boards, can add carton board at any time, don`t need stop, won't delay production;
Applicable to a variety sizes of carton box cover, if you want to change the specifications of carton, manual regulation, operation be simple and convenient;
This machine can automatic carton forming, automatic flap cover, back cover, PLC + man-machine interface control, simple operation, convenient maintenance, is essential equipment for automated scale production assembly line;
Parts performance is precision and durable, compact structure design, no vibration during operating process, stable and reliable operation;
Automatic stop operation and inflatable when the door opened, greatly improve the safety of use;
Mechanical operation of the whole machine adopts CAM continuous system, accurate operation; Forming and sealing adopts inverter control, can be arbitrary adjust the speed, save the working hours;
Automatic carton forming, no crease;
Automatic sealing standard unified, the effect is beautiful;
And the time for artificial forming, fold the bottom and back cover only one-sixth of manual operation, the efficiency is higher than manual work at least five times, greatly reduces the production cost and time, and increase an unfailing supply of benefits;
Since this machine research and development success, has been widely used in food, medicine, beverage, tobacco, chemical, automobile, cable, electronics industry and so on.
| Model | KXJ-W20 | KXJ-W25 |
| Power/Voltage | 750w(AC380V) | 750w(AC380V) |
| Size of carton (L×W×H) | (280-500)×(200-400)×(90-450)mm | (280-400)×(200-330)×(90-300)mm |
| Sealing speed | 20-25 case/min | 15-20 case/min |
| Carton board storage content | 100pcs | 100pcs |
| Tape size | 48-75mm | 48-75mm |
| Gas pressure | 4-5kg/cm2 | 5-7kg/cm2 |
| Specific air consumption | 450NL /min | 450NL /min |
| Dimension (L×W×H) | 2780×1250×1840mm | 2780×1250×1840mm |
| Weight | 990kg | 990kg |
