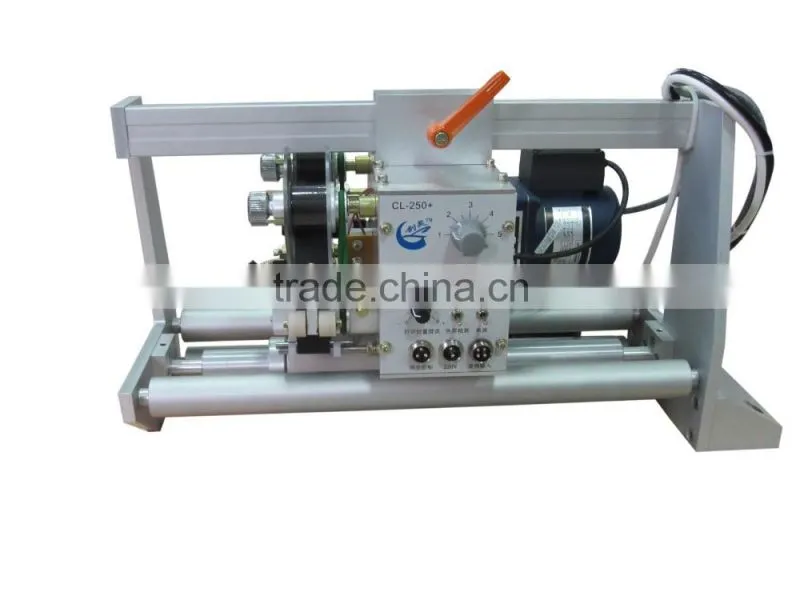

CL-250+ Rotation Type Ribbon Coding Machine Date Coding Machine
US$ 1250.00 - 1360.00
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Automatic
Application:
PT/PE/KT/OPP/CPP bag
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HP-241B Customizing Type Ribbon Coding Machine Date Coding PrinterUS$ 160.00 - 190.00MOQ: 1 Set -
MY-300 Series Automatic Plastic Film Embossing Printing Coding MachineUS$ 600.00 - 660.00MOQ: 1 Set
-
MY-380F Solid Ink Coding Machine Automatic Coding MachineUS$ 528.00 - 540.00MOQ: 1 Set
-
HP-241B + Customized Ribbon CodingUS$ 250.00 - 280.00MOQ: 1 Set
-
CLJ-1650 Stretch Automatic Transport Film Pallet Wrapping MachineUS$ 2000.00 - 2000.00MOQ: 1 Set
Condition
New
Automatic Grade
Automatic
Application
PT/PE/KT/OPP/CPP bag
Place of Origin
Shanghai, China
Brand Name
CLPACK
Model Number
CL-250+
Packaging Material
Paper
Packaging Type
Cartons
Driven Type
Mechanical
Voltage
220V/50HZ
Power
150W
Dimension(L*W*H)
440*345*260mm
Weight
20kg
Certification
CE Certificate
After-sales Service Provided
Engineers available to service machinery overseas

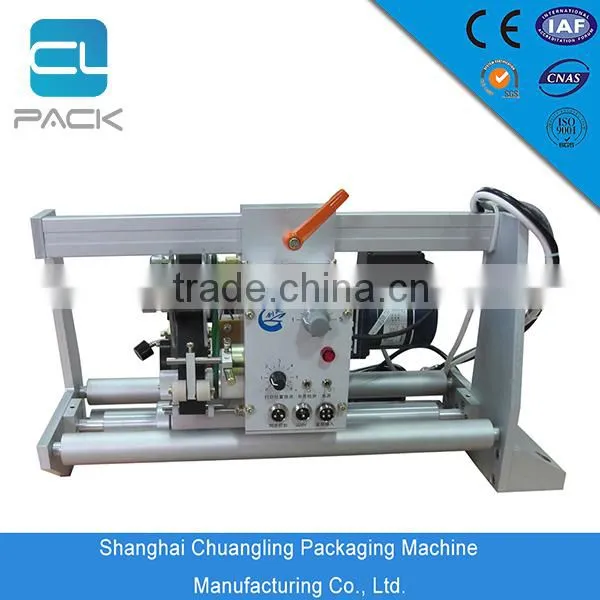

CL-250+ Rotation Type Ribbon Coding Machine Date Coding Machine
Product Description
|
Brief introduction: CL-250 + thermal coder is rotary automatic coding for the use of automatic packaging machines designed to print on the strip packaging, such as production date, batch number, standards and other information about the number of signs. The machine runs according to heat coding theory using thermal printing ribbon instead of ink to print. Power come from motors by packing machine (machine tools) magnetic switch trigger control, to achieve printing synchronization with packaging. The machine has special clutch, automatic rotate the speed of typing head and continuous motion of packaging film, synchronization speed to ensure that no printing bias. Rotary speed operation can be realized. |
Product parameters:
CL-250 +-type design of the following two main points: "S" type and "R" type for the user on the packaging machine packaging film according to the direction of movement to choose. "S" type is a standard type; "R" type is symmetric of "S" type, the following shows differences:
| Model | "S" type | “R” type |
| Packaging film running direction | Left → Right | Right → Left |
| Thermal printing running direction | Left → Right | Right → Left |
| Direction of rotation of the print head | Counterclockwise | Clockwise |
| Thermal printing with side discharge | Left | Right |
| Thermal printing take up side | Right | Left |
| Belt assembly position | Right | Left |
The main technical parameters:
| Thermal printing ribbon | Maximum width is 35mm, standard 25mm |
| Scope | PT, PE, KT, OPP, CPP, plastic bags, plastic packaging materials such as composite film print production date, batch number, weight, etc. |
| Print Area | Maximum of Single-row 4×35mm, Maximum of Double 9.5×35mm, |
| Speed | 220 times / min |
| Power supply | Single phase 150W/220V 50HZ |
| Tablets of the word | Numbers, Available in English |
| Weight | 20KG |
