Specifications
YO18 rock drill1.Air pressure:0.4- 0.63MPa
2.Drill bit dia:34-42mm
3.Usage:mine laneway and blasting holes

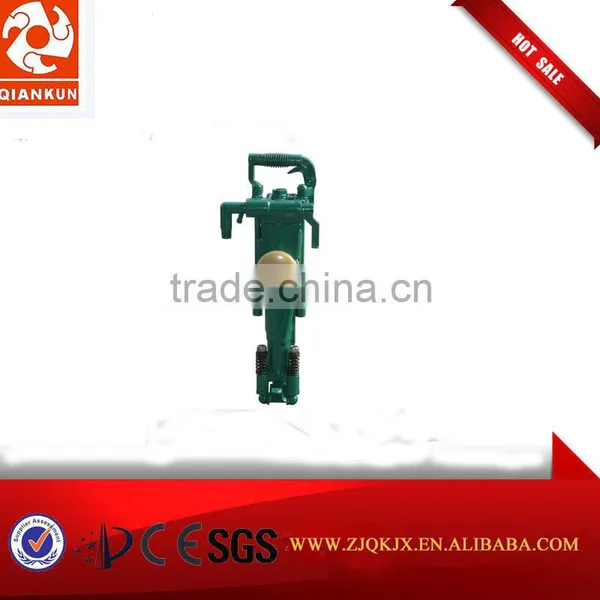

YO18 rock drill
The rock drill is a kind of high efficiency air leg rock drill machinery.It is mainly used for diging into mine laneway and blasting holes in all drilling works. It is indispensably importance machine tool in metallurgy, coal, railway, traffic, water conservancy construction and national defence stone project. It is suitable for drilling and blasting under various of rocks at any direction angles. Blast hole dia is 34-42mm, drill hole depth is 5 m This machine may match with Model FT160A short air leg ,This machine has transparent surface of FY200A oil reservoir, easy to observe the oil lever, adjust oil quantity, ensure the well lubricated.
Specification |
|
Weight |
≈ 26 kg |
Length |
661mm |
Cylinder dia |
80mm |
Piston stroke |
60mm |
Air pressure |
0.4- 0.63MPa |
Impact frequencey |
≥ 37 Hz |
Air consumption |
≤81L/S |
Air pipe (inner dia ) |
25mm |
Water pipe (inner dia ) |
13mm |
Drill bit dia |
34-42mm |
Shank dimensions(hex×length) |
22×108±1mm/ 25×108±1mm |
The function specification that Air pressure is 0.63Mpa | |
FT160B Air leg(short) | |
Length |
1800mm |
Push stroke |
1365mm |
Cylinder dia. |
65mm |
Weight |
≈ 16.9 kg |
FY200A oil reservoir | |
Oil capacity |
200ml |
