Crawle Type Two Cylinder Portable Drilling Rig Quality Choice

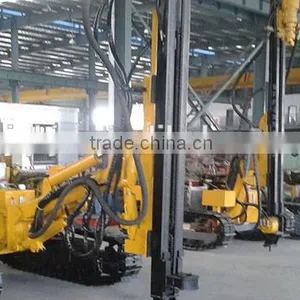

Crawle Type Two Cylinder Portable Drilling Rig Quality Choice photo-1

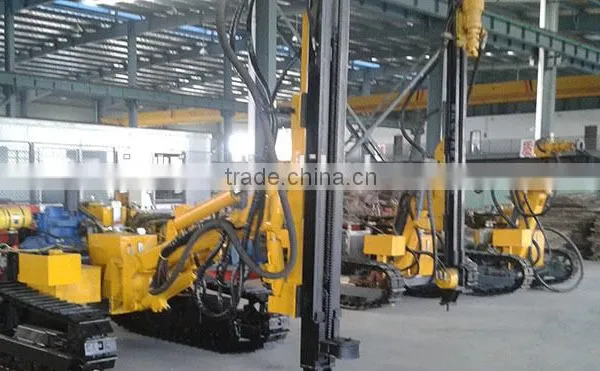

Crawle Type Two Cylinder Portable Drilling Rig Quality Choice photo-2
US$ 1,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Power Type:
Electric
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Core Drilling Rig
Power Type Electric
Place of Origin Zhejiang, China
Brand Name QIANKUN
Model Number QKZC2000
Usage Coal
Voltage 380V
Power(W) 40KW
Dimension(L*W*H) 4600*2030*2020mm
Certification ISO9001
Warranty 1year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

portable drilling rig
1.Dia:85-150mm
2.Depth:25-30m
3.Working pressure:0.7-1.4mpa
4.Air Capactity:9-17M3/min

portable drilling rig

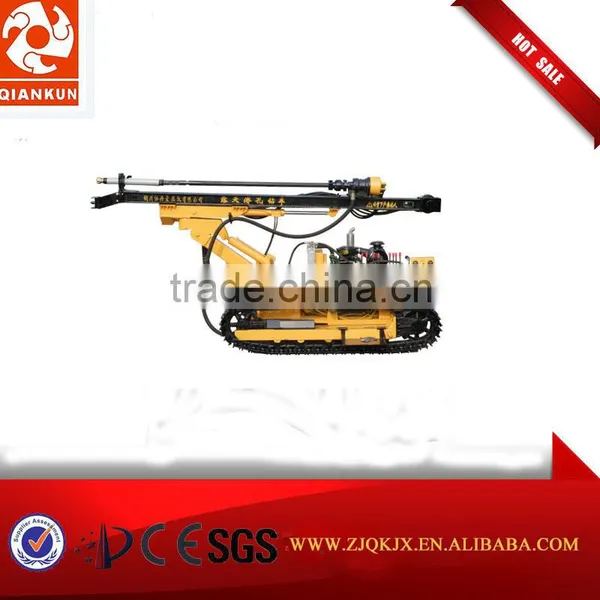

Product photos

P

Crawle type two cylinder portable drilling rig

Crawle type two cylinder portable drilling rig









What is the Technical specification of our drilling rig?





model

diameter
mm

depth
m

Working pressure
MPa

Air consumption
M3/min

Rotation speed/rpm

Dimension

QKZC-1000

80-150

≥25-30

0.7-1.4

9-17

0-90r/min

4600*2030*2020mm

QKZC-2000

80-150

≥25-30

0.7-1.4

9-17

0-90r/min

4600*2030*2020mm

QKZC-3000

80-105

≥25-30

0.7-1.4

9-17

0-90r/min

4600*2030*2020mm



Model

ACCESSORIES

REMARKS

QKZC-1000diesel



The S1125 power

QKZC-1000Adiesel

 Ø38 Steel wire rubber hose 2 pcs or Ø38*8 rubber hose 4pcs , 90A hammers 1 pc,Ø90 bits 2pcs,Ø60*2m rods 10pcs

Yuchai 2115 two cylinder

QKZC-1000D elecric



15KW-4 Motor

QKZC-2000 diesel

Ø 38 Steel wire rubber hose 2pcs,   90B hammers 1pc, Ø90 bits 2pcs, Ø60*2m rods 10 pcs

Yuchai 4108 four cylinder ,cycloid rotary motor

QKZC-2000A diesel

Ø38 Steel wire rubber hose 2 pcs, 40A hammers  1 pc ,Ø76*3m rods  6 pcs,Ø76*2m rods  1 pc , High Static Pressure Ø110 bit 1 pc

Yuchai 4108 four cylinder and the strengthen  Travel Motor ,cycloid rotary motor

QKZC-2000D  electric



 30kw strengthen Travel Motor

QKZC-3000



Yuchai 4108 four cylinder

QKZC-3000A diesel

Ø 38 Steel wire rubber hose 2 pcs, 40A high wind pressure hammers  1pc,Ø76*3m rods  6pcs,Ø76*2m rods 1 pc, High Static Pressure Ø115 bit 1 pc

Yuchai 4108 four cylinder and the strengthen Travel Motor ,rotary motor

QKZC-3000D electric



40kw electric motor

 What is the matched type diesel screw air compressor?





Model

Diesel motor

Capacity(m3/min)

Working pressure(bar)

Wheels

QKCY-58

YUCHAI 58KW

7

8

2wheels

QKCY-110

YUCHAI 110KW

12

10

4 wheels

QKCY-140

YUCHAI 140KW

15

13

4 wheels

QKCY-176

YUCHAI 176KW

15

13

4 wheels

QKCY-194

CUMMINS194KW

18

17

4 wheels

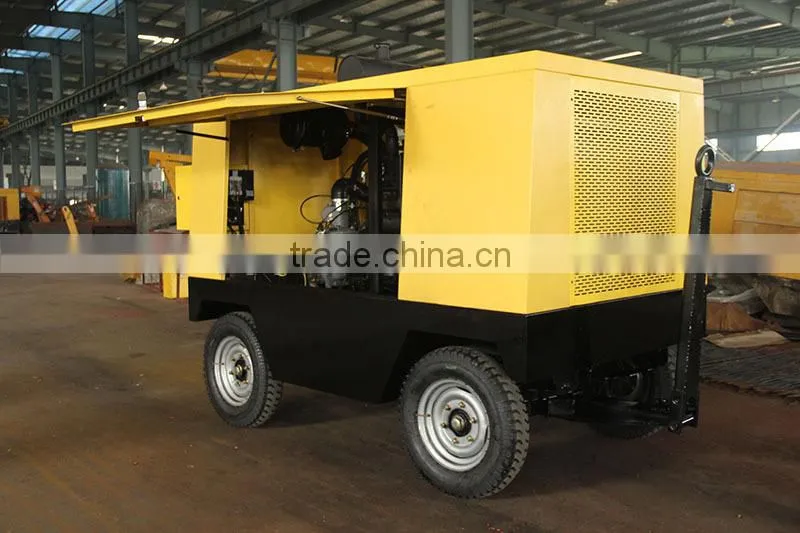

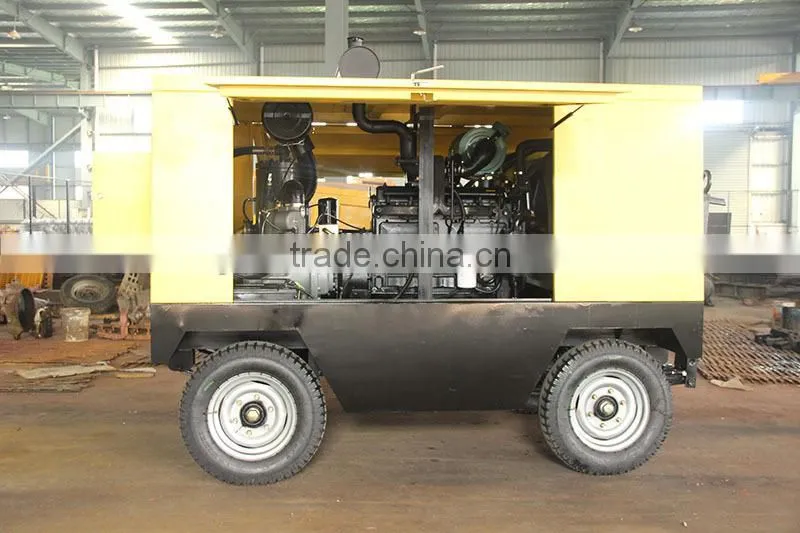

 photos for diesel screw air compressor that matches drilling rig





 Crawle type two cylinder portable drilling rigCrawle type two cylinder portable drilling rig

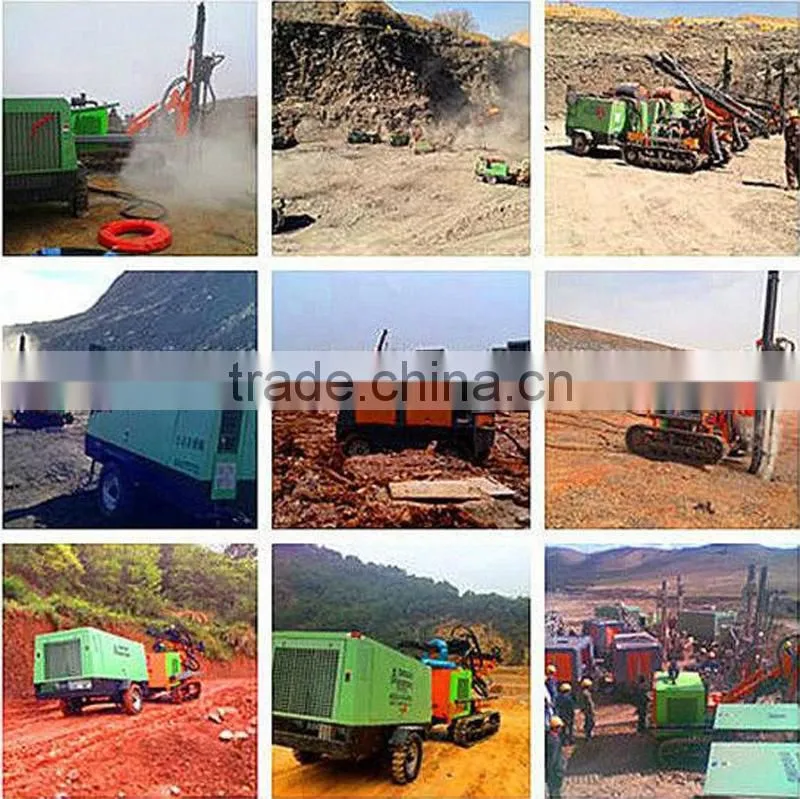

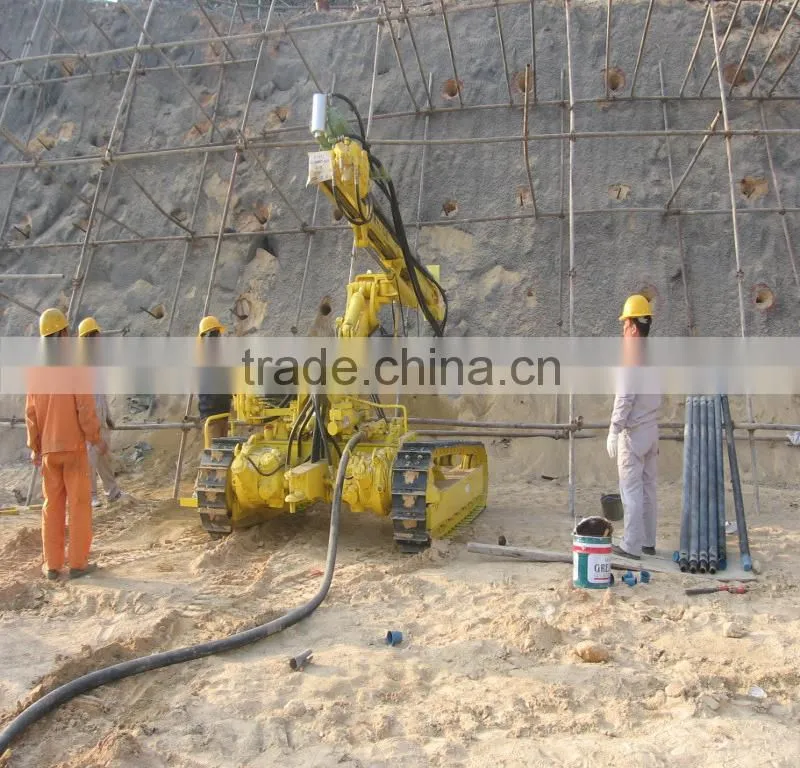

 What is the application of our drilling rig?

 Crawle type two cylinder portable drilling rig



Company view



Crawle type two cylinder portable drilling rig

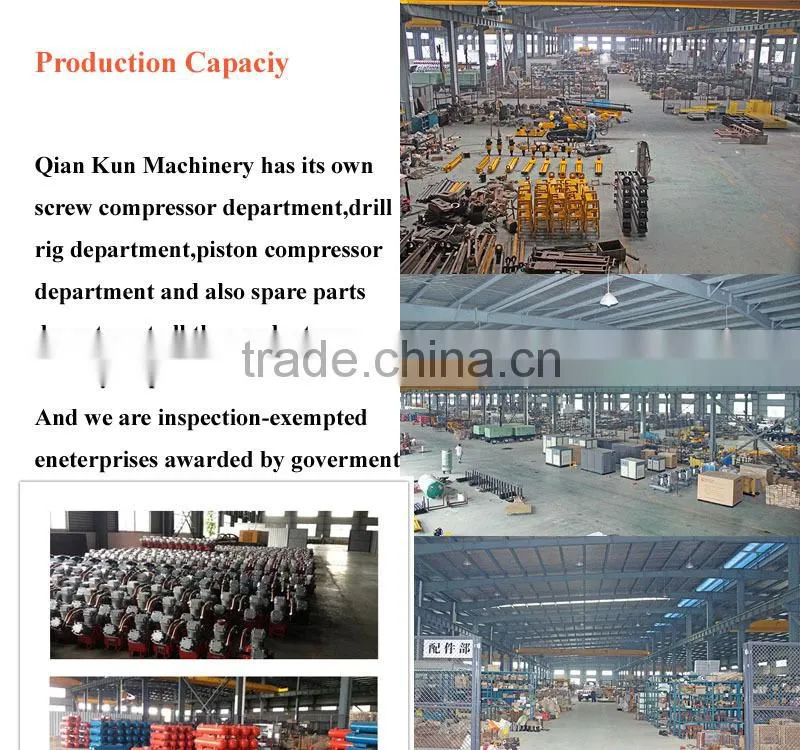

Production capacity

Crawle type two cylinder portable drilling rig





Packaging and shipping



Crawle type two cylinder portable drilling rig





Our certificates



Crawle type two cylinder portable drilling rig





Please contact:



Crawle type two cylinder portable drilling rig
