Precision Alumina Structure Ceramic Ring
- SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Type | Ceramic Parts | |
| Application | Structure Ceramic | Material | Alumina Ceramic | |
| Brand Name | EB |
Product Description
Specifications
1.Precision aperture and notching2.Wear resistance
3.High mechanical strength
4,Shaped as your designing and requirement

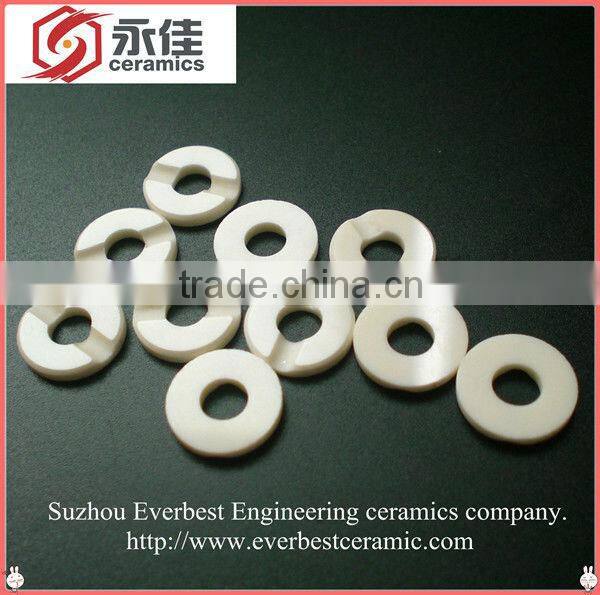

Precision Alumina structure ceramic ring
Feature
Alumina Ceramic ring has the advantages of high wear-resisting,good corrosion resistance and electric insulation, high intensity , precision process, good smoothness, polishing surface and so on.It widely used in a variety of electrical devices.
Property
Items | Unit | 95%Al2O3 | 99.5%Al2O3 |
Density | g/cm3 | 3.7 | 3.9 |
Flexural Strength | MPa | 313 | 340 |
Compressive Strength | MPa | 3400 | 3600 |
Modulus of Elasticity | GPa | 350 | 380 |
Impact Resistance | MPa·m1/2 | 4 | 5.1 |
Weibull Modulus | m | 10 | 10 |
Vickers Hardness | HV0.5 | 1800 | 1900 |
Thermal Conductivity | W/mk | 24 | 27 |
Highest Application Temperature | °C | 1600 | 1750 |
Volume Resistivity at 20°C | Ω.cm20 | >1014 | >1014 |
Dielertric strength | KV/mm | 20 | 25 |
Thermal expansion | X10-6/K | 5.0-8.3 | 5.4-8.3 |
Forming methods includes
1,drying pressing
2,isostatic pressing
3,hot pressing casting
The application of our product
1, Ceramic shaft for aquatic animals equipment filter pump
2, Ceramic plunger for high pressure cleaner.
3,Wearlessness,resistant acid-base and high intensity ceramic assembly apply to petroleum ,chemical and chemical industry.
4,Wearlesness, corrosion resistance parts apply to precision machine.
Remarks
Customized production is available, for more information, please do not hesitate to tell me.Dimension, Tolerance, Surface Roughness, Concentricity, Perpendicularity and other specification are upon your requirements.
