Reliable Compressed Air Tank and Air Receiver for Sale

Reliable Compressed Air Tank and Air Receiver for Sale thumbnail-1
Reliable Compressed Air Tank and Air Receiver for Sale photo-1
US$ 1,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Piston
Configuration:
Stationary
Contact Supplier Request Quote Chat Now
Zhejiang Qiankun Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Piston
Configuration Stationary
Power Source AC Power
Lubrication Style Lubricated
Mute No
Place of Origin China
Brand Name Qiankun
Certification SGS
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

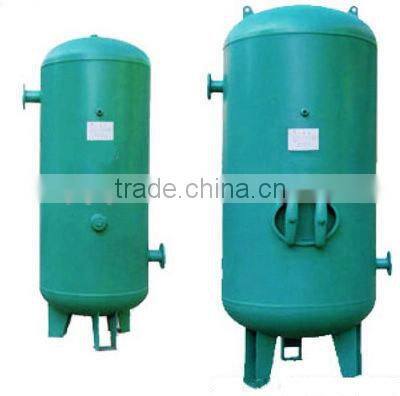

 Air Tank and Air Receiver for Sale



The main production volume V=0.33-600m3, various types of storage tank pressure of Pw=0.8 - 6.4Mpa.

For pressure vessel company can according to user needs, according to the AMSE or GB specification development and production ofvarious types of vehicle brake cylinders, air compressor oil and gas separator and various types of air storage tank and non-standardpressure vessel.

O Specifications

design

temperature

°C

 high
H1
dimension
Φ		 air inlet air outlet support lief valve connector Nozzle of dyain valve
volume/pressure H2 DN   H3 DN   D d
1 0.3/0.8 110 1594 550 642 65 Rp1½ 1242 65 Rp1½ 400 20 Rp3/4 R1/2
2 0.3/1.0 1594 642 1242
3 0.3/1.3 1598 644 1244
4 0.3/1.6 1598 644 1244
5 0.6/0.8 110 1905 700 680 65 Rp1½ 1550 65 Rp1½ 490 24 Rp3/4 R1/2
6 0.6/1.0 1907 681 1551
7 0.6/1.3 1909 682 1552
8 0.6/1.6 1907 681 1551
9 1.0/0.8 110 2365 800 730 80 Rp1½ 1960 80 Rp1½ 560 24 Rp1 R1/2
10 1.0/1.0 2367 731 1961
11 1.0/1.3 2367 731 1961
12 1.0/1.6 2367 731 1961
13 1.5/0.8 110 2727 900 736 80 Rp2" 2296 80 Rp2" 630 24 Rp1 R3/4
14 1.5/1.0 2729 737 2297
15 1.5/1.3 2727 736 2296
16 1.5/1.6 2731 738 2298
17 2.0/0.8 110 2782 1000 761 80 Rp2" 2321 80 Rp2" 700 24 Rp1¼ R3/4
18 2.0/1.0 2786 763 2323
19 2.0/1.3 2782 761 2321
20 2.0/1.6 2786 763 2323
21 2.5/0.8 110 2834 1100 787 80   2347 80   770 24 Rp1¼ R3/4
22 2.5/1.0 2836 788 2348
23 2.5/1.3 2836 788 2348
24 2.5/1.6 2836 788 2348
25 3.0/0.8 110 2944 1200 872 100   2432 100   906 24 Rp1½ R3/4
26 3.0/1.0 2946 873 2433
27 3.0/1.3 2946 873 2433
28 3.0/1.6 2980 890 2450
29 4.0/0.8 110 3056 1400 933 100   2493 100   1050 24 Rp1½ R3/4
30 4.0/1.0 3090 950 2510
31 4.0/1.3 3056 933 2493
32 4.0/1.6 3090 950 2510
33 5.0/0.8 110 3746 1400 933 125   3033 125   1050 24 Rp2 R1
34 5.0/1.0 3780 950 3050
35 5.0/1.3 3746 933 3033
36 5.0/1.6 3780 950 3050
