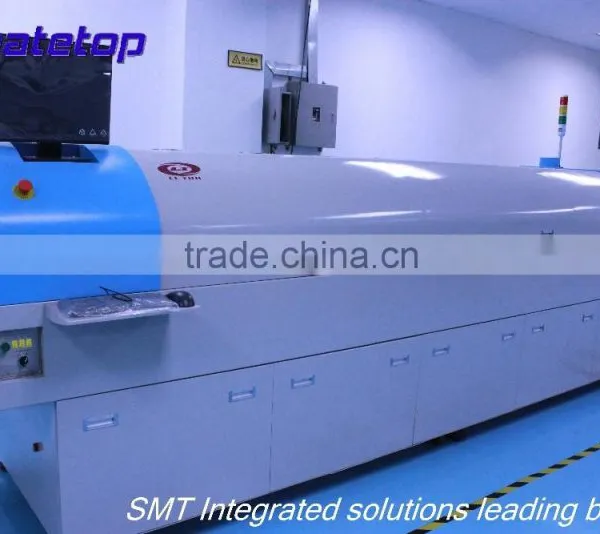

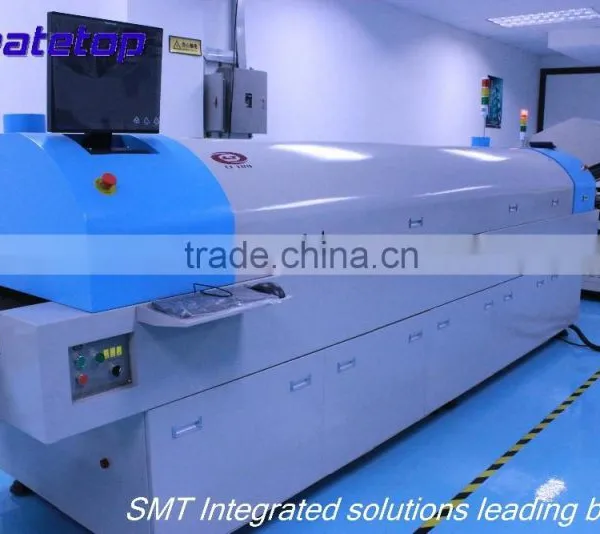

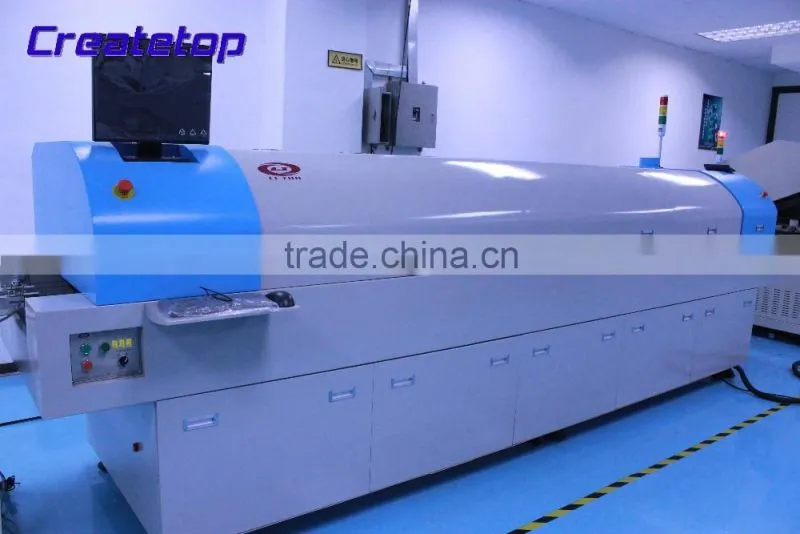

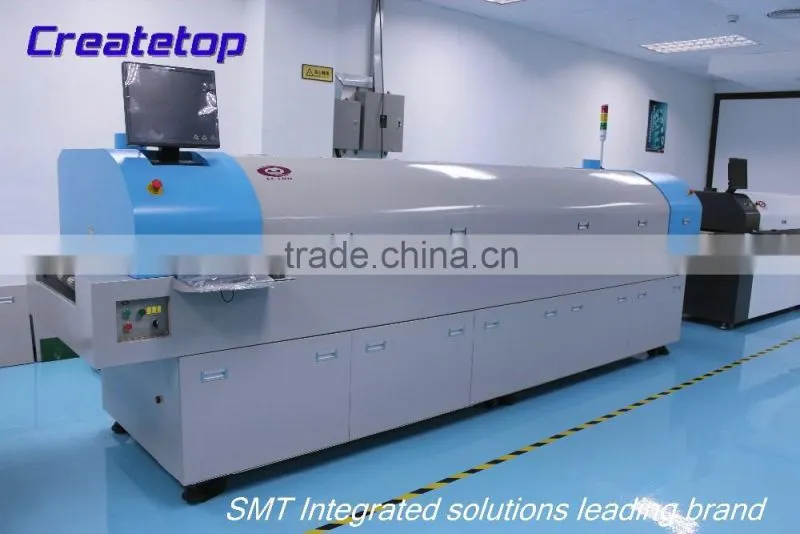

Precision lead-free reflow welder
It is suitable for LED lamp /LED lighting production / constant current power supply production .
The main function of configuration:
1: Lenovo digital LCD computer + SIEMENS control system;
2: Taiwan high frequency motor + Delta inverter;
3: 400mm special high-temperature lead-free stainless steel mesh belt;
4: In accordance with IPC/JEDEC J-STD-020C standard;
5: Three channel temperature measurement system of SIEMENS temperature curve;
6: LT the latest version of the operating interface, simple and easy to operate;
7: Taiwan Liming motor + Delta speed control;
8: Equipped with dual electric putter, more safety;
9: Equipped with UPS backup power, to protect the system;
10: Double cross flow fan forced cooling system.
11: Flux recovery system;
12: A systematic analysis of LT's latest temperature standard;
13: Alarm prompt function.

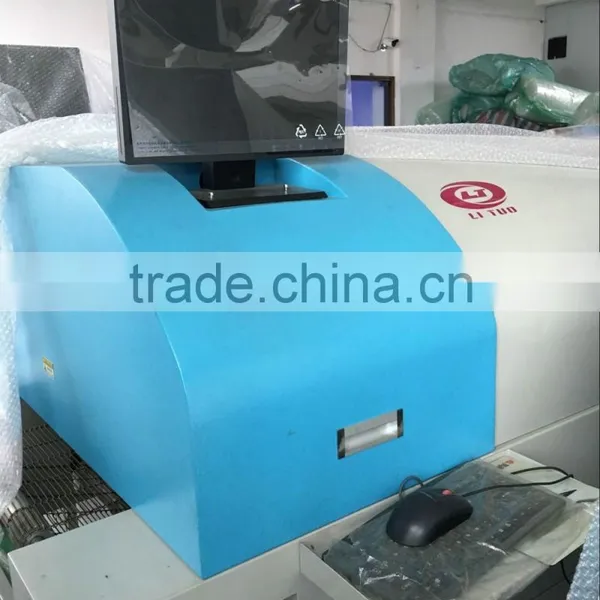

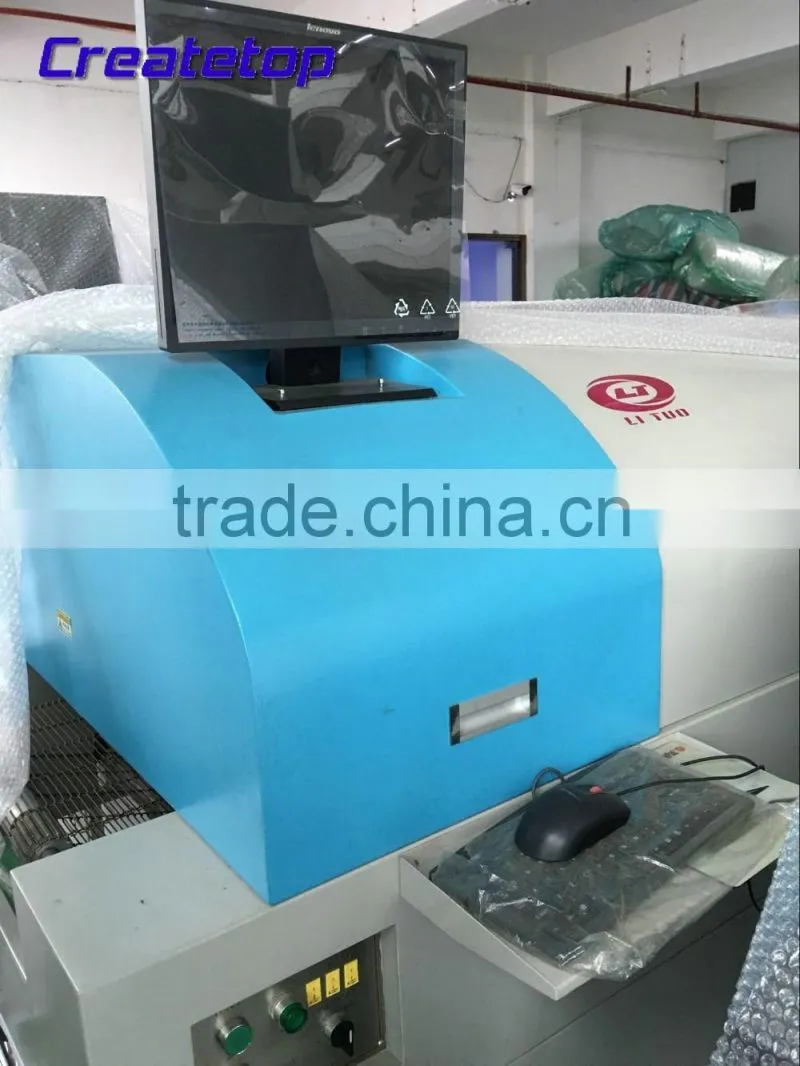

Lenovo digital LCD computer + SIEMENS control system
Three channel temperature measurement system of SIEMENS temperature curve
Equipped with UPS backup power, to protect the system

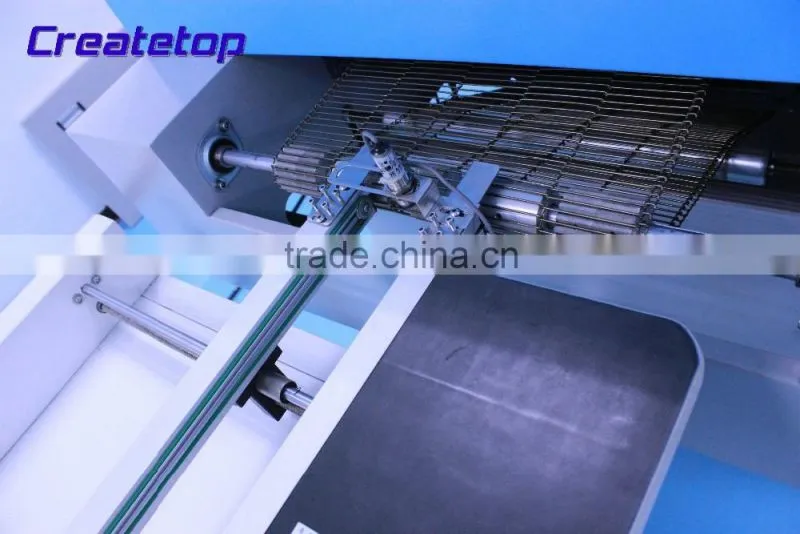

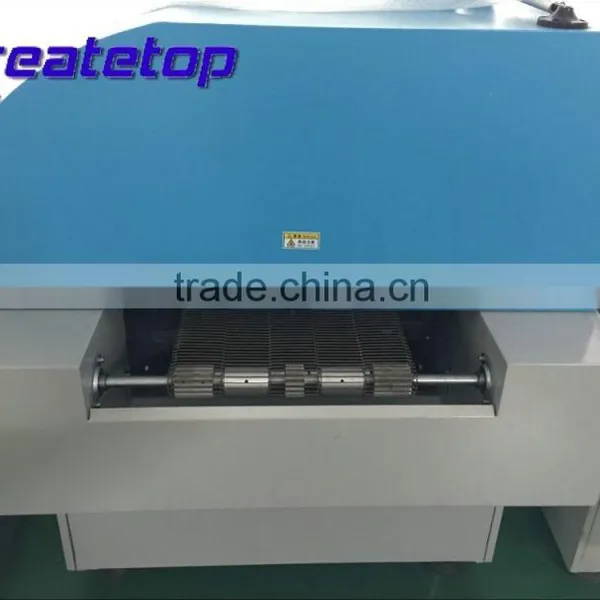

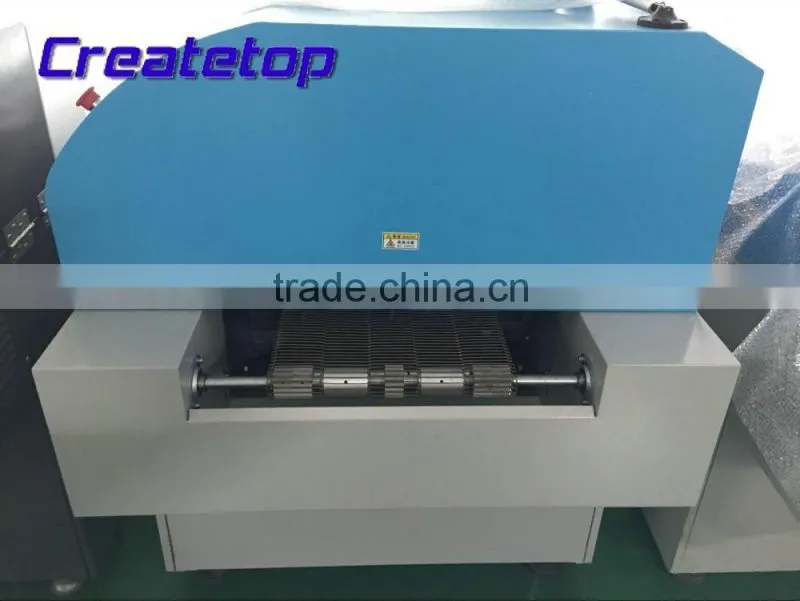

400mm special high-temperature lead-free stainless steel mesh belt
Can connect to any brand of feeder table
Related technical parameters:
1.Number of heating zones: eight under eight
2.Heating method: hot air circulation heating + thermal compensation
3 Transmission mode: 400mm net belt
4.PCB max width: 350mm
5.Transmission speed: 0-2000mm/min
6.Power: three-phase five wire 380V 50/60HZ
7 .Start power: 49KW
8 .Normal power consumption: 9KW
9.Heating time: 20min
10.Temperature control mode: PC +PLC+PID+SSR
11.Temperature: room temperature——350℃
12 .Temperature control accuracy: ±1℃
13.PCB transverse temperature deviation: ±3℃
14 .Size: 4560x1050x1450MM
15.Weight: 1100KG
The company has set up the equipment exhibition hall in Shenzhen,
welcome the foreign friends to come to visit.
Our service:
1. Quick response within 24 hours.
2. On time delivery.
3. Techinical support before and after sales.
Contact us:
Shirley Xie(Sales Supervisor)
**************************************************************************
SHENZHEN LITUO CHUANG NENG ELECTRONIC EQUIPMENT CO., LTD
Shirley Mobile( Whatsapp): 86 13632687345
Assistant General QQ: 2823023317 wetchat: xst827514933
Tel:0755-27231258-8005 Fax:0755-27231256
Adress:Building 21~22, Ma'anshan second industrial zone, Shajing Street, Ban'an district, Shenzhen
