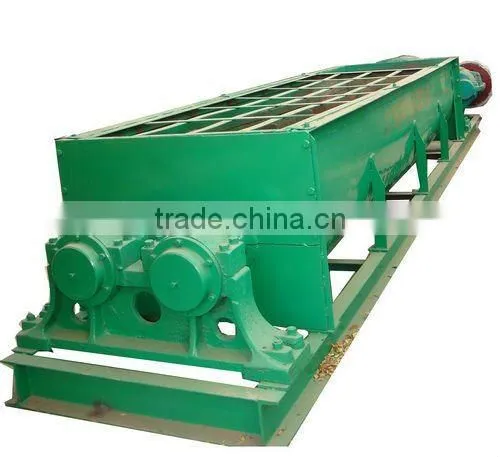

Red Clay Double Shafts Mixer Machine TL-JBJ-290II

Name: Red Clay Double Shafts Mixer Machine TL-JBJ-290II
Brand: TELE
SKU: 104804471
Availability: InStock

US$ 7,000 - 15,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Guangdong, China

Brand Name:

TELE

Foshan Tech-Leader Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

foshan

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Guangdong, China

Brand Name TELE

Model Number TL-JBJ-290II

Motor Power 37KW

Mixing Power 37KW

Charging Capacity 25ton/hr

Reclaiming capacity 20ton/hr

Speed of Mixing Drum 30times/minute

Water Supply Mode automatic

Working Cycle Period 1hr

Discharge Way automatic

Outline Dimension 5100x1700x825

Double Shafts Mixer:

1. Necessary for clay preparation line

2.two shafts separately rotating in opposite directions to treat material

3. manganese steel blades

FOSHAN TECH-LEADER MACHINERY EQUIPMENT CO.,LTD(FOSHAN TELE)
Product
Features of This Type 1. Specially made for the material preparation process with three functions of stirring, mixing with water & kneading. 2. Type TL-JBJ-II or TL-JBJ-IV works by adopt structures of two or four shafts separately rotating in opposite directions to treat the materials. (It is available to add hoppers according to different requirement)
Production Line Clay Material Preparation line: Box feeder+Crusher+Mixer+Granulator
Dimension L x W x H (mm)		Production Capacity (tons / hr)		Stirring Barrel Length (mm)	Motor Power (kw)		Net Weight (kg)
290II	5,100 x 1,700 x 825	15 - 25		3,000	37		≈ 4000

Double Shafts Mixer			Four Shafts Mixer			Mixer Granulator
Company Introduction
Owns over 50 Patents, State High-Tech Enterprises and one of the Intellectual Property Right Pilot Enterprises in Foshan. Continuous innovation in ceramic brick and tiles making machinery including 3 Series production line: Raw material preparation line, Extrusion or press forming line & complete production line for Roofing Tile, Ceramic Plate, Terracotta Panel, Clay Brick, Hollow Brick, Split Tile and so on. Machine structure and technology is Imitating Germany Handle.
