Specifications
Easy-handling, high-efficiency, simple -structured

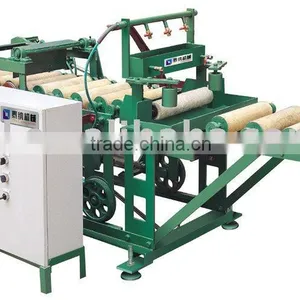

Major Technical Parameters of Auto Horizontal Cutter Type TL-QWJ-A
Dimension L x W x H |
2,140 x 950 x 1,050 (mm) |
Cut Interval/Min. |
20 (times/min) |
To Be Cut Tiles Width (Max.) |
≤320 (mm) |
Main Power |
0.47 (kw) |
Weight |
≈ 200 (kg) |
Standard Set |
Mechanical Jacks System: Roller conveyer frame, Cutter mechanism and Governor etc. Electric Control System: Electric motor & Control cabinet etc. |
|
Features of Type TL-QWJ-A Its way of working is different from the Type TL-QDJ-A or B cutters without turning action but straightforward and cutting, mainly used to form a complete set with the Hydraulic Roofing Tiles Press Type TL-YWJ-100 and TL Vacuum Extruder serials, worked between Extruder and Press to make required length cutting of semi-finished green tiles, which width was formed by mould when extruded, after the continuous clay column being roughly cut, then be transferred and fed manually or automatically to the press to form final tiles. It is necessary in production lines of roofing tiles featured with compact structure, flexible to use and easy to handle. | |
