Introduction:

Organic heat carrier heater boiler (heat conduction oil furnace) can get high temperature under

low working pressure .It can also undertake stable heating and precise humidity control, They

are able to remain at best in all levels of load efficiency, and have a complete operating control

and safety monitoring devices.

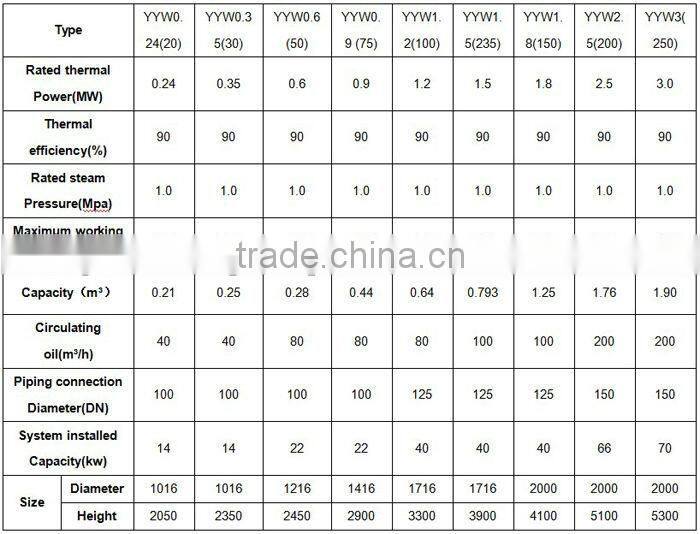

Technical Parameters

What's the Working Process of DIESEL OIL FIRED OIL BOILER ?

1. It is fast-assembly forced circulating oil/gas fired boiler with large heating area and compact

structure.

2. The heating area is formed by the closely arranged coils from the inside, middle and outside

 directions,have 4 pass. The inner coil is radiation heating area. The middle and outside coils and

the the inner coil surface form the convection heating area.

3. The fuel is fired and releases heat in the combustion chamber that formed by inner coils

After taking in most heat through radiation heating area, the high temperature smoke will be

into the convection heating area and exchanges heat.

4. It has the four-return design with high efficiency, which can realize the comprehensive

evenly heating-up with low thermal inertia.

5. The air goes into the boiler from the air inlet of the burner of the boiler’s front part, and then

reaches to the back part and involves into firing through the clamp cover of between the inner

and outside layer of heat-carrier boiler. In this process the air forms into four returns and finally

is injected through the chimney.

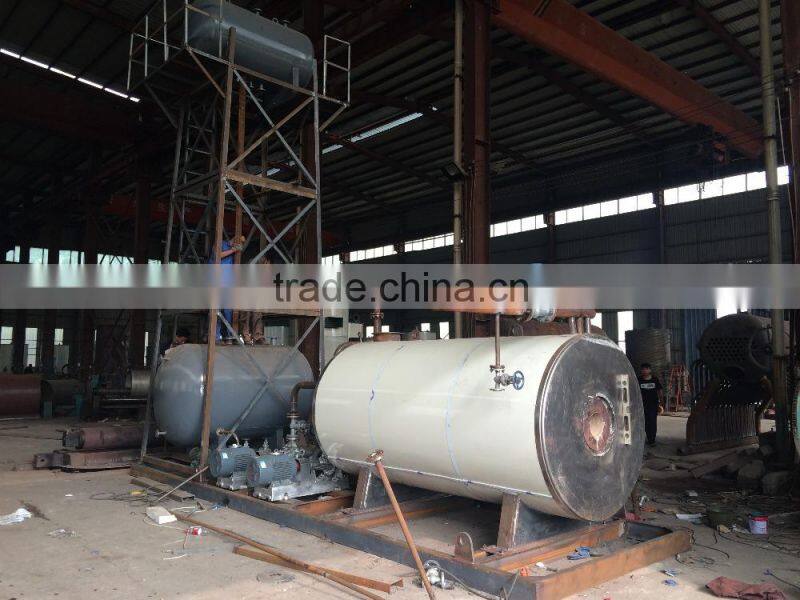

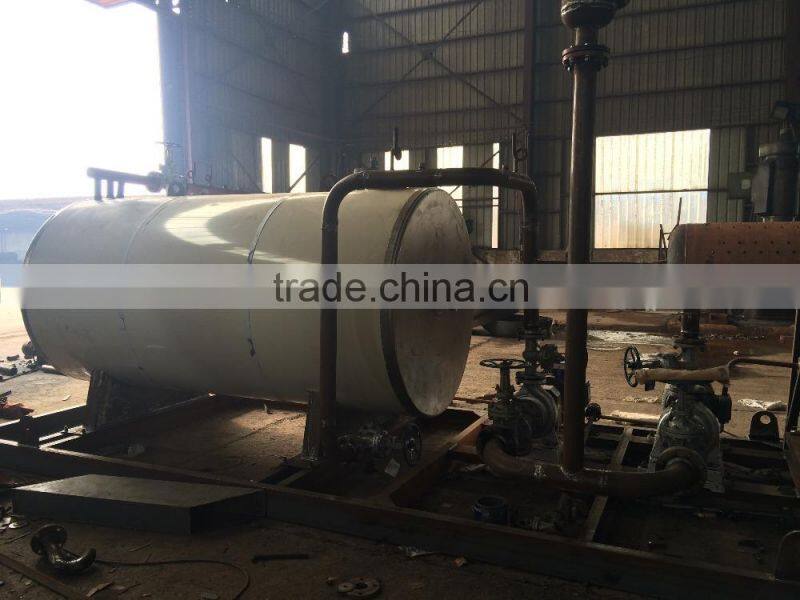

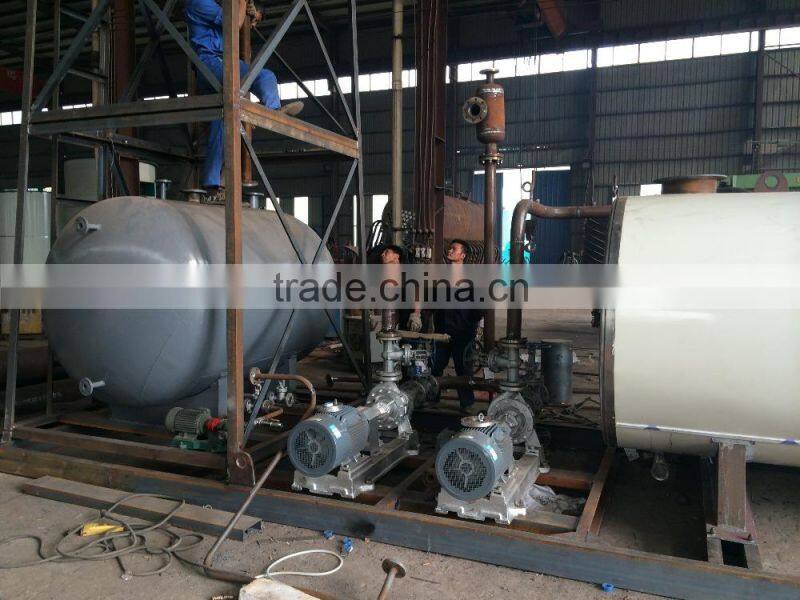

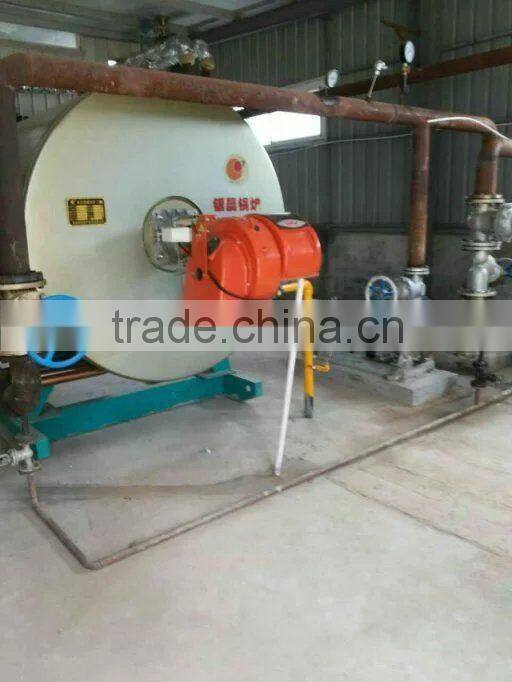

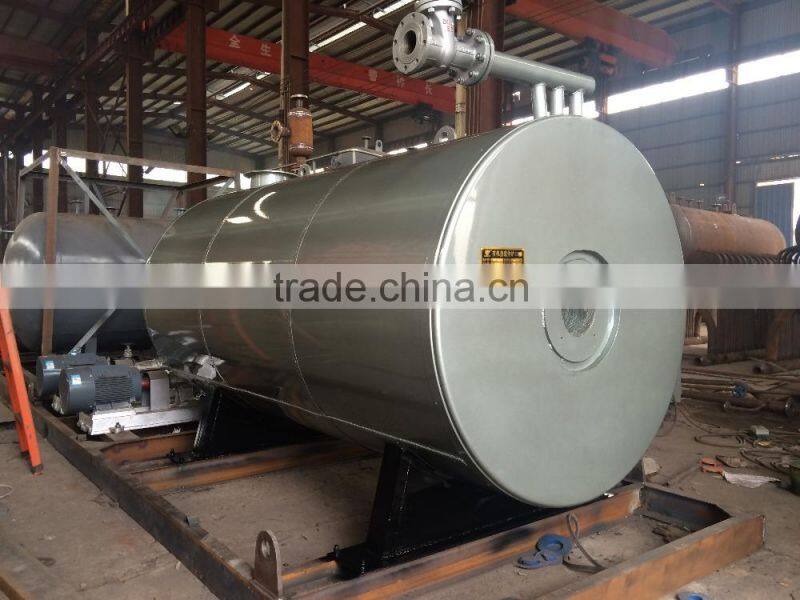

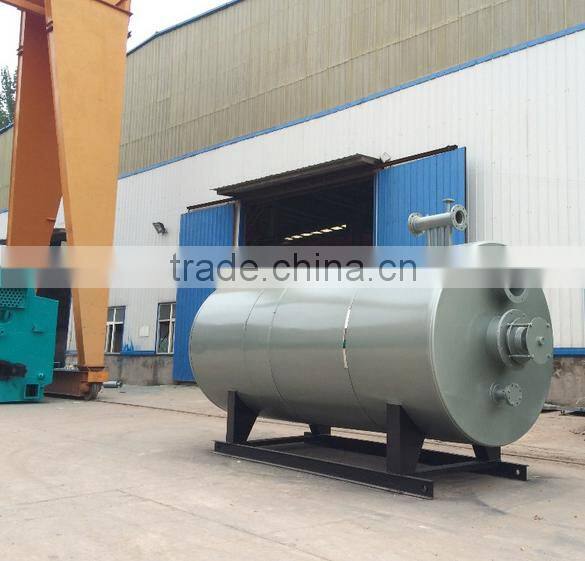

What's the thermal oil heater(HOT OIL BOILER) looks like?

pls click the following photos,you will find other types.

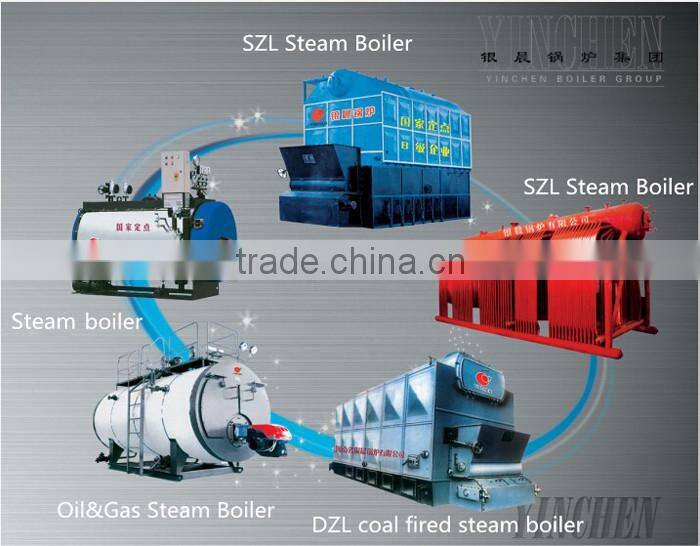

Our main products:


Certifications

All of our products are produced according to the International Quality Standards, such as CE from Europe

and ISO 9001quality management system.

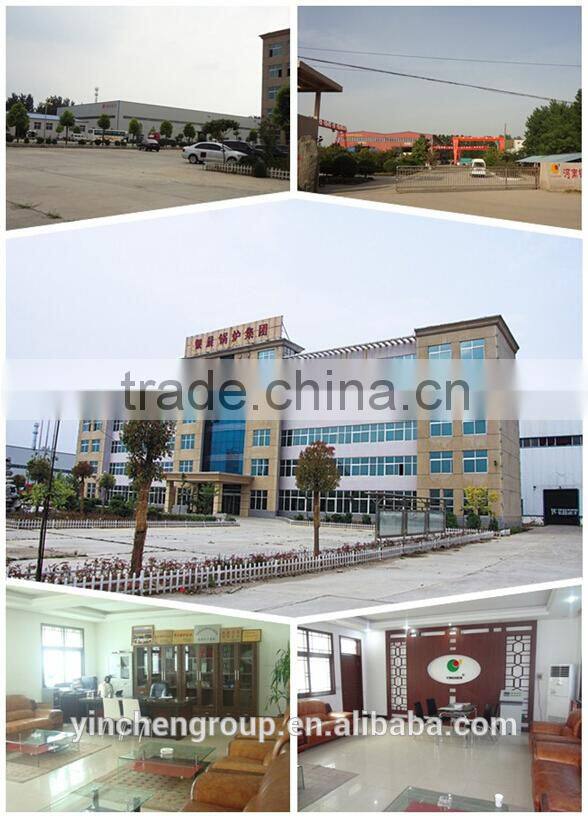

 Henan Yinchen Boiler Co.,Ltd

 1.With "B" class boiler,"D" pressure bessel manufacturing license qualification.

2.Company headquarters covers an area of 60000 square meters,construction area of 4000 square meters.

3.Has 350 employees,technical elite 35 people.senior engineer 10 people,professional and technical personnel

15 people.

Web: http://www.yinchengroup.en.china.cn

Q2: What is the Warranty for the boilers?

3-year warranty with boiler spare parts becasue f quality questions.Boiler body has lifelong warranty period about quality.

 Q3:How about the  installation and commissioning service?

If customers need, our factory can send professional  technician to take chage of  installation and commissioning ,

and also can train your workers to operate the  boielrs.

 Q4: How long should we wait for delivery?

About the  conventional models,we have semi-finished products, so about 15-20 days can finish delivery. Special models

need about 30-40 days.

Q5:What about your payment term?

 Usually it would be 30% deposit payment, 70% balance before delivery. We accept T/T, L/C and other payment way.

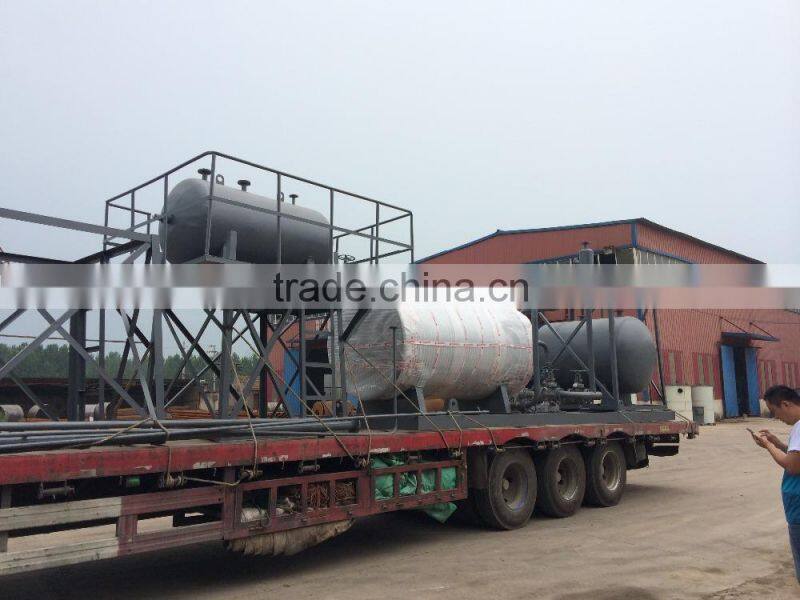

Q6:  How about the boier'spacking and shipment?

Smaller boilers shall be loaded into 1x20 / 1x40HQ general container by sea, while the bigger ones shall be loaded

into flat rack container.No matter which condition, the boielr and spare parts will be fixed well to the container or flat rack

by the professional workers.

Q7: what's your after-service?

When the boiler start to be installed and used in your working , our workers will be always keep in touch with you

to know the boiler's operation condition.when appear questions, we will solve with the clients together within 24 hours.
