AC-DC Rectifier for EPS Power Supply

AC-DC Rectifier for EPS Power Supply thumbnail-1
AC-DC Rectifier for EPS Power Supply photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Output Power:
Other, >500W
Output Type:
Triple
Input Voltage:
380V
Contact Supplier Request Quote Chat Now
Shijiazhuang Tonhe Electronics Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Output Power Other, >500W
Output Type Triple
Input Voltage 380V

Specifications

Patent technology, soft switch intelligent module.Cooling method: natural cooling,small size,light weight high efficiency>95%



Parameter 380V AC input 220V AC input
TH600X03ZZ TH350X03ZZ TH600X02ZZ-220AC TH220X03ZZ-220AC
Input Input voltage 380V AC±15%, 3 phase 380V AC±15%, 3 phase
AC input frequency 45Hz ~ 65Hz 45Hz ~ 65Hz
Efficiency ≥95% ≥95%
Power factor ≥0.93 ≥0.93
Output Output voltage 450-600V 260-450V 450-600V 198-260V
Output current 0.3-3A 0.3-3A 0.15-1.5A 0.3-3A
power (W) 1800 350 900 780
Start delay 3 ~ 8s 3 ~ 8s
Current stabalization ≤ ± 0.5% ≤ ± 0.5%
Ripple ≤ 0.2% ≤ 0.2%
Voltage stabalization ≤ ± 0.5% ≤ ± 0.5%
Inter-rectifier Current sharing imbalance ≤ ± 3% ≤ ± 3%
Cooling method Natural cooling with heat sink Natural cooling with heat sink
Protocal RS485 or RS232 RS485 or RS232
Accoustic noise <50dB <50dB
Protection Multi-protection Multi-protection including input over or under-voltage, output over or under-voltage, over-temperature, reverse connection, phase failure, and short circuit protection. The rectifier will shut down without output, and will return to normal operating after fault is cleared.
Automatic current limiting The output current will keep fixed without increase after it exceed the set point.
Environment Operation ambient temperature -20°C ~ 50°C
Storage temperature -40°C~ 60°C
Relative humidity ≤ 90%
Air pressure 70 ~ 106kPa
Safety Insulation resistance I/O to chassis and input to output >10MΩ (Test voltage: 500Vdc)
Dielectric strength Impose 2000Vdc between I/O and the chassis aftering shorting the input and output for one minutes. No breakdown or flashover
Mechanical Size (H × W × D) mm 218×116×260 355×154×400 218×116×260 355×154×400
Weight 5.2kg 16kg 5.2kg 16kg

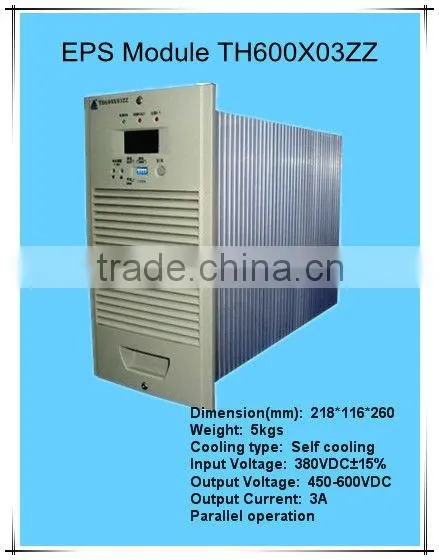

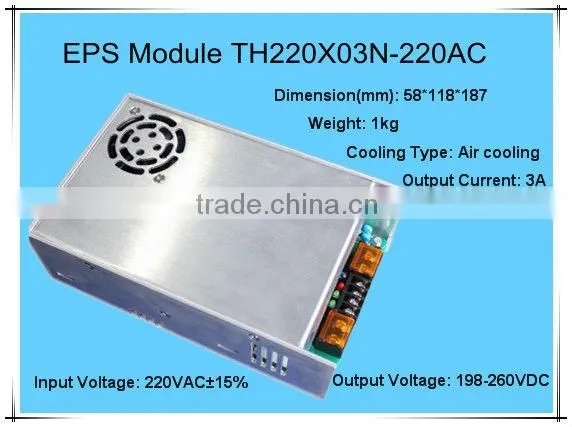

 AC-DC rectifier for EPS power supplyAC-DC rectifier for EPS power supply
