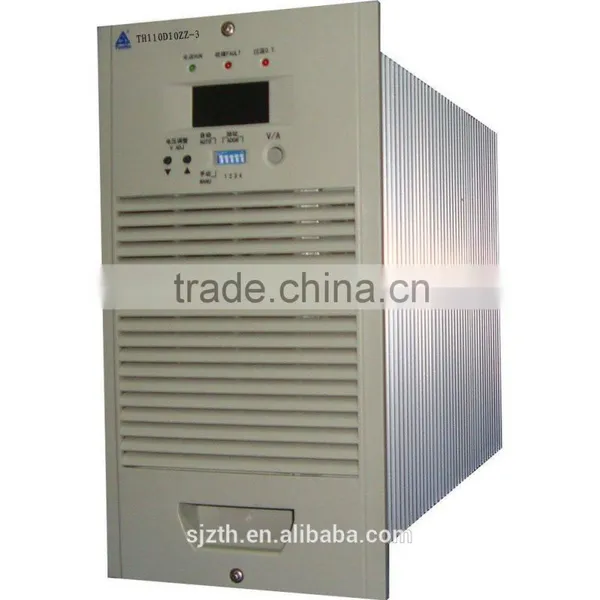

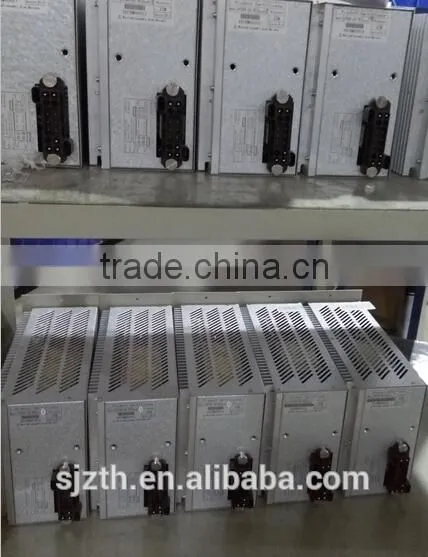

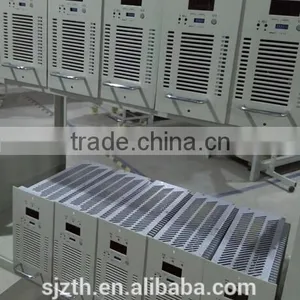

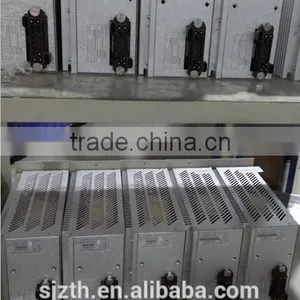

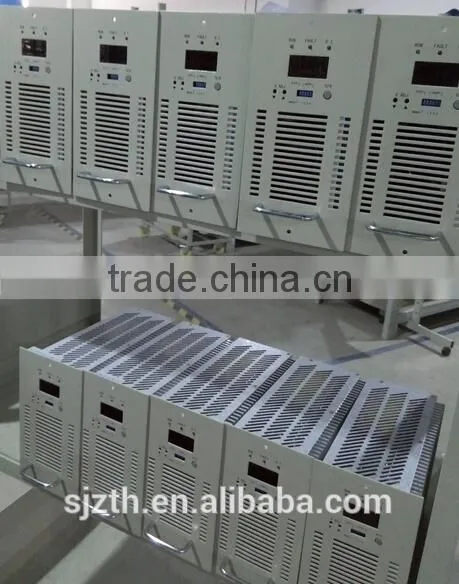

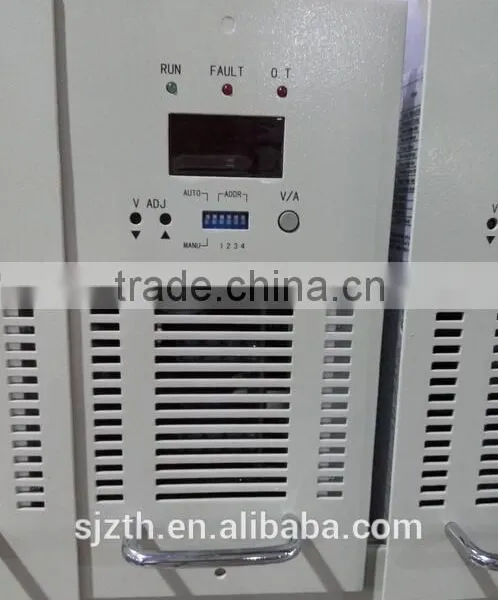

110v DC Power Supply / SMPS / 110v DC Rectifier / 110v Modular Power Spply/ 110v Battery Charger
US$ 160 - 500
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
TonHe
Model Number:
TH110D10ZZ-3 / TH110D20ZZ-3 / TH110D40ZZ-3
Payment & Shipping
Payment Methods:
Port of Shipment:
Any Air port or Sea Port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Solar Panel Charger/rectifier/dc-dcUS$ 900 - 1,100MOQ: 1 Unit -
250V AC-DC Converter / Battery Charger/SMPSUS$ 300 - 800MOQ: 10 Pieces
-
24v 30a Marine Power SupplyUS$ 140 - 150MOQ: 10 Pieces
-
220VDC Smart AC/DC Power SupplyUS$ 5,000 - 5,000MOQ: 1 Set
-
Grid Connected pv Inverter With Efficiency Above 96percentUS$ 800 - 1,500MOQ: 1 Unit
Place of Origin
Hebei, China
Brand Name
TonHe
Model Number
TH110D10ZZ-3 / TH110D20ZZ-3 / TH110D40ZZ-3
Output Power
Other, 1500W-6000W
Output Type
Other, DC
Input Voltage
Other, 220V/380V/400V/415V AC
Output Voltage
88V-150V DC
Output Current
0-40A DC
| Model | 380V AC Input, 110V DC Output Modules | 220V AC Input, 110V DC Output Modules | ||||||
| TH110D10ZZ-3 | TH110D20ZZ-3 | TH110D40ZZ-3 | TH110D10NZ | TH110D20NZ | TH110D10ZZ-220AC | TH110D20ZZ-220AC | ||
| Input | ||||||||
| Input voltage | 380V AC±15%, 3 phase | 220V AC±25%, single phase | ||||||
| AC input frequency | 45Hz ~ 65Hz | 45Hz ~ 65Hz | ||||||
| Efficiency | ≥95% | ≥95% | ||||||
| Power factor | ≥0.93 | ≥0.93 | ||||||
| Output | ||||||||
| Output voltage | 95-150V | 88-150V | 95-150V | |||||
| Output current | 1-10A | 2-20A | 4-40A | 1-10A | 2-20A | 1-10A | 2-20A | |
| power (W) | 1500 | 3000 | 6000 | 1500 | 3000 | 1500 | 3000 | |
| Soft start time | 3 ~ 8s | |||||||
| Current stabalization | ≤ ± 0.5% | |||||||
| Ripple | ≤ 0.2% | |||||||
| Voltage stabalization | ≤ ± 0.5% | |||||||
| Current sharing imbalance | ≤ ± 3% | |||||||
| Cooling method | Natural Cooling with Radiator | Fan Cooling | Natural Cooling with Radiator | |||||
| Protocal | RS485 or RS232 | |||||||
| Accoustic noise | <50dB | |||||||
| Protection | ||||||||
| Multi-protection | Multi-protection and Warning including input over or under-voltage, output over or under-voltage, over-temperature, reverse connection, phase failure, and short circuit protection. The rectifier will shut down without output, and self recoverable. | |||||||
| Current limiting | The output current will keep fixed if it reached the setting value, and will not exceed the setting value. Setting value adjustable. | |||||||
| Ambinet Condition | ||||||||
| Operation temperature | -20°C~50°C | |||||||
| Storage temperature | -40°C~ 60°C | |||||||
| Relative humidity | ≤ 90% | |||||||
| Atmosphere Pressure | 70 ~ 106kPa | |||||||
| Safety | ||||||||
| Insulation Resistance | I/O to chassis and input to output >10MΩ (Test Voltage: 500V DC) | |||||||
| Dielectric Strength | Impose 2000V DC between I/O and the chassis after shorting the input and output for one minute, no breakdown or flashover. | |||||||
| Physical Features | ||||||||
| Size (H × W × D) mm | 218×116×260 | 263×139×325 | 355×154×400 | 195×91×303 | 195×91×303 | 218×116×260 | 263×139×325 | |
| Weight | 5.2kg | 9kg | 16kg | 5kg | 5kg | 5.2kg | 9kg | |
