24v 30a Marine Power Supply

24v 30a Marine Power Supply thumbnail-1
24v 30a Marine Power Supply photo-1
US$ 140 - 150 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Tonghe
Model Number:
TH24C30N-220AC
Contact Supplier Request Quote Chat Now
Shijiazhuang Tonhe Electronics Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
beijing tianjian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name Tonghe
Model Number TH24C30N-220AC
Output Power Other, >500W
Input Voltage 220V
Output Voltage 20-30V
Output Current 30(20/10)A

Specifications

1. used in distribution room
2. size: 68*242*138mm
3. nominal output: 24vdc
4. output current:30a

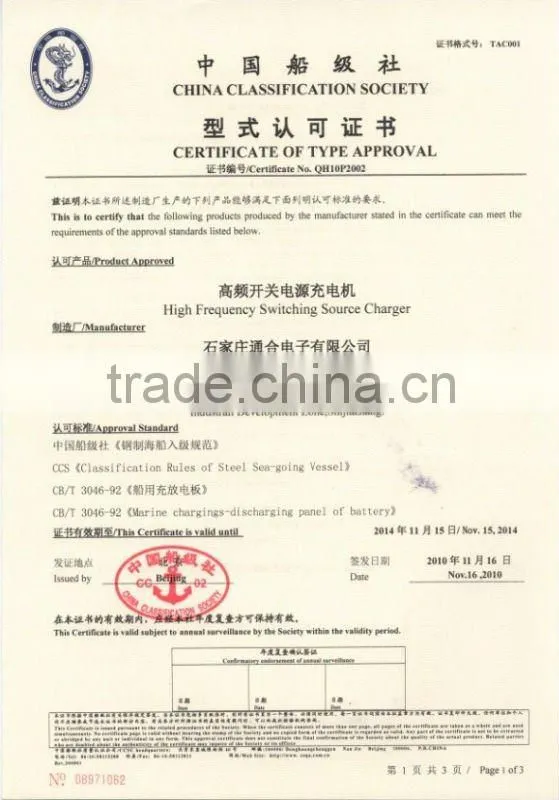

5. CCS certificate



                               24V DC Power Supply

Parameter  TH24C60NZ TH24C40NZ TH24C60NZ-220AC TH24C40NZ-220AC TH24C30N-220AC TH24C20N-220AC
Price USD (FOB) $475 $380 $475 $380 $240 $160
Mechanical

Size

 (H × W × D) mm

 85×325×265 85×325×265 85×325×265 85×325×265 68×242×138 68×242×138
Weight 8kg 8kg 8kg 8kg 1.8kg 1.8kg
Input Input voltage 380V AC±10%, 3 phase 220V AC±15%, single phase
AC input frequency 45Hz ~ 65Hz
Efficiency ≥90%
Output Output voltage 17-33V 17-33V 20-30V 20-30V 20-30V 20-30V
Output current 6-62A 4-42A 6-62A 4-42A 3-32A 2-22A
power (W) 2000W 1400W 2000W 1300W 900W 600W
Start delay 3 ~ 8s
Current stabalization ≤ ± 0.5%
Ripple ≤ ±1%
Voltage stabalization ≤ ± 0.5%
Inter-rectifier Current sharing imbalance ≤ ± 5%
operating mode Manual/Float charger/Equalizing charge Manual
Cooling method Fan cooling
Protocal RS485 or RS232
Accoustic noise <50dB
Protection Multi-protection Multi-protection including input over or under-voltage, output over or under-voltage, over-temperature, reverse connection, phase failure, and short circuit protection. The rectifier will shut down without output, and will resume to work after fault is cleared.
Automatic current limiting The output current will keep fixed without increase after it exceed the set point.
Ambient conditions Operation ambient temperature -20°C ~ 50°C
Storage temperature -40°C~ 60°C
Relative humidity ≤ 90%
Air pressure 70 ~ 106kPa

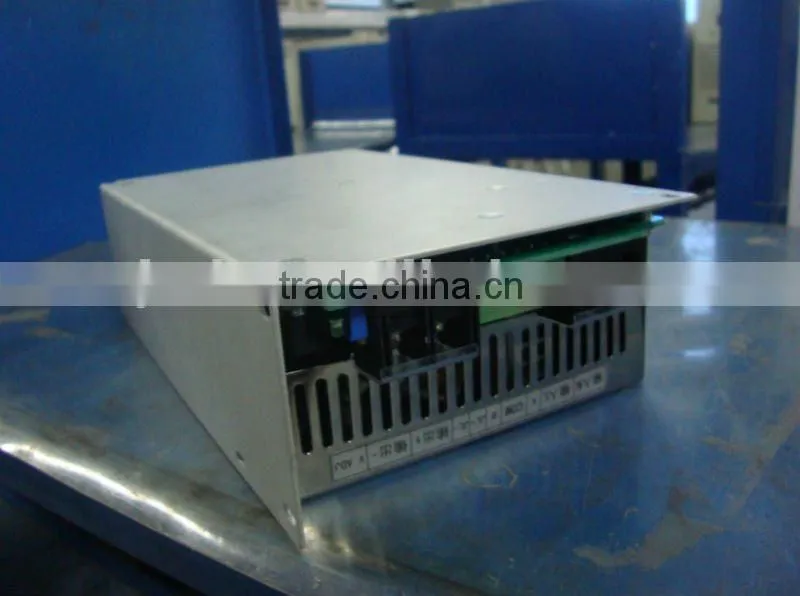

24v 30a marine power supply

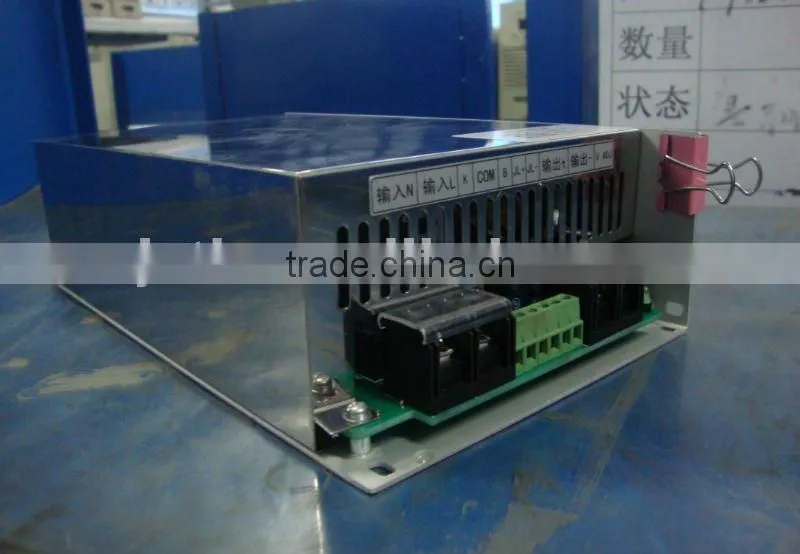

24v 30a marine power supply



24v 30a marine power supply



Input port definition



No.

Definition

function

1

L

Input 220VAC

2

N

Input 220VAC



Output port definition

No.

Function

N

Input zero line

L

Input live wire

K

Fault normally open contact

B

Fault normally close contact

COM

Fault node common port

JL+

For module parallel operation

JL-

For module parallel operation

potentiometer

For manual voltage regulation

+

Power output+

-

Power output-
