Multi-Funcational Dual shaft Mixer DSM-100

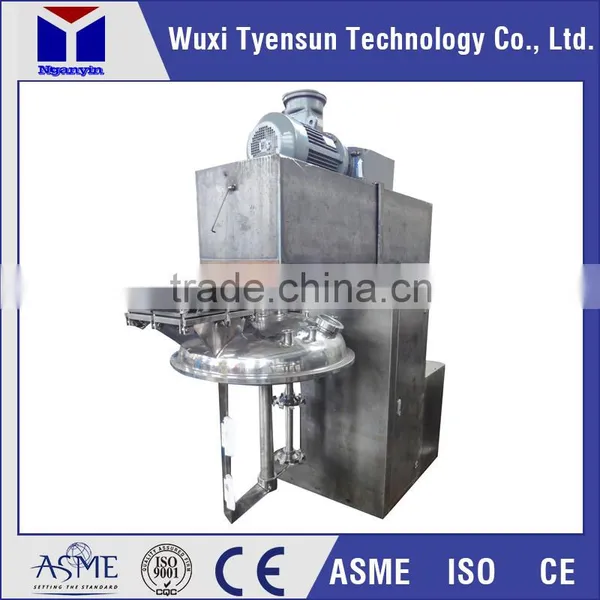

Dual Shaft Multi-Functional Mixer is a new developed powerful dispersing and mixing machine based on hydraulic lifting single shaft mixer. It can be divided into dispensable dual shaft and coaxial dual shaft according to the dual shaft coaxial or not; this machine is specially suitable for mid-and-high viscosity material and thixotropic material, many agitator patterns for option, usually has anchor type, butterfly type, frame type etc., can disperse and mix at the same time, with strong adaptability, can be customized according to different property and production process of the material.
Production Capacity: 50-10000L
Applicable Materials:
Materials shall be with viscosity less than1,000,000cps, various slurry with solid content under 80%such as putty, printing ink, structural adhesive, anaerobic adhesive, suspension concentrate,etc..

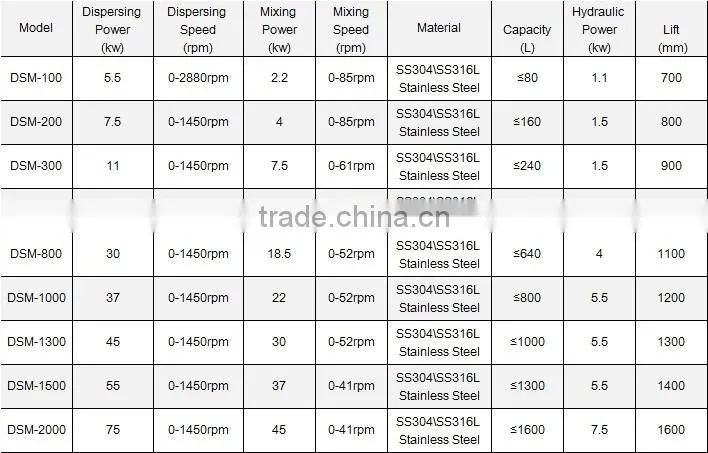

Technology parameter:
Remarks:
1. The above listed Max. processing capacity is data designed in the reference of the viscosity values by 50,000 cps; The calculating of model selection should be based on the materials viscosity, characteristics etc.
2. If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc; detail data is required for correct model selection.
3. If any change in the above table, subject shall prevail without notice.
4. The table cannot include all products, please contact with our sales engineers for more information.
Custom designs are also available.
