Specifications

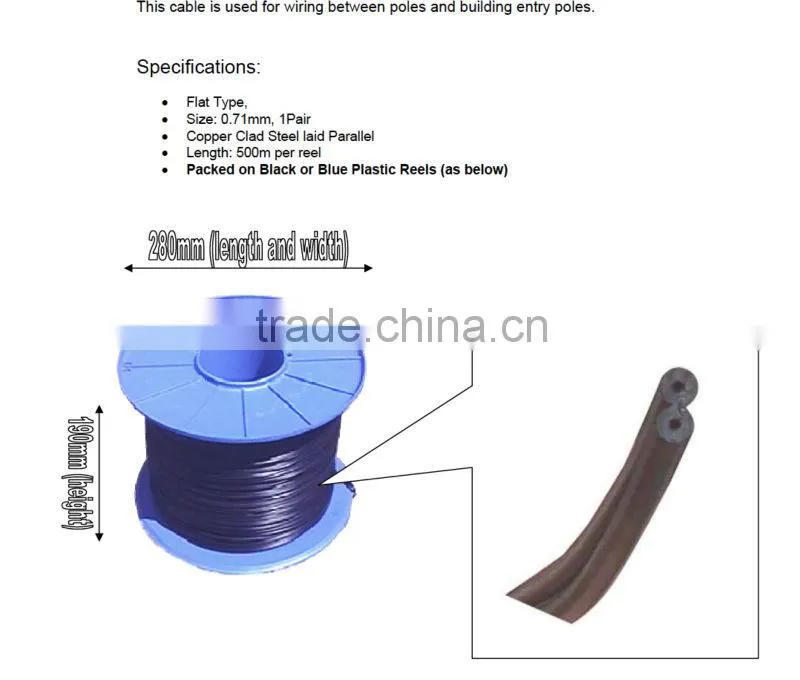

0.7mm 1 pair parallel wire ccs copper clad steelpper clad steel
2.lay parallel
3.500 meter/reel

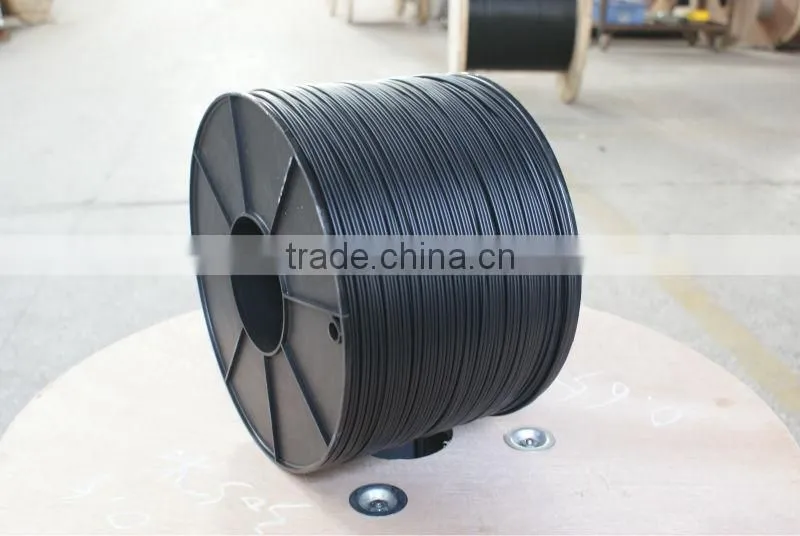

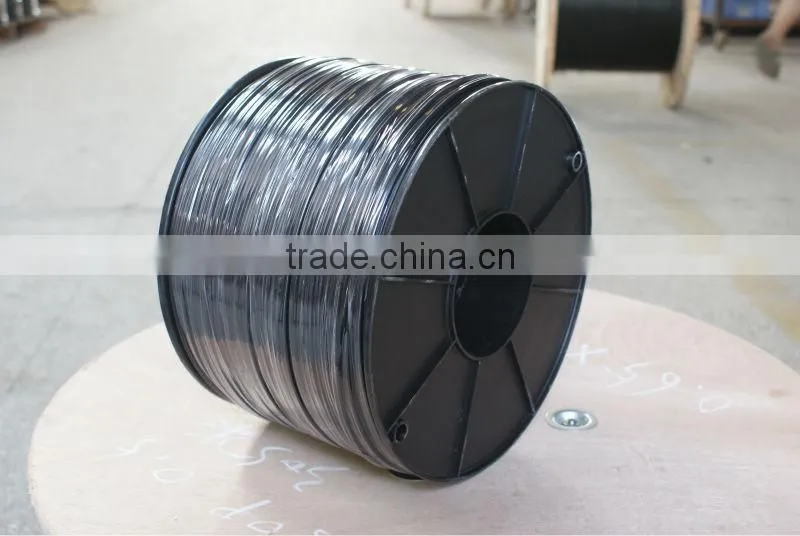

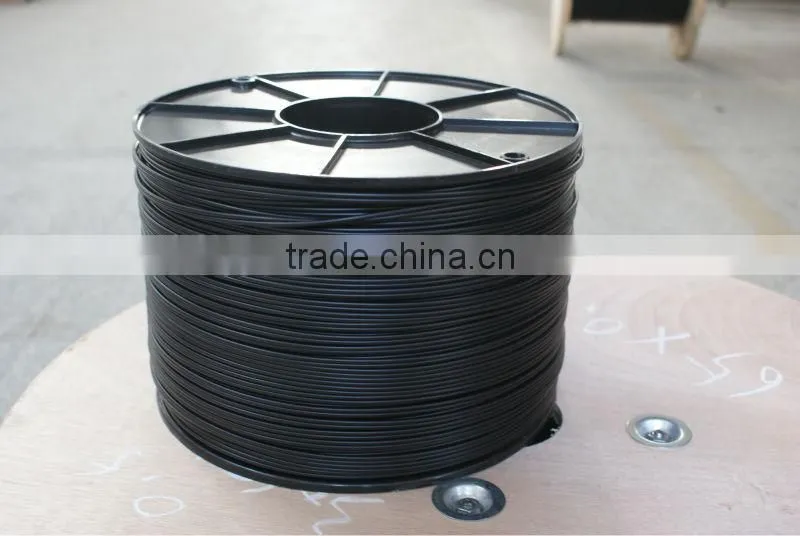

0.7mm 1 pair parallel wire ccs copper clad steel
Product Description
C-Rural Wire is quickly and easily installed, utilizing standard hardware and installation procedures for single circuit aerial distribution rural networks
Specifications
Conductor Solid 30% conductivity copper- covered steel
Insulation
Black polyolefin compound extruded over the two conductors in parallel to form an integrated oval configuration
Standards Compliance
Telcordia TA-TSY-000125
RoHS-compliant
Part Numbers and Physical Characteristics | ||||||
Dimensions | ||||||
Part Number |
AWG (mm) |
Minor in (mm) |
Major in (mm) |
Approx. Weight lbs/kft (kg/km) |
Standard Length ft (m) |
Package |
10-026-06 |
14 (1.63) |
0.15 (3.8) |
0.28 (7.1) |
36 (54) |
1,000 (305) |
Coil |
10-016-06 |
14 (1.63) |
0.15 (3.8) |
0.28 (7.1) |
36 (54) |
5,500 (1676) |
Wooden reel |
10-116-06 |
14 (1.63) |
0.15 (3.8) |
0.28 (7.1) |
36 (54) |
22,000 (6,705) |
Four 5,500' reels on a pallet |
10-096-06 |
14 (1.63) |
0.15 (3.8) |
0.28 (7.1) |
36 (54) |
19,000 (5791) |
Steel reel |
