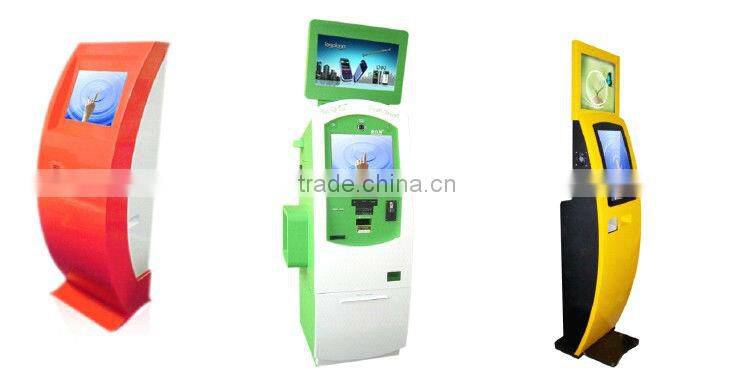

Touch Screen Free Standing Kiosk/Coupon Machine

Touch Screen

Specification:

Light Transmittance:100%

Resolution:4096 X 4096Scan

Speed:50 scans/s

Touch body: any body at least 5mm(Including finger & pen)

Response Speed: less than16ms

Durability: Over 60.000.000touches in one location.

Vanda proof: a 1.04kg steel ball falling from 1m height to screen without broken.

All control was completed on the touch surface

Handwritten text, drawings, filling come true easy

Working Temperature:-40degree to 70degree

Easy installation: USB or RS232 ports connect with PC to start work.

High stability, Longtime used will not affect the accuracy of touch performance.

Completely closed design and set up completely without routine maintenance.

Electrical Part

Working voltage: DC5V ± 5%

Power supply: external power supply

Power: Less than 2W

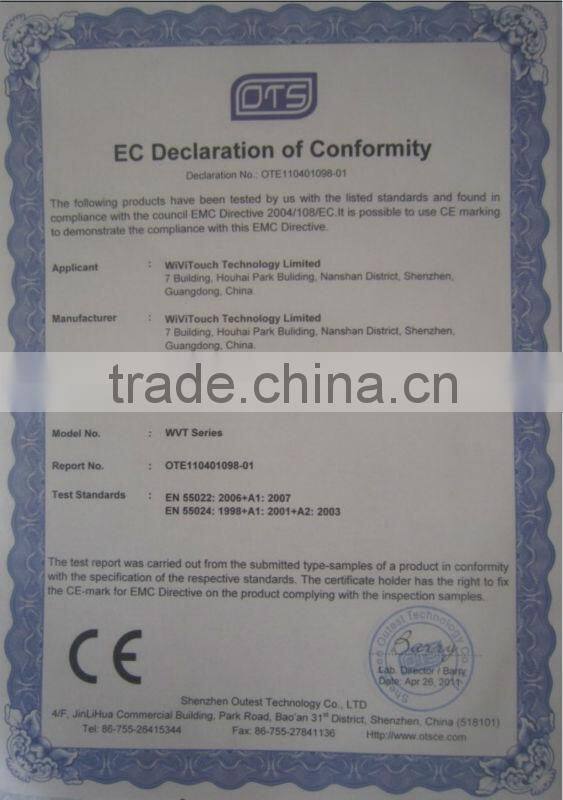

Electromagnetic compatibility: CE, ROHS passed

Noise: no

The applicable operating system: Windows7,Windows2000, XP, 2003, Linux

Communication: USB or RS232

Environmental Part

Operating Temperature: -40 degrees to +70 degrees

Storage temperature: -40 degrees to +85 degrees

Operating Humidity: 20% to 85% (no condensation)

Storage Humidity: 20% to 95% (no condensation)

Light Immunity: resistance to interference of light (100,000 lux)

Drift: No drift, does not vary with changes in the environment.

Lifespan:7 years

Display Device

SAMSUNG MONITOR

View Area:15"

Pitch: 0.264mm

Light: 300cd/m2

Contrast: 800:1

View Angle: 160degree/160degree(T/B)

Response Time: 5ms

Maximum Resolution: 1920*1080

Vertical scanning frequency: 56-75HZ

Color: 16.7M

Horizontal scanning frequency: 30-83HZ

100% no dead pixels

Cabinet Description

* Using integrated, modular overall structure design, it suit for ergonomic design

* Elegant and dignified appearance, streamlined shape, modern and fashion

* Surface treatment: Painting with imported car Metal paint. Various colors available.

* Easy to operate and maintain, powerful functions, flexible configuration to your needs. The kiosk can be configurated to your needs by adding many optional devices, such as bar-code scanner, the Laser or thermal printer for Ticket .Insert or swipe card reader,64 bit or 1ubit Keyboard, fingerprints reader etc

* Steady performance and low-cost maintenance, better quality compare to the like products;

* Host body has independent exhaust fan

* Get the power and then plug and play so no need to install and debug on the spot.

Inner electromechanical equipment

AV: Power AMP. ,2*5W sound box, internal magnetic mode

Heat elimination: built-in 12V fan with good effect.

Network Interface:RJ45 eight core wire communicate interface.

Reset switch: No need to disassemble the Cabinet, press the External reset switch conveniently and quickly.

Power-Supply: Built-in outside lead of the power and socket

Working environment: Temperature 0°C-45°C Humidity 30%-90%

Working Voltage:AC220V±10 50HZ±1

PC

Original: Intel E5500 2.8Mhz CPU LGA775 Socket

Main board: ASUS Original Kingston DDR3 2GB RAM, Original West digital HDD 320G SATA

Intel GMA X4500HD graphics, Integrated Sound Card with amplifier and concealed speakers

Remarks: Host configuration can be changed according to customer requirements! (Can be self-made)

Fingerprint Reader

Preparation for Digital Personal Module UareU 4500 fingerprint reader (Does not include the reader)

Package

Special design fixed foam, Carton box, Wood case
