Beijing Golden Eagle Electronic Equipments Co.,Ltd is located in Beijing, the capital of China. Be working in photo chemical etching for more than ten years, we advance by special experience and continual reseach works. We can supply whole processing equipments and support with whole processes technique training. Maily used In metal etching,PCB etching ,FPC etching,precision parts etching,flexible Dies & hot stamping dies etching,nameplate & signs etching, decoration plate etching and so on. Material can be stainless steel,copper,brass,aluminum,zinc,magnesium and so on. the past ten years, we sold variety of etching machines to USA,UK,Europe,Middle East,Africa, Australia and many other countries.

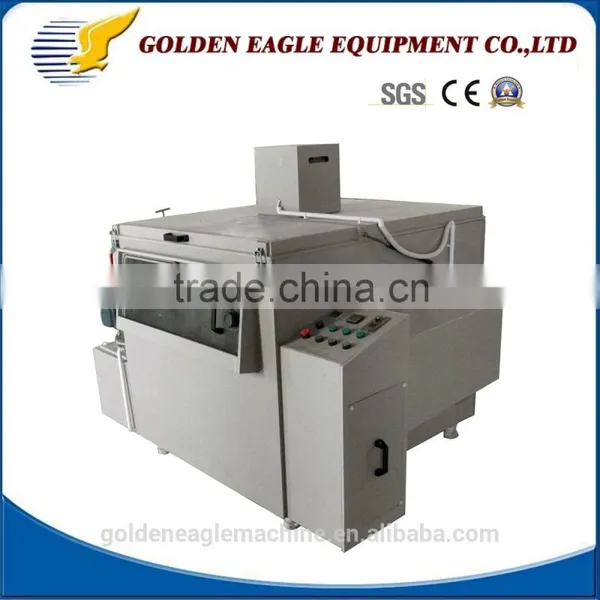

DB5060 Stencil Die Cutting Etching Machine
Technical parameters:
Power |
7.5KW/380V |
Working Size |
500*600mm |
Working Temperature |
50~60°C |
Heat System |
Titanium |
Cool System |
Titanium Pipe |
Motor power |
4KW/380V |
Machine Size |
1950*1350*1550mm |
Weight |
About 550kgs |
Automatic Control System:
- Speed adjust system
- Etching times Control System
- Temperature control system
- High temperatures resist (0~100°C)PP material
- Long times Etching Ability
Introduction:
- This etching machine is photoengraving machines for Steel or high-carbon steel plate mold pretreating etching to advance following engraving processing.
- After etching down, the cutting knife-edge left, then use CNC engraving to sharp the Knife.This works is easy and fast. And can save lots of unnecessary cost if use CNC engraving to working completely

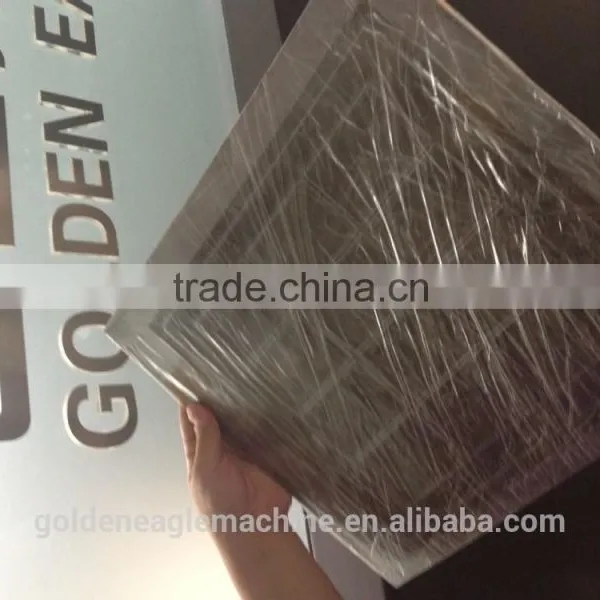

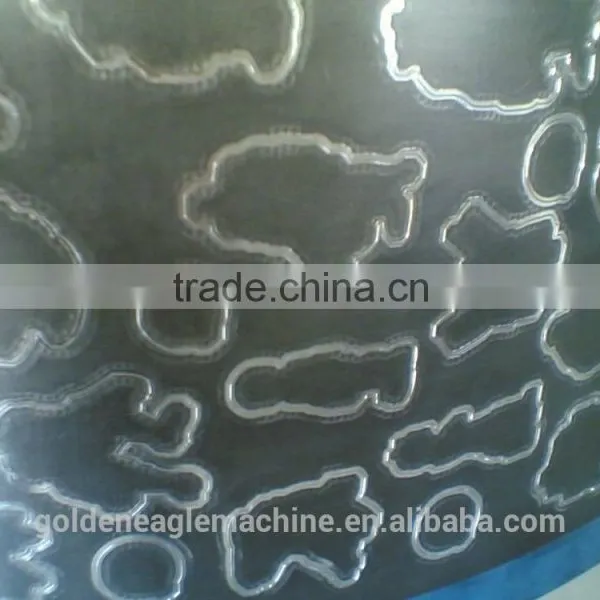

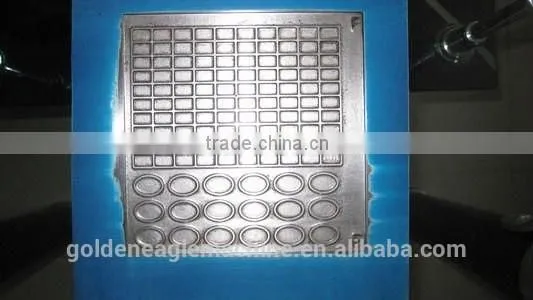

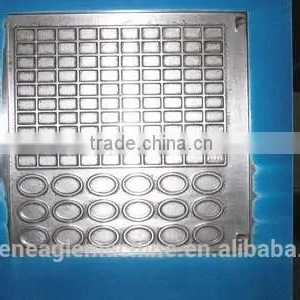

Samples:
- Wooden case
- 15~20 Days
- Engineers availbal to service machinery overseas.
- 10-hours online sevirce from Monday to Friday.
- Customized design is available.
- Master operator training program for free.
- Reasonable and negotiable price,short lead time.
- We also provide CNC cutting dies engraving machine.
