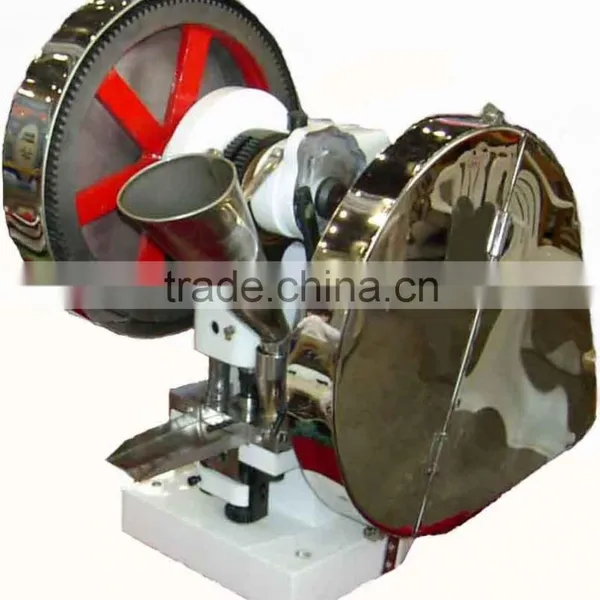

Single Punch Tablet Press Tdp-1.5
US$ 760 - 1,180
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
minhua
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Pressure Flower Tablet Press MachineUS$ 1 - 2MOQ: 1 Set -
Rotary Tablet Press Zp10-12US$ 3,680 - 3,780MOQ: 1 Set
-
TDP-1.5 Series Single Punch Tablet PressUS$ 720 - 760MOQ: 1 Set
-
YDP-25 Single Punch Tablet PressNegotiableMOQ: 1 Set
-
Single Punch Tablet Press YDP-25US$ 5,780 - 6,000MOQ: 1 Set
Condition
New
Place of Origin
Shanghai, China
Brand Name
minhua
Model Number
TDP1.5/5/6
Type
Other, Single Punch, Tablet Pressing Machine
Production Capacity
5000 pc/h
Max. Pressure(KN)
220V
Max. Tablet Thickness(mm)
10-12mm
Max. Tablet Diameter(mm)
25mm
Voltage
220V
Power(W)
1100W
Weight
150KGS
Dimension(L*W*H)
580x600x700mm
Certification
ISO
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.single punch tablet press2.TDP-6 max 25mm
3.widely use in the mini factory
This machine is designed for pressing tablets from various granular materials,which is used for pharmaceutical,chemical,food, hospital,science research institution is applicable to trial manufacturing in lab or produce in small amount different kinds of tablet, sugar piece, calcium tablet and tablet of abnormal shape.It features a small desktop type press for motive and control sheeting.It can also be hand -operated easy to be operated and maintained ,small volume, light weight. one set of punch and de is mounted the depth of the filling material tablet press and thickness of the tablets can be adjusted
high precision of filling, low-noise, low-consumption of material, and it works smoothly. The minimum consumption of lab material is just 200g.
It is a good machine designed for the lab used for research and for development in hospital and industry and for small-scale production.
Teachnical parameter
TDP-1.5, TDP-5,. TDP-6,
ITEM |
TDP-1.5 |
TDP-5 |
TDP-6 |
Max. Pressure(KN) |
15 |
50 |
60 |
Max. Dia of Tablet(mm) |
12 |
20 |
25 |
Max. Depth of Fill(mm) |
12 |
18 |
16 |
Max. Thickness of Tablet(mm) |
6 |
6 |
10 |
Production Capacity(PC/h) |
5000 |
5000 |
4000 |
Motor |
550w1400r/min |
750w1400r/min |
1100w1400r/min |
Machine Size(mm) |
570x380x630 |
650x440x650 |
580x600x700 |
Net Weight(Kg) |
92.5 |
125 |
160 |
