Home > Manufacturing & Processing Machinery > Pharmaceutical Equipment & Machinery > Pharmaceutical Tablet Equipment > Rotary Tablet Press Zp-19

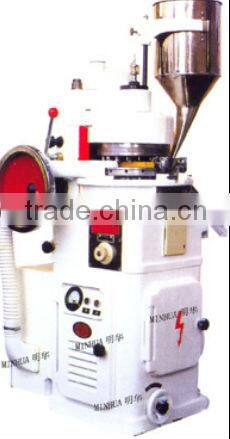

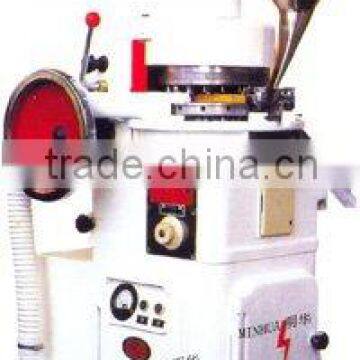

Rotary Tablet Press Zp-19

Name: Rotary Tablet Press Zp-19
Brand: minhua
SKU: 104708495
Availability: InStock

US$ 1 - 2 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

minhua

Contact Supplier Request Quote Chat Now

Minhua Pharmaceutical Machinery Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shanghai, China

Brand Name minhua

Model Number zp-19

Type Other, Rotary Tablet Press, Tablet Pressing Machine

Production Capacity 45000 pc/h

Max. Pressure(KN) 60KN

Max. Tablet Thickness(mm) 6mm

Max. Tablet Diameter(mm) 18mm

Voltage 220

Power(W) 2200

Weight 560

Dimension(L*W*H) 760x750x1550

Certification ISO

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.rotary tablet press
2.max diameter 18mm
3.60KN
4.paint machine

Descriptions

This machine is suitable for pressing round tables from various kinds of granular materials ,specially for small-scale batch production and dies ,so 15-19 tablets will be pressed for each revolution of the turret .During

Operation ,the speed of the turret rotation ,the depth of filling material and the thickness of tablets unit will present punches and apparatus from overload damage .A powder collect unit is attachment to take in the residual powder during operation .so that the blockage by the residual powder can be eliminated and the collected powder material can be reused.

Technical Parameters

ITEM	TYPE
ITEM	ZP15	ZP17	ZP19
Dies	15sets	17sets	19sets
Max. Pressure	60KN	60KN	60KN
Max. Dia of Tablet	26mm	20mm	13mm
Max. Depth of Fill	15mm	15mm	15mm
Max. Thickness of Tablet	6mm	6mm	6mm
Turret Speed	20-30 r/min	22-35 r/min	22-44 r/min
Production Capacity	27000 pc/h	36000 pc/h	45000 pc/h
Motor	3KW	2.2KW	2.2KW
Overall Size	760×750×1550mm
Net Weight	570kg	560kg
