Help CenterAutomatic Powder Filling Machine DHS-2B-103
Related Products
Specifications
It is a complete, economical solution to your filling production line requirements. Can measuring and filling powder and granuleDescriptions:

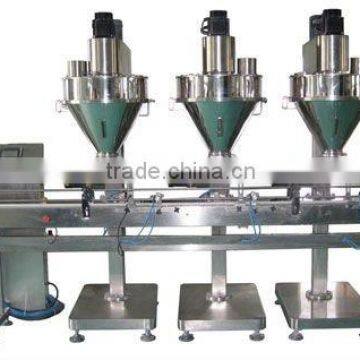

The Model machine is a complete, economical solution to your filling production line requirements. Can measuring and filling powder and granule. It consists of the Three Filling Heads, an independent motorized chain conveyor mounted on a sturdy, stable frame base, and all necessary accessories to reliably move and position containers for filling, dispense the required amount of product, and then quickly move the filled containers away to other equipment in your line (e.g., cappers, labelers, etc.).It fits more to the fluidic or low-fluidity materials, like milk powder, albumen powder, solid drink, white sugar, dextrose, coffee, fodder, pharmaceuticals, agriculture pesticide, granular additive, dyestuff, and so on.
Features:
l Stainless steel structure; the quick disconnecting hopper could be washed easily without tools.
l Servo motor drive screw.
l PLC, touch screen and weighing module control.
l To save all products’ parameter formula for later use, save 10 sets at most.
l Replacing the auger parts, it is suitable for material from super thin powder to granule.
l Include handwheel of adjustable height.
Technical Parameters:
Metering Mode |
Directly dosing by auger |
Filling Weight |
10 ~ 2000g |
Filling Accuracy |
≤ 100g, ≤±1.5%; 100 - 500g, ≤±1%; 500 - 2000g,≤±0.5% |
Filling Speed |
above 70 bottles/min |
Power Supply |
3P /208 - 415V 50/60Hz |
Total Power |
4.8KW |
Air Supply |
6kg/cm2; 0.2m3/min |
Total Weight |
800Kg |
Overall Dimensions |
3750×970×2100mm |
Hopper Volume |
45L |
Optional device:
l Leakproof acentric device
l Pneumatic flap
l Dust collecting cover
l Level Split hopper
l Can lifting device
l Online weighing system
