CH10--CH200 Type Mixer

CH10--CH200 Type Mixer thumbnail-1
CH10--CH200 Type Mixer photo-1
US$ 1 - 13 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Minhua
Model Number:
CH10--CH200
Contact Supplier Request Quote Chat Now
Minhua Pharmaceutical Machinery Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name Minhua
Model Number CH10--CH200
Application Granules
Type Other, Mixing Machine, Mixing Machine

Specifications

1.Pharmaceutical Mixer
2.It is easy to clean

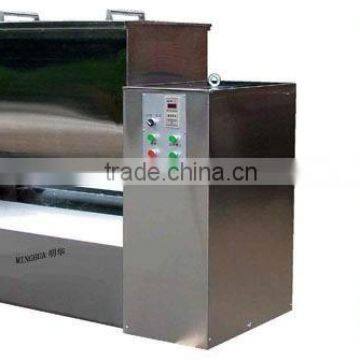

CH10--CH200 Trough type mixing machine is designed for thoroughly mixing powders or pastes. It is a horizontal trough type mixer with single stirring arm. The stirring arm is removable so that is easy to clean. The part is surfaces which may touch the mixing materials are made of stainless steel, So they are good corrosion - resistant ,the mixing trough can automatically reverse for discharge and the missing time can be automatically controlled.
CH10A--CH200A Trough type mixing machine is designed on the base of the former CH10--CH200. The configuration employ stainless steel that is easy to clean and maintaining and meet GMP standard



ITEM

TYPE



CH10

CH50

CH100

CH150        CH200



Trough capacity L

10

50

100

     150          200



Mixing arm speed r/min

25

24

24

24           24



Mixing periods

5~20

5~20

5~20

            5~20



Main motor kw

Y06324 0.25KW

Y90S-4  1.1KW

Y100L1-4 2.2KW

Y100L-4 3KW  Y112L-4 4KW



Tilting motor kw

Hand

Y802-6 0.75KW

Y802-6 0.75KW

Y802-6 0.75KW



Overall dimensions mm

600×280×450

920×420×820

1100×440×900

1400x600x1100  1400x600x1200



B type size

600×280×500

920×420×820

1100×440×900

1370x650x1100 1370 x 650x1100



Weight kg

40

200

250

750         800





Specification

CH-100

CH-150

CH-200

CH-400

CH-600



Working volume (L )

100

150

200

400

600



Motor power (Kw)

2.2

3

4

5.5

11



Stirring rotating speed (r/min)

24



Feeding angle(degree)

105

105

105

105

105



Weight kg

400

500

6

700

900



Overall dimension mm

1400x580x1000

1600x600x1050

1870x650x1065

1400 x 750 x 1100

2600x 800 x 120
